Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector

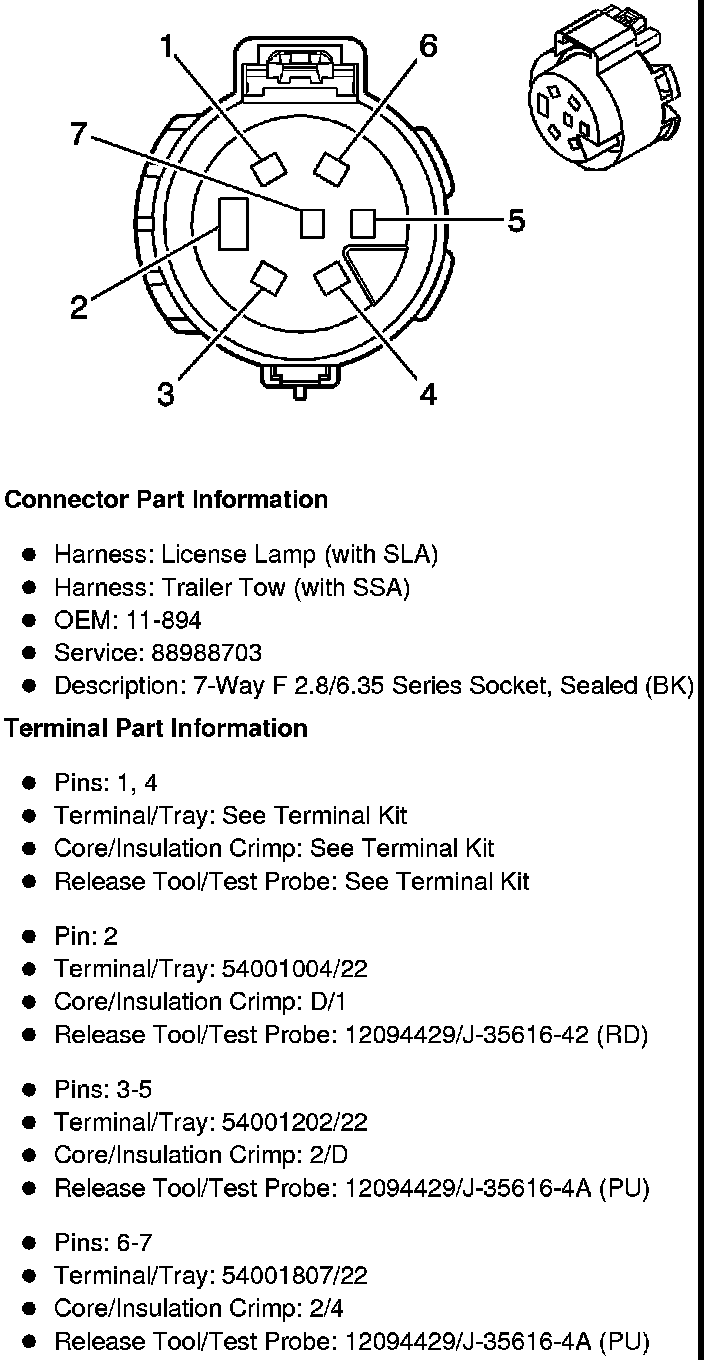

Trailer Connector
Component Connector End Views

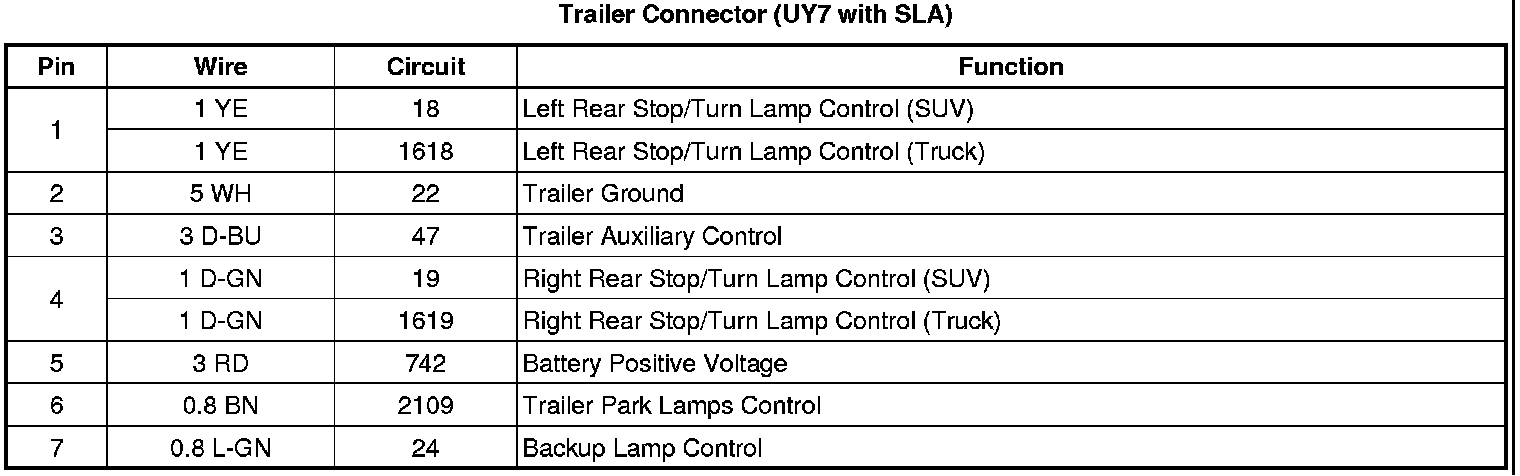

Trailer Connector
(UY7 with SLA)

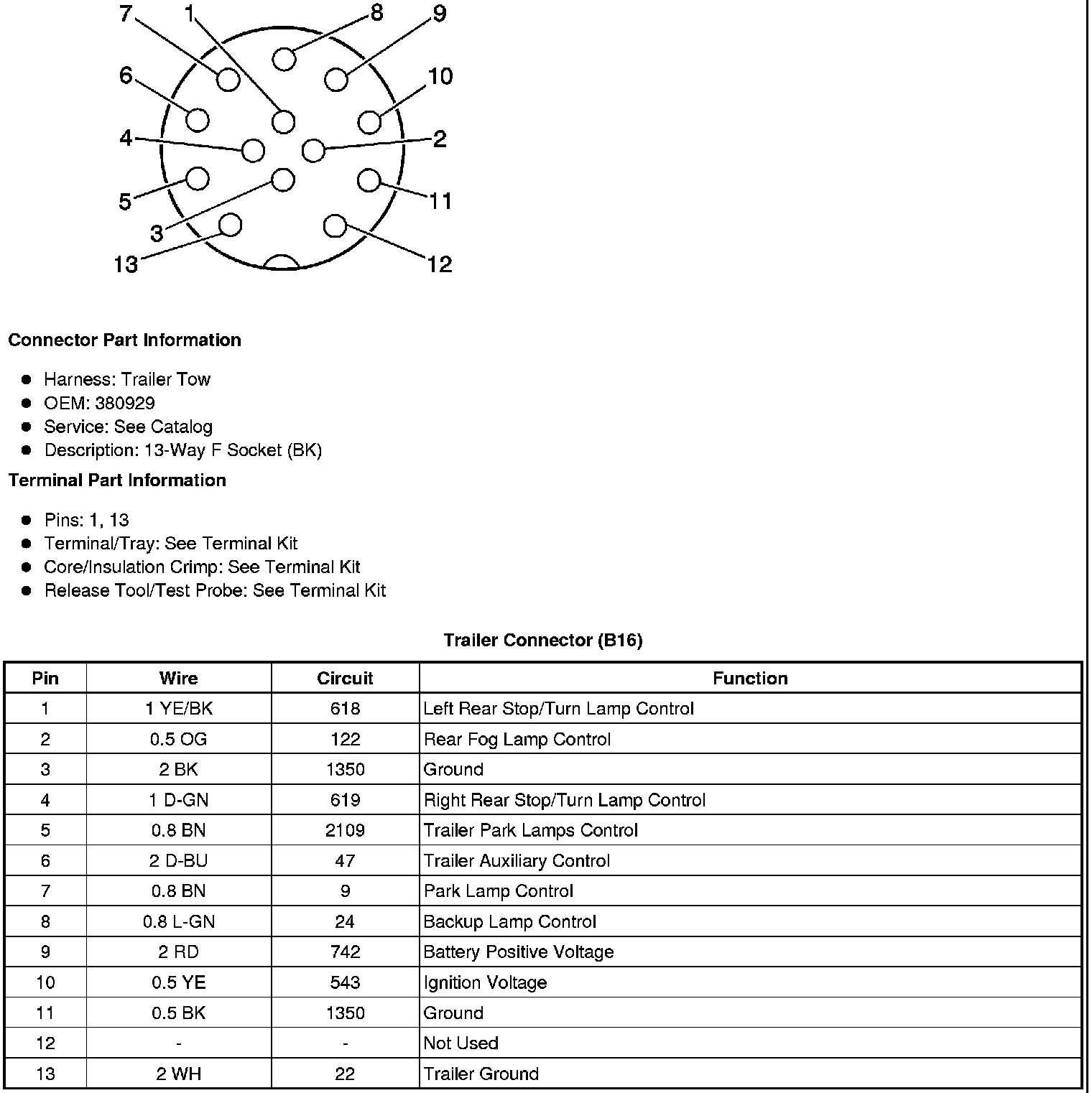

Trailer Connector
(B16)
