Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shifter A/T

Shifter A/T




Component Connector End Views

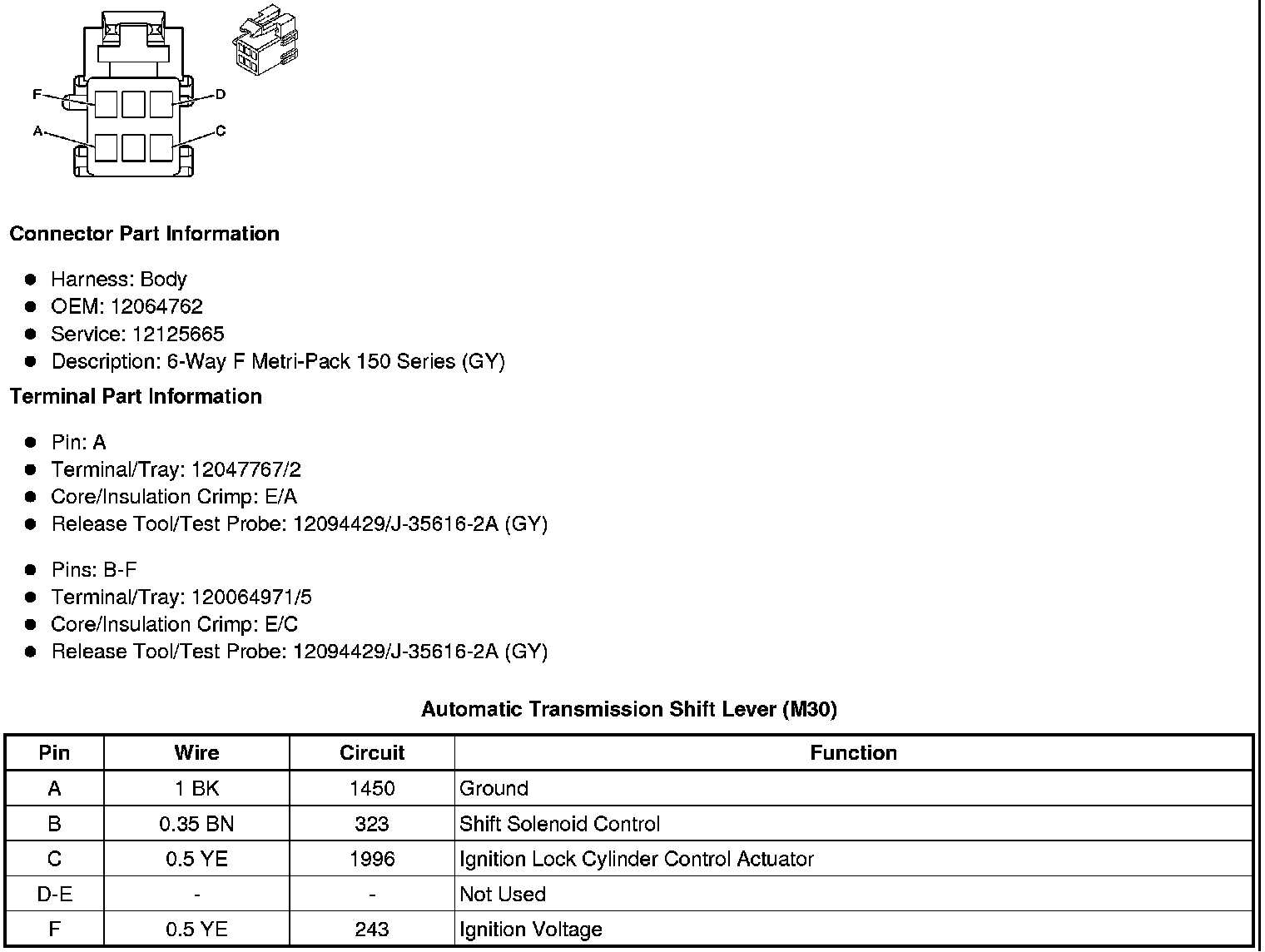

Automatic Transmission Shift Lever (M30)
