Seat Temperature Control Module

Component Connector End Views

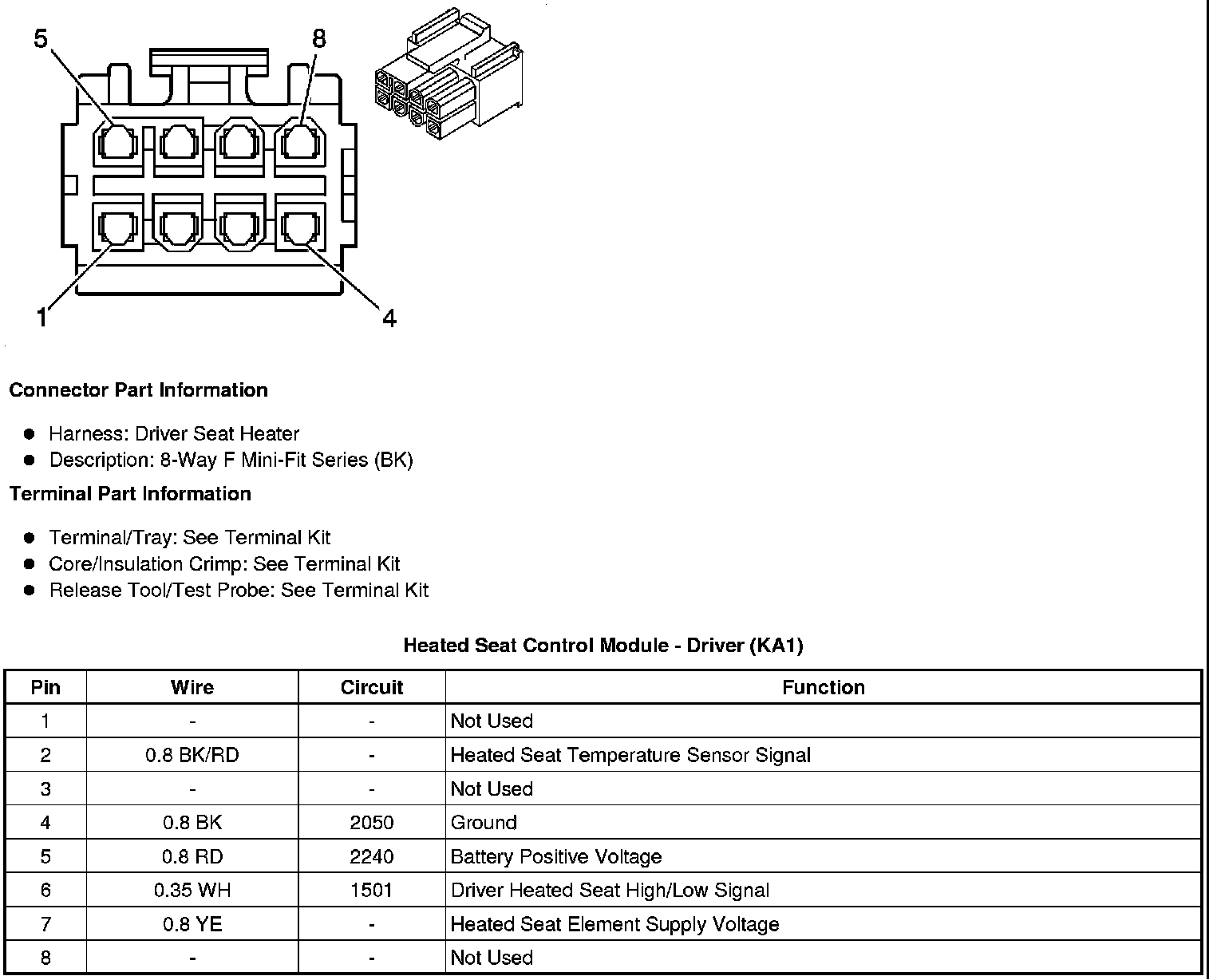

Heated Seat Control Module - Driver (KA1)

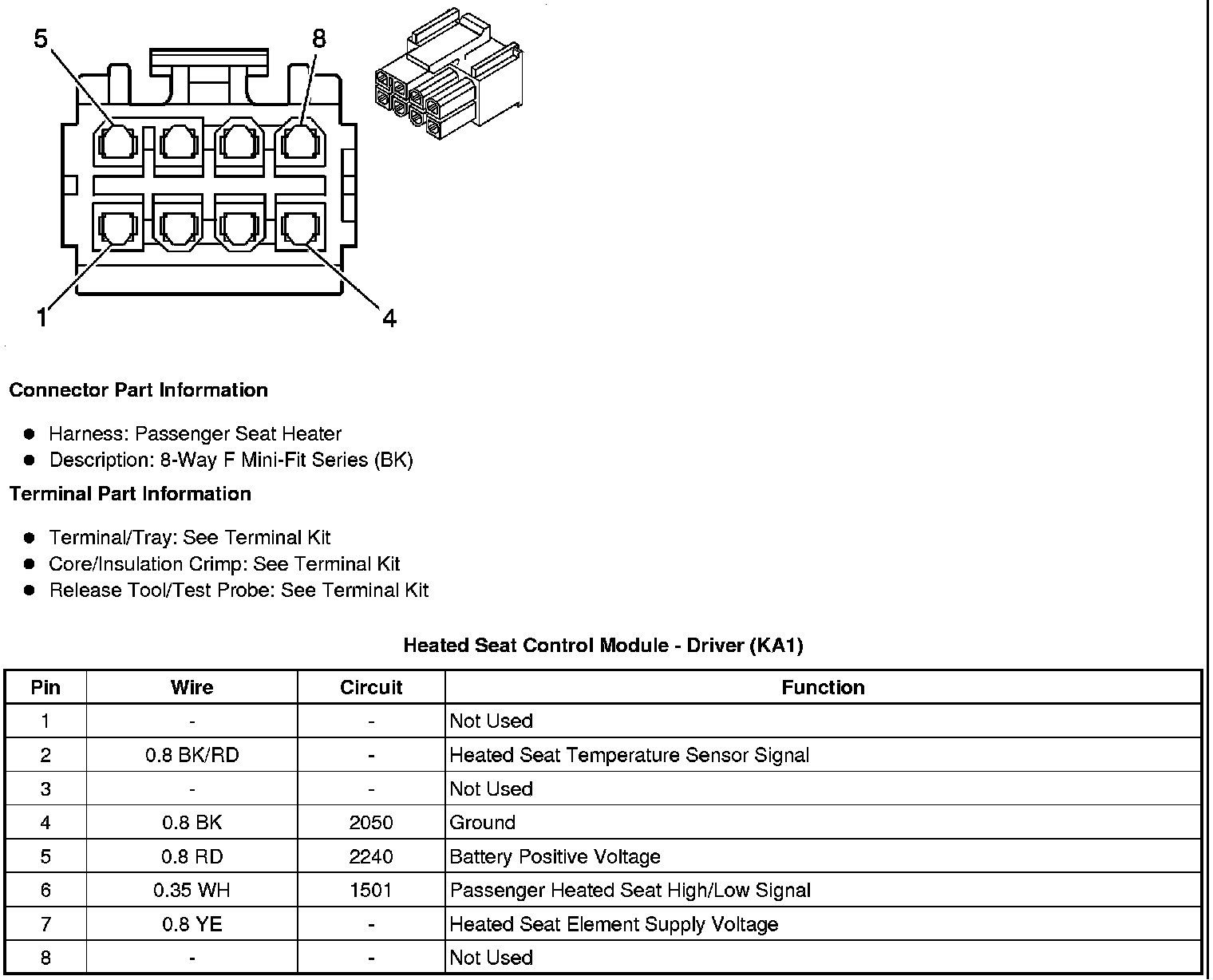

Heated Seat Control Module - Passenger (KA1)
