Radio/Stereo
Radio/Stereo
Component Connector End Views

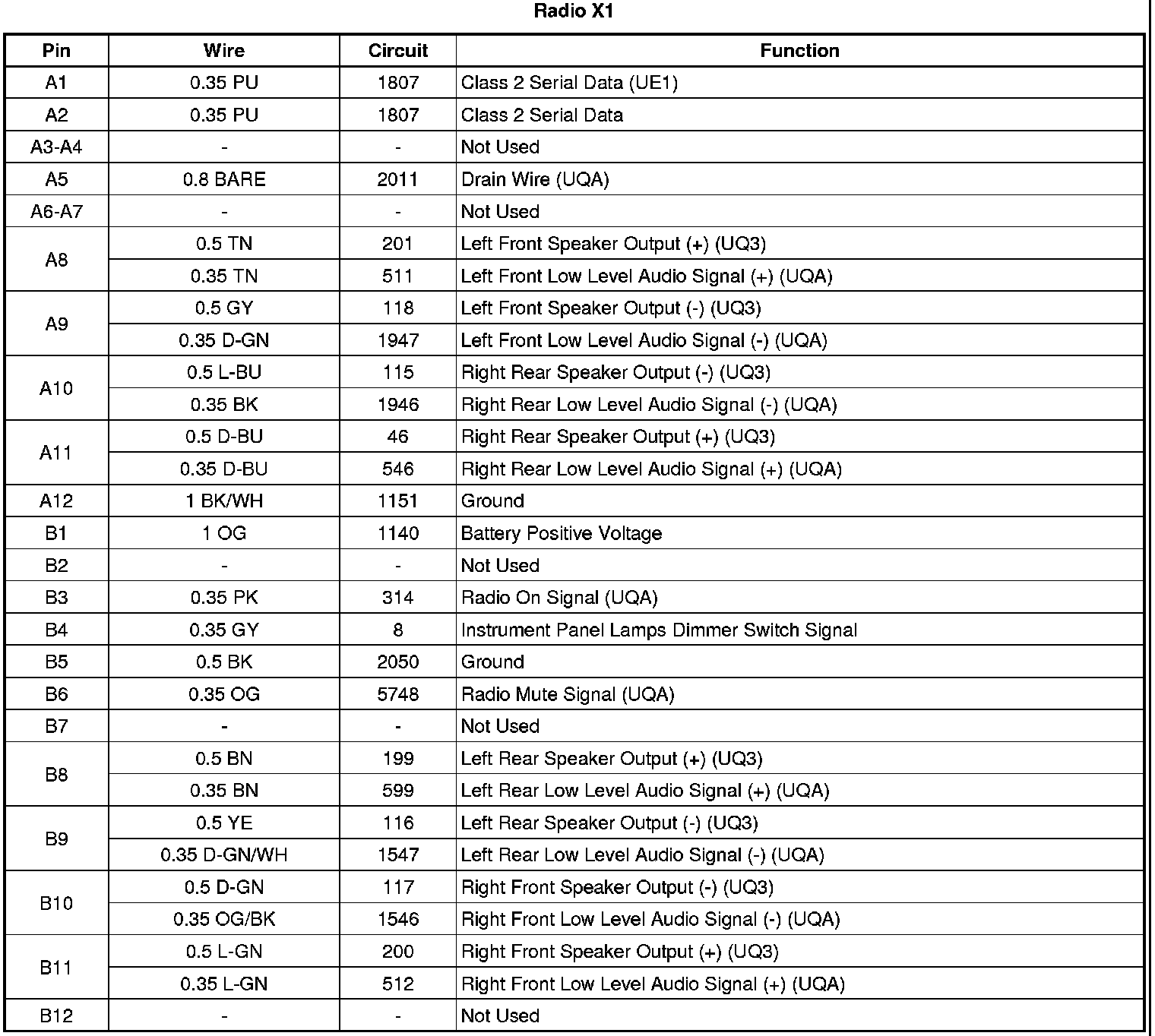

Radio X1

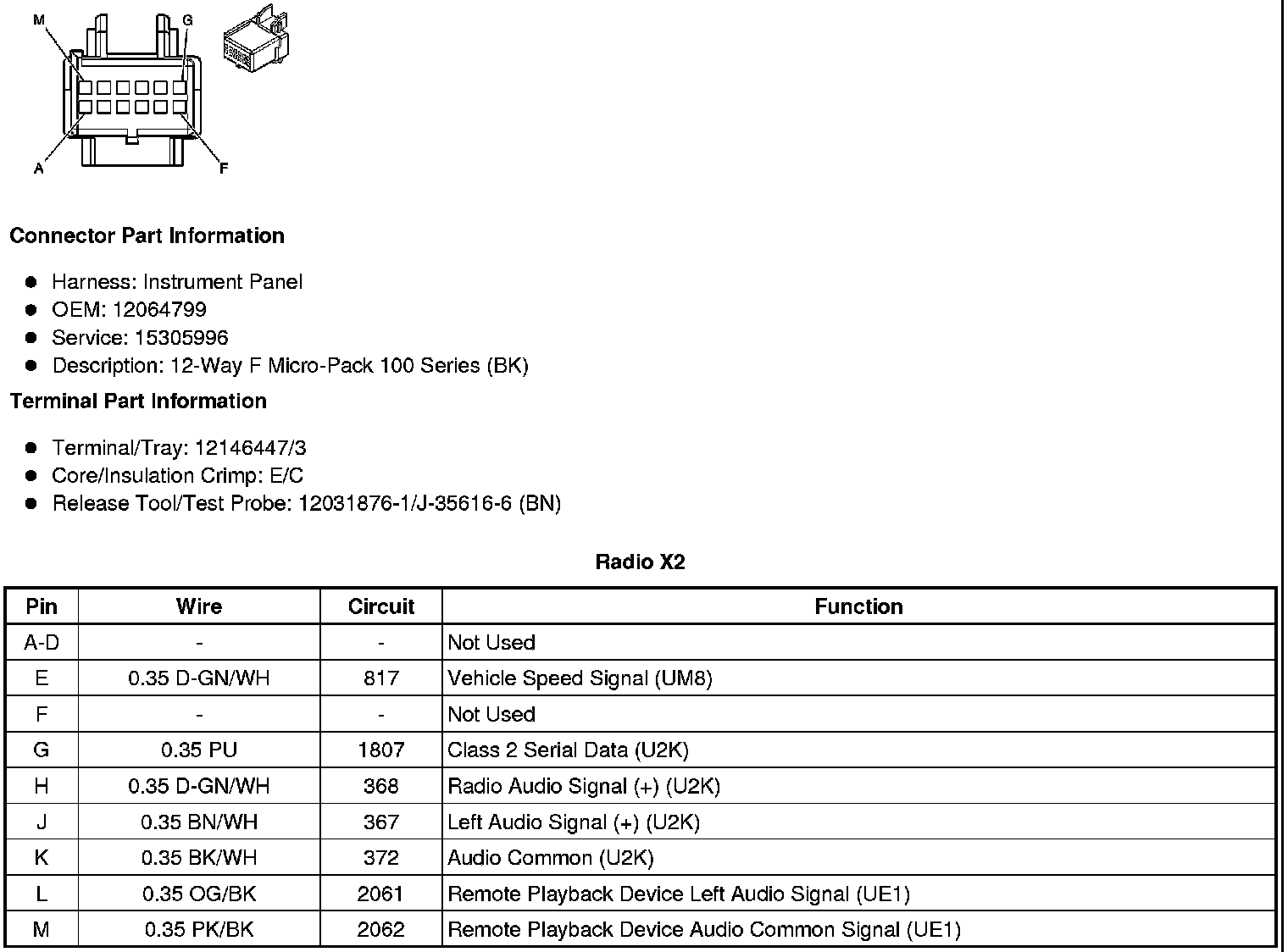

Radio X2

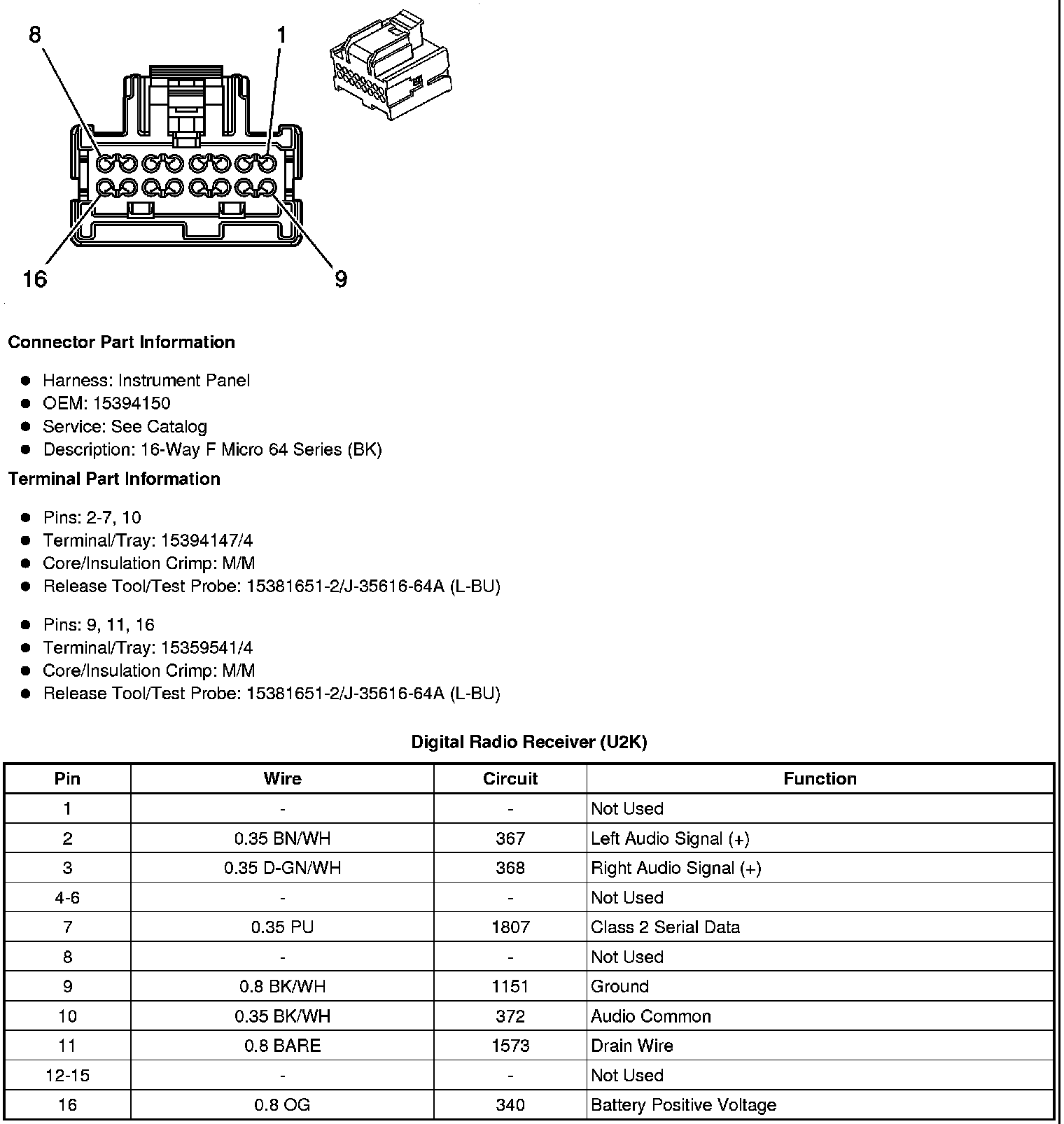

Digital
Radio Receiver
(U2K)
