Hummer
>>
2009
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
System Diagram
Component Connector End Views

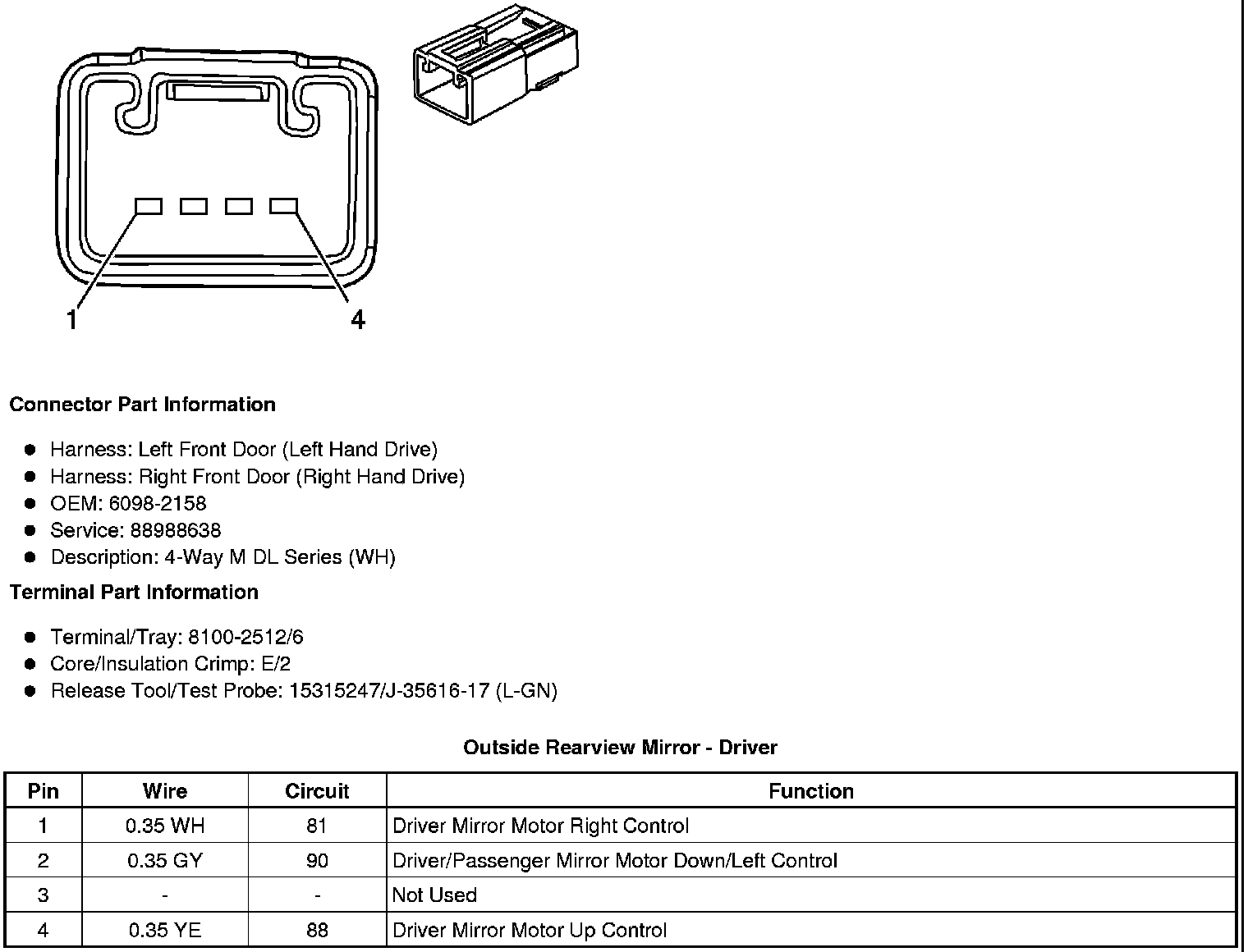

Outside Rearview Mirror - Driver

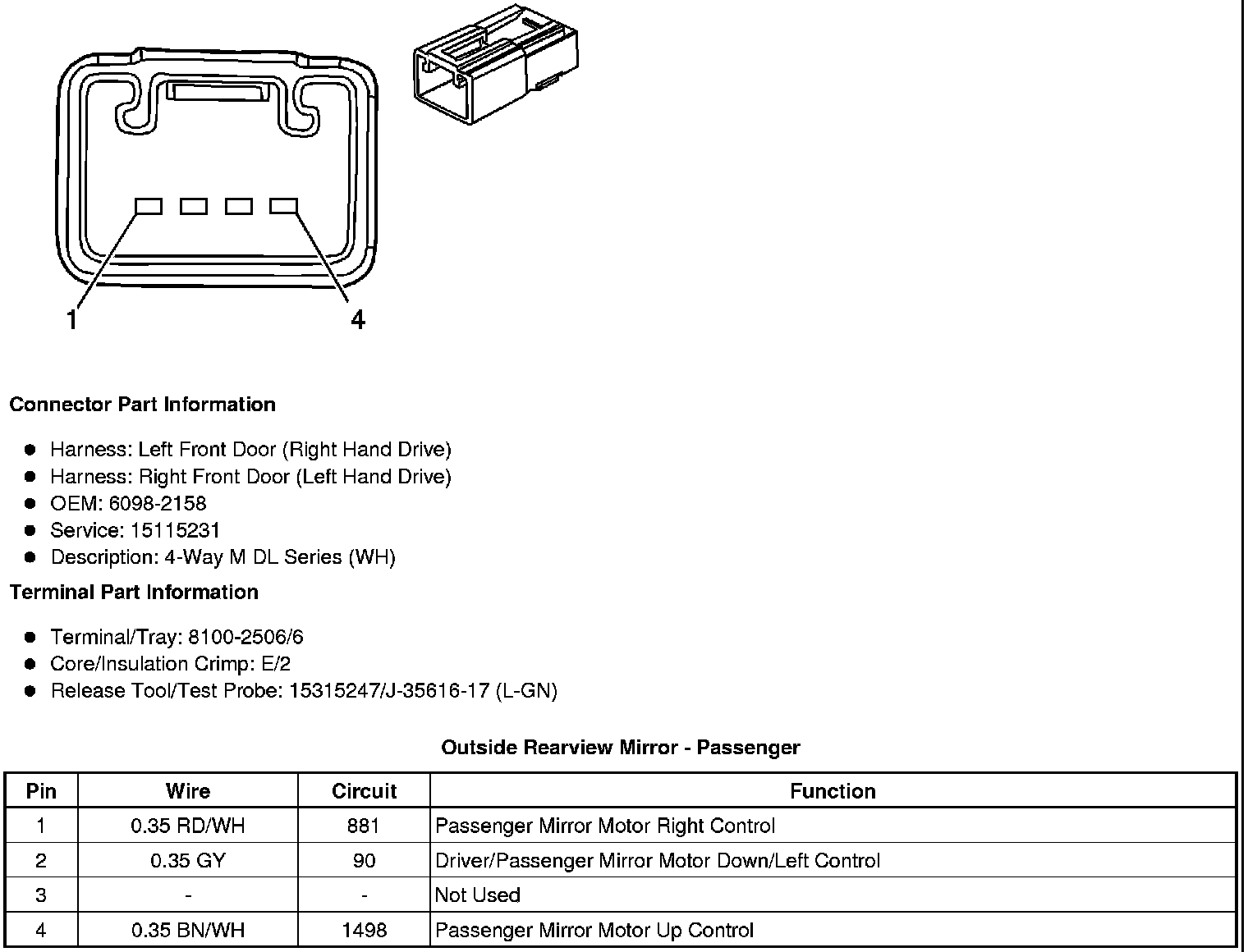

Outside Rearview Mirror - Passenger
