lemon-mirror
:
Home
>>
Hummer
>>
2009
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

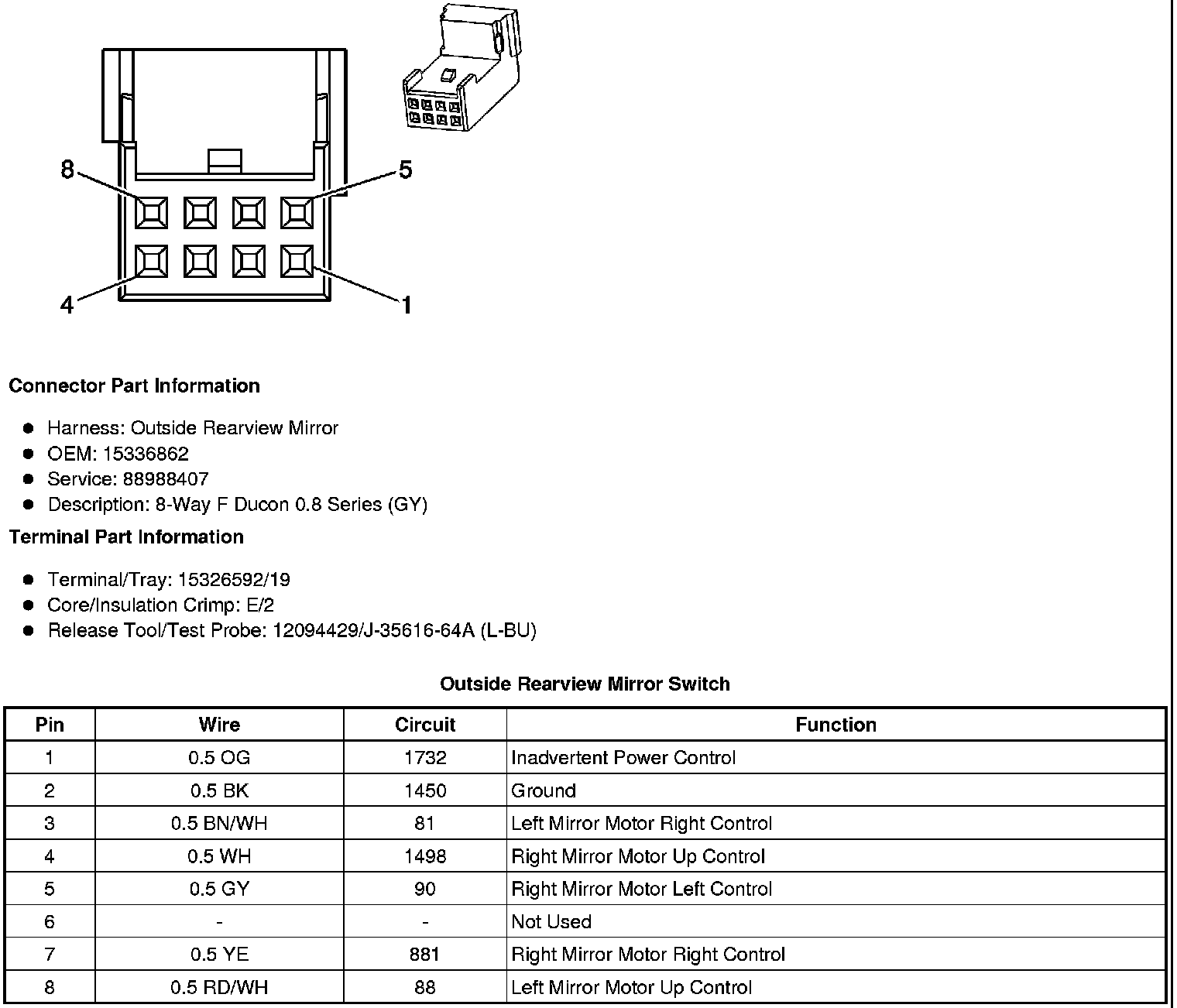

Component Connector End Views
Outside Rearview Mirror Switch
