Fuel Tank Unit
Fuel Tank Unit
Component Connector End Views

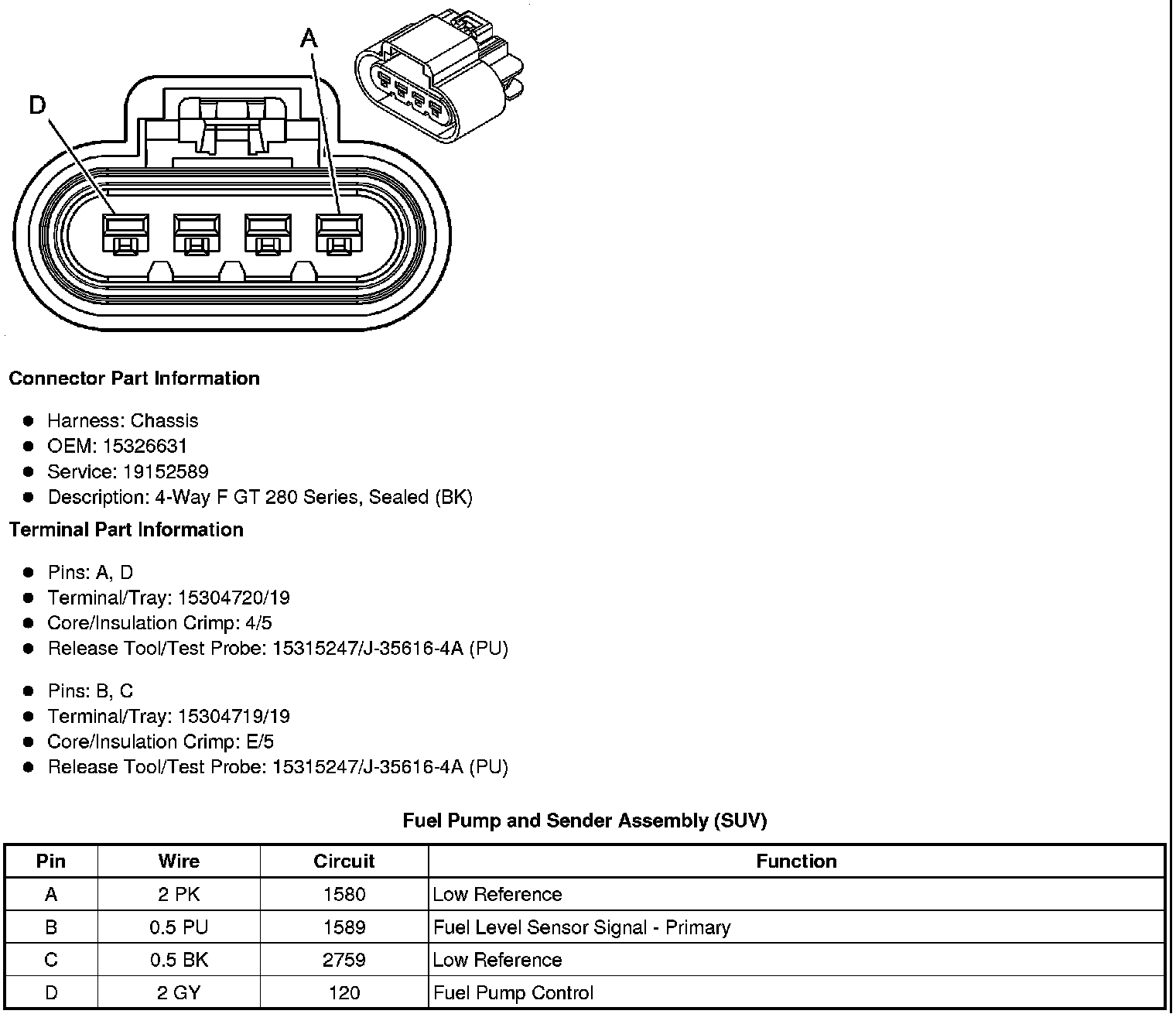

Fuel Pump and Sender Assembly (SUV)

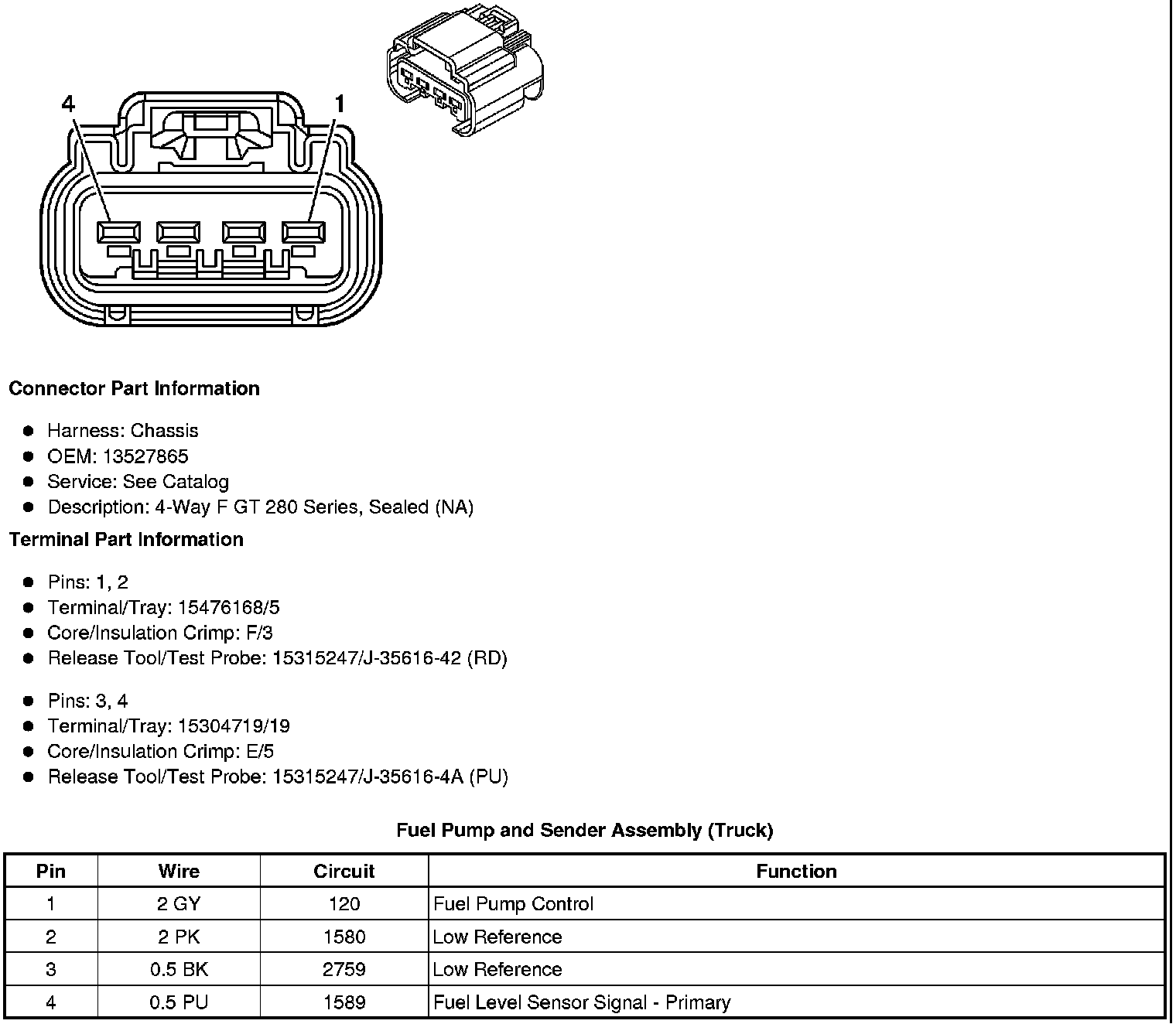

Fuel Pump and Sender Assembly (Truck)
