Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector




Component Connector End Views

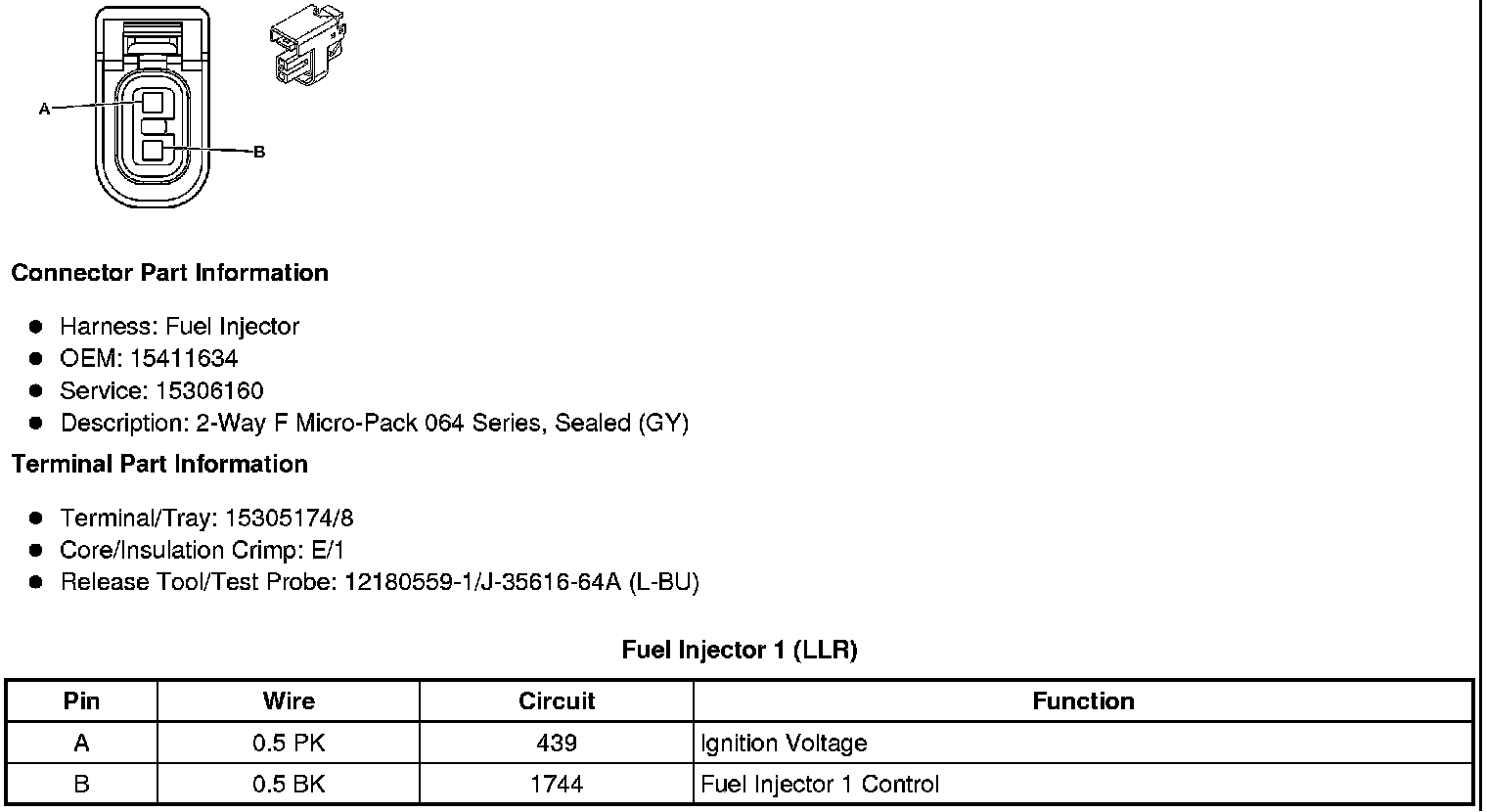

Fuel Injector 1 (LLR)

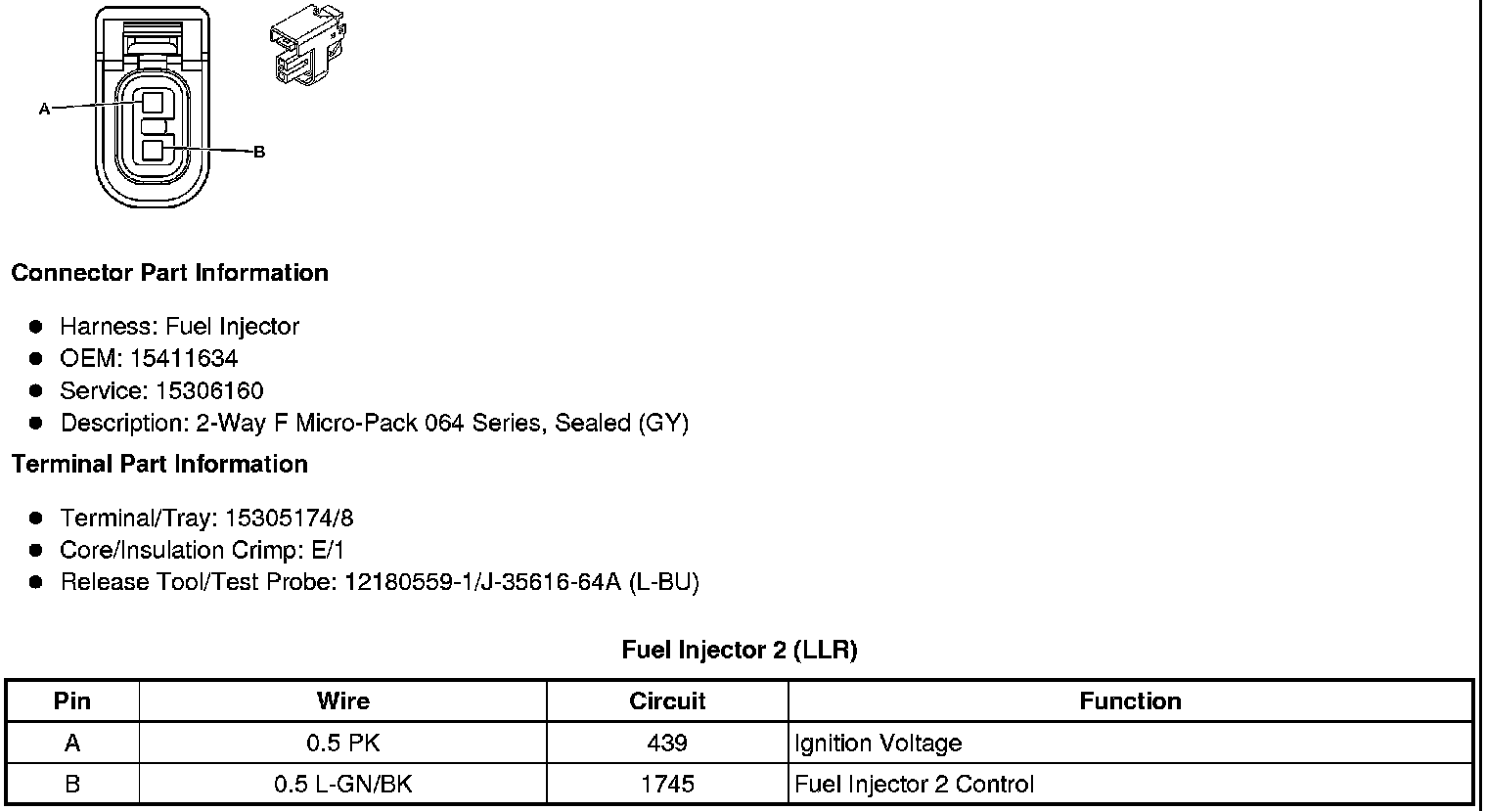

Fuel Injector 2 (LLR)

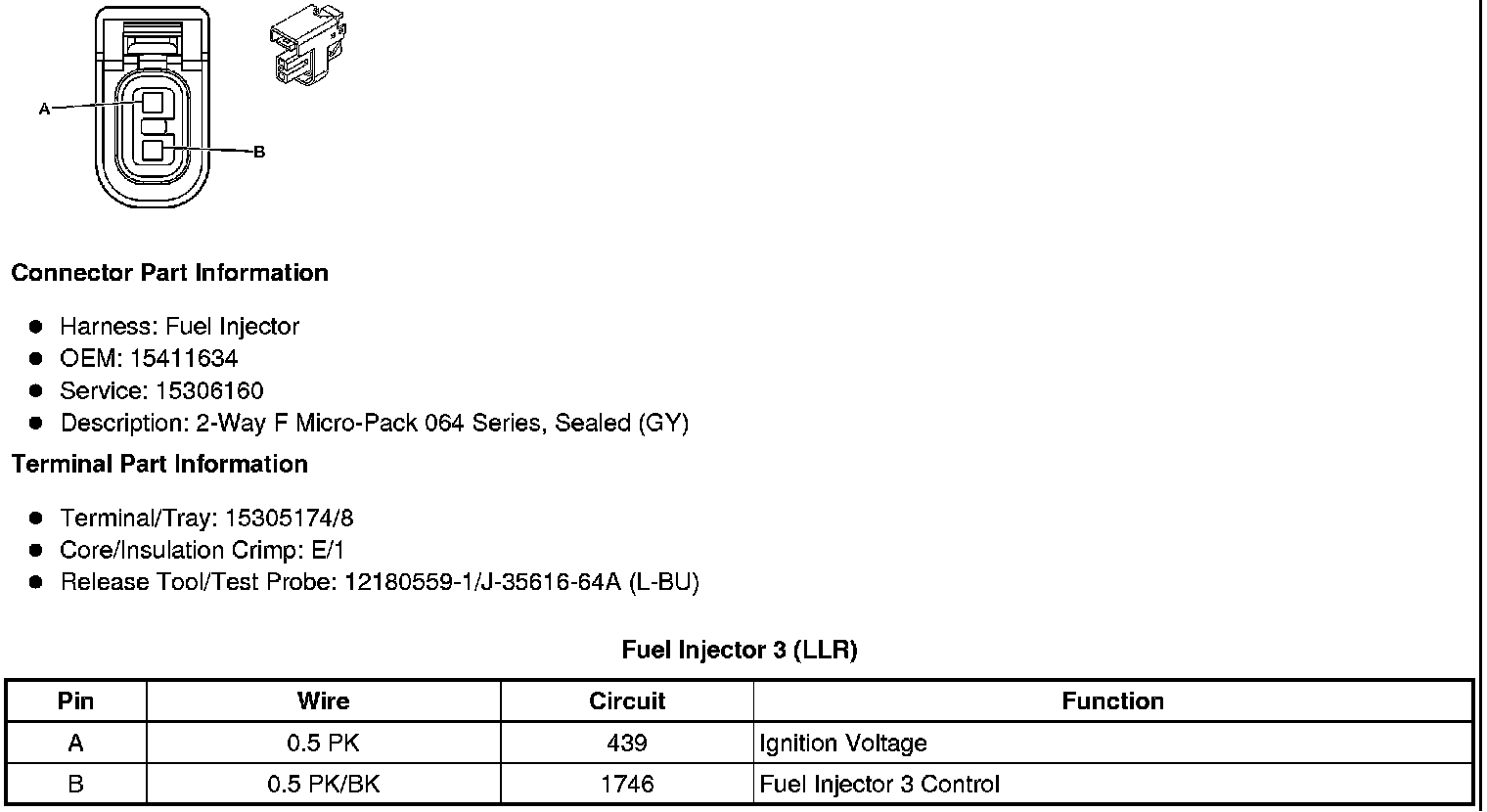

Fuel Injector 3 (LLR)






Fuel Injector 4 (LLR)

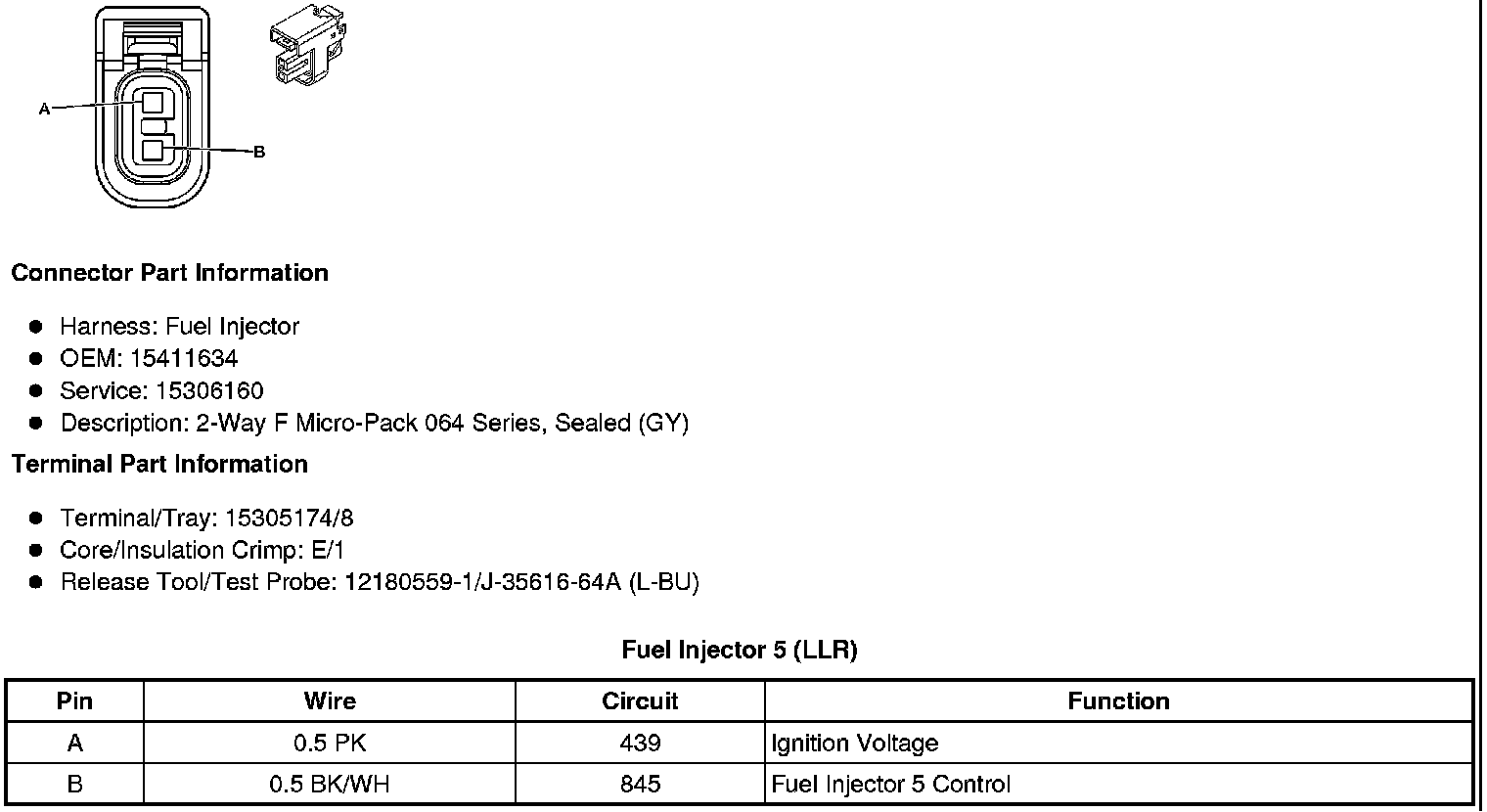

Fuel Injector 5 (LLR)
