Home >> Hummer >> 2009 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp >> System Diagram

System Diagram




Component Connector End Views

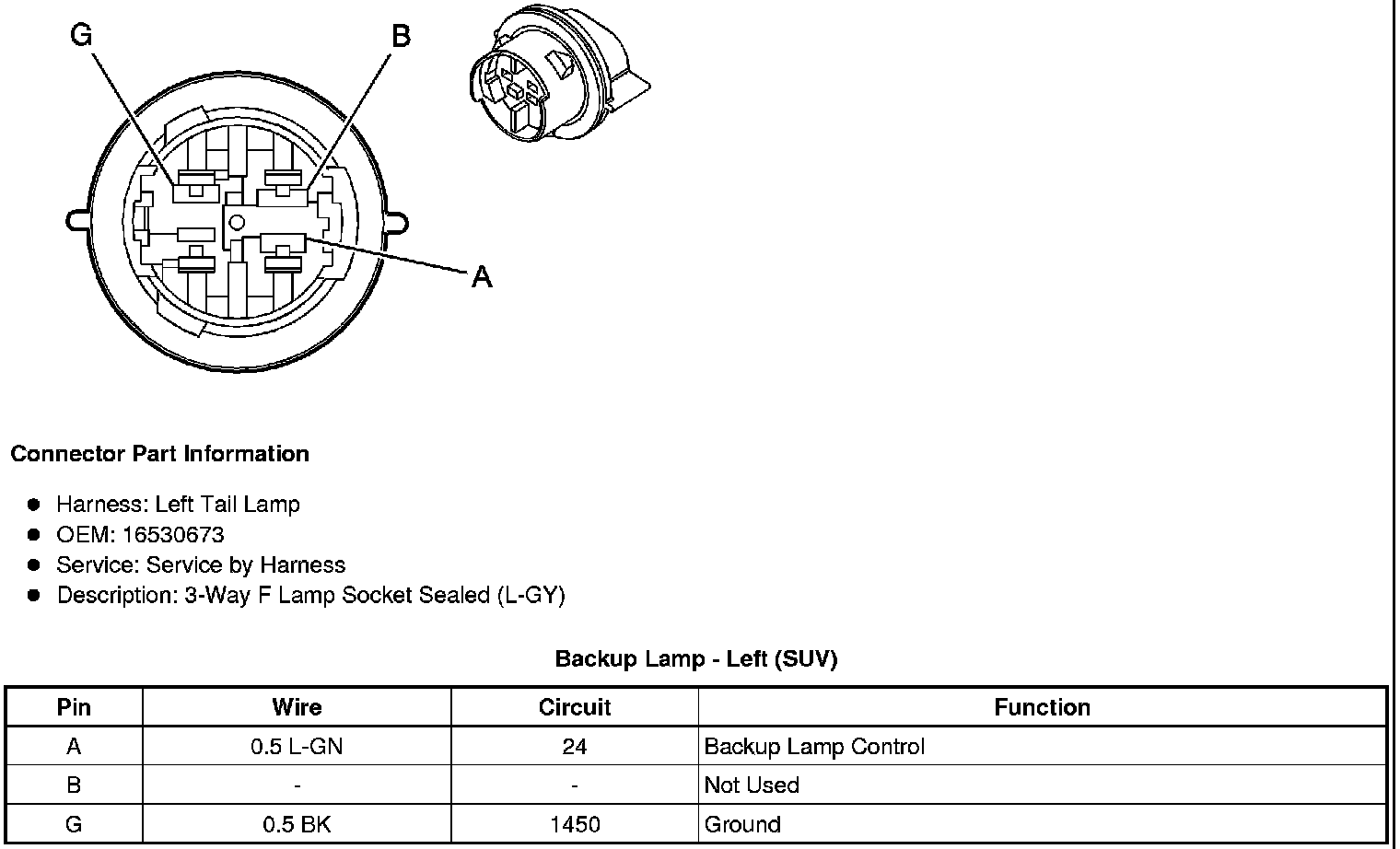

Backup Lamp - Left (SUV)

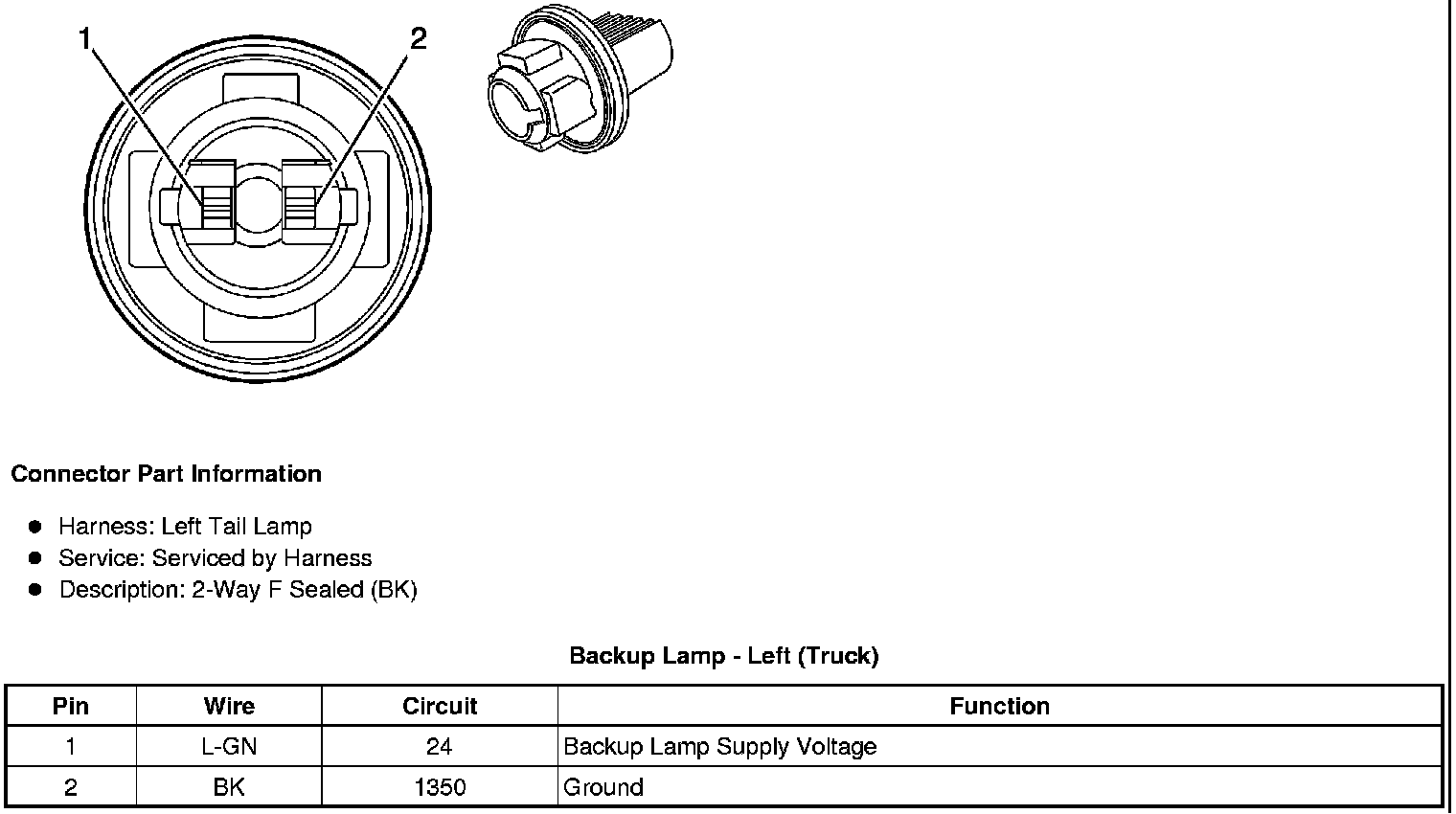

Backup Lamp - Left (Truck)

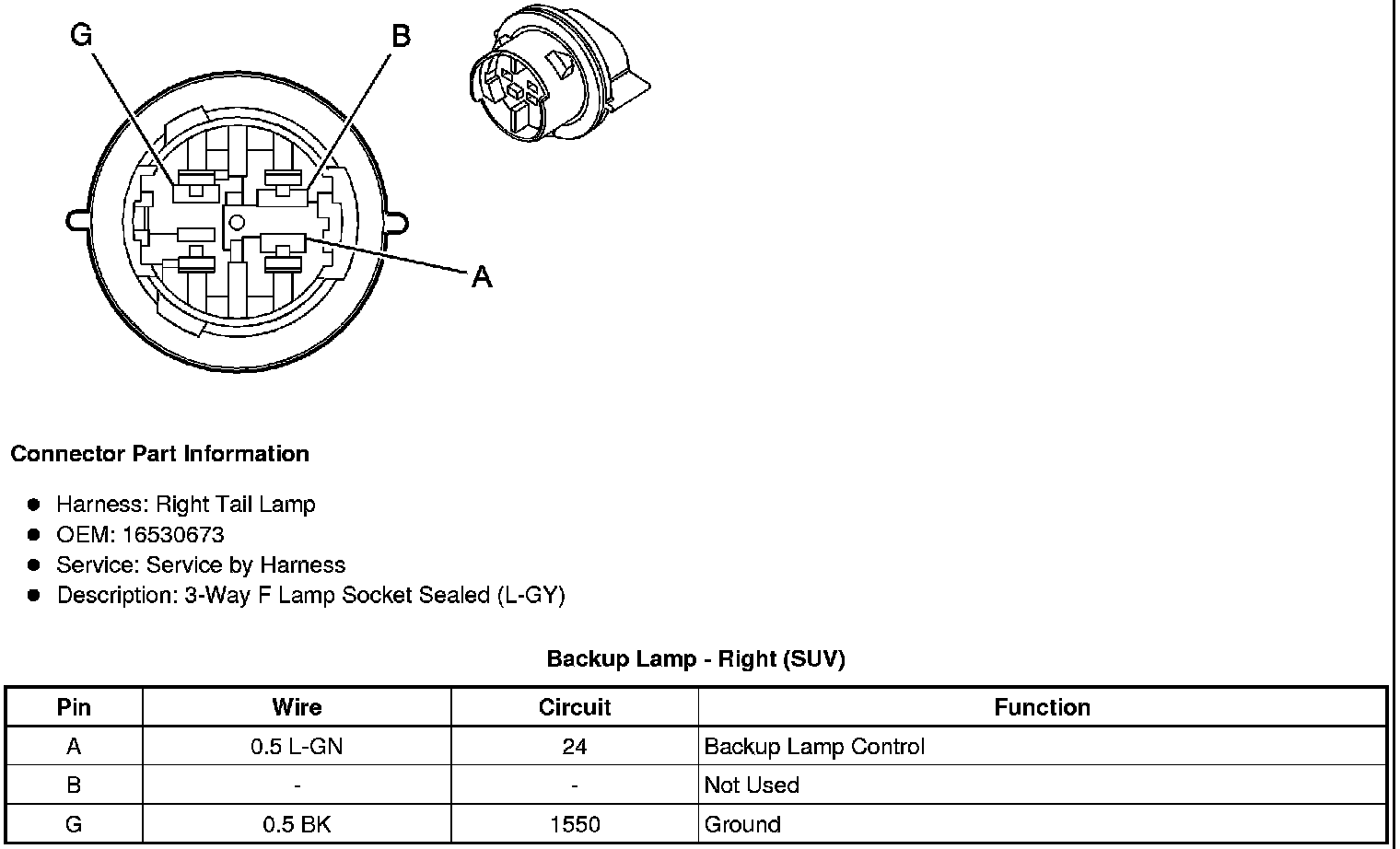

Backup Lamp - Right (SUV)

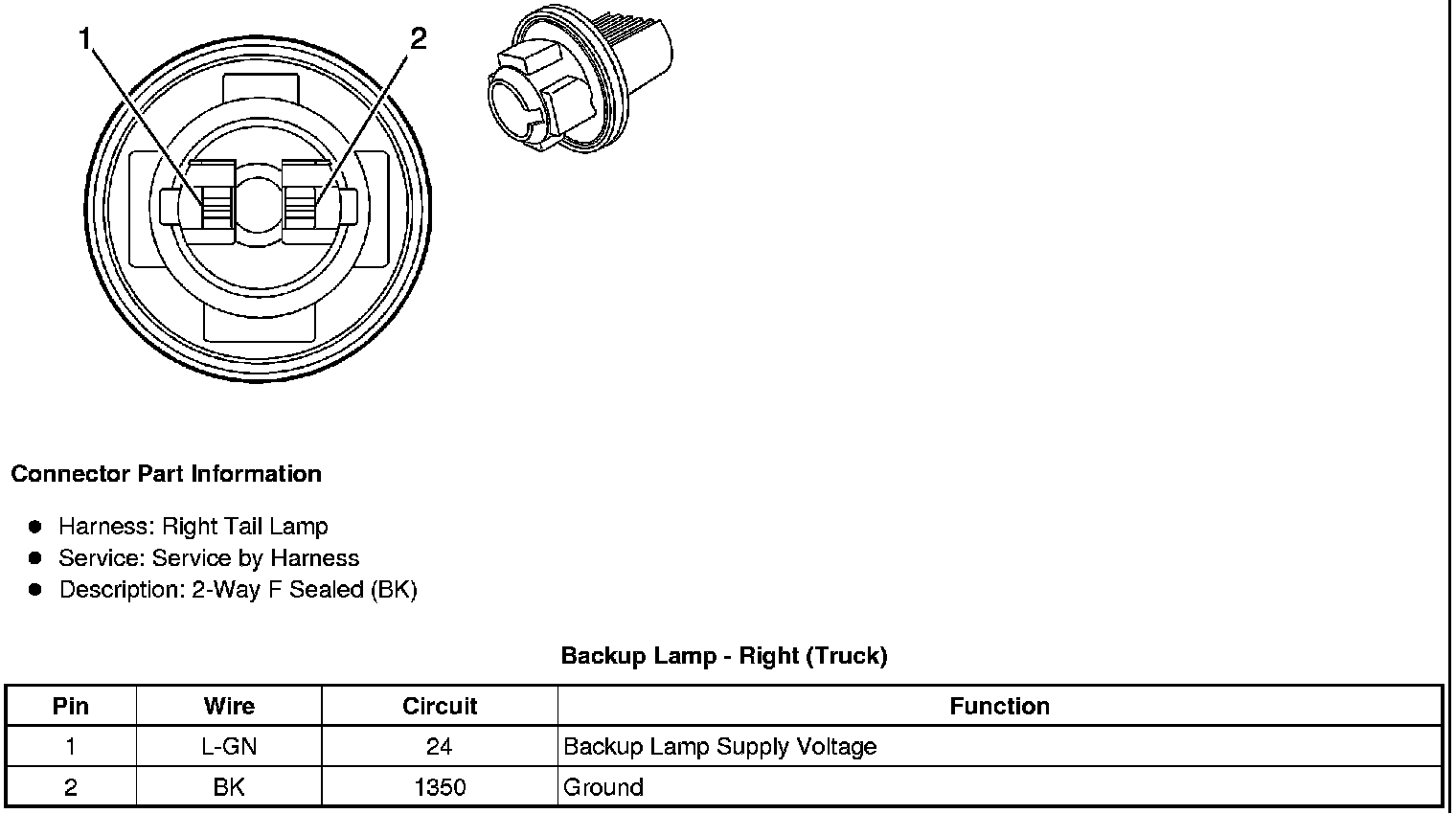

Backup Lamp - Right (Truck)
