Air Injection Pump Relay
Air Injection Pump Relay

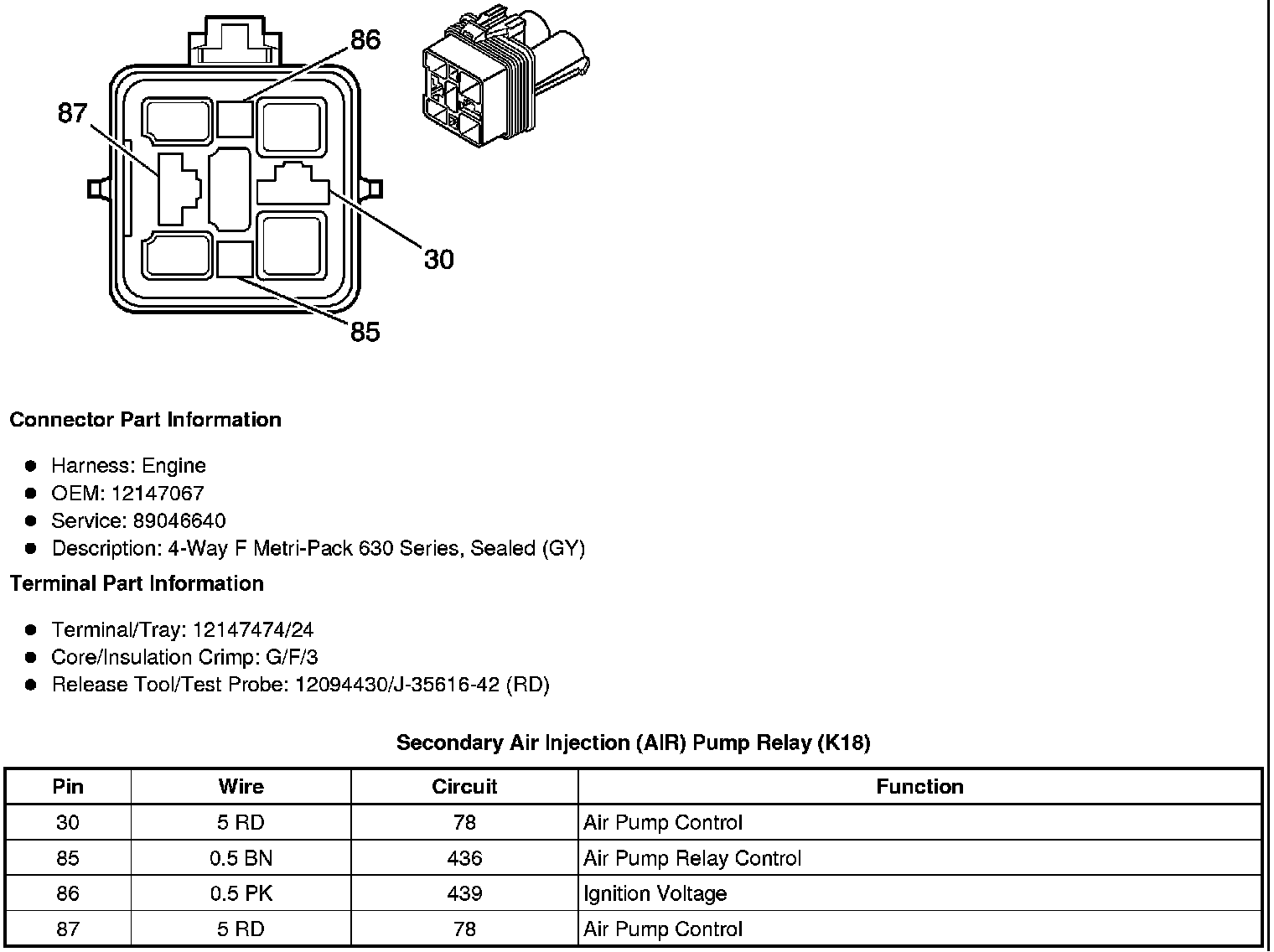

Component Connector End Views
Secondary Air Injection (AIR) Pump Relay (K18)
