Home >> Hummer >> 2009 >> H2 V8-6.2L >> Repair and Diagnosis >> Locations >> Splice Locations >> Master Splice List

Master Splice List

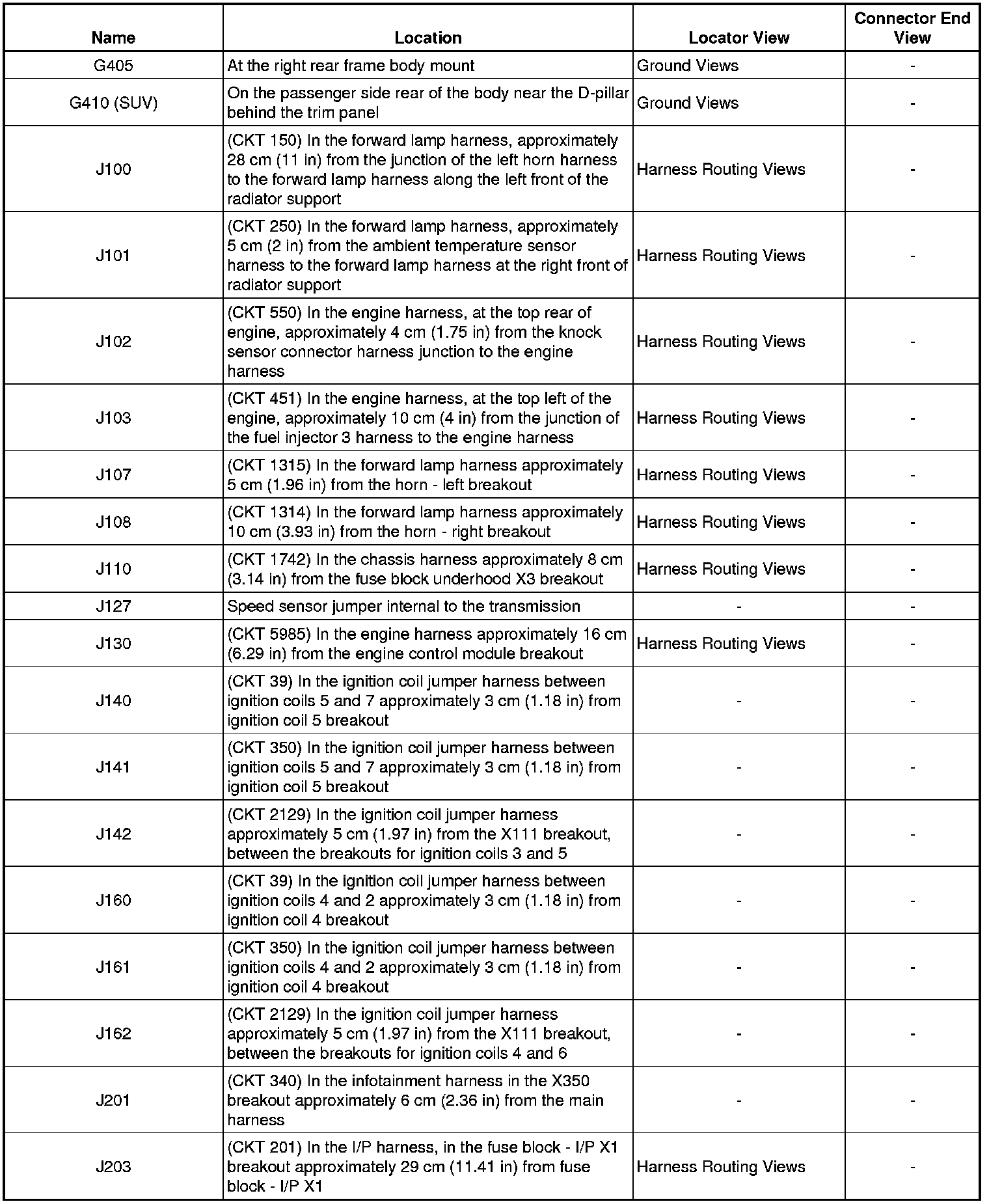

G405 - J203:

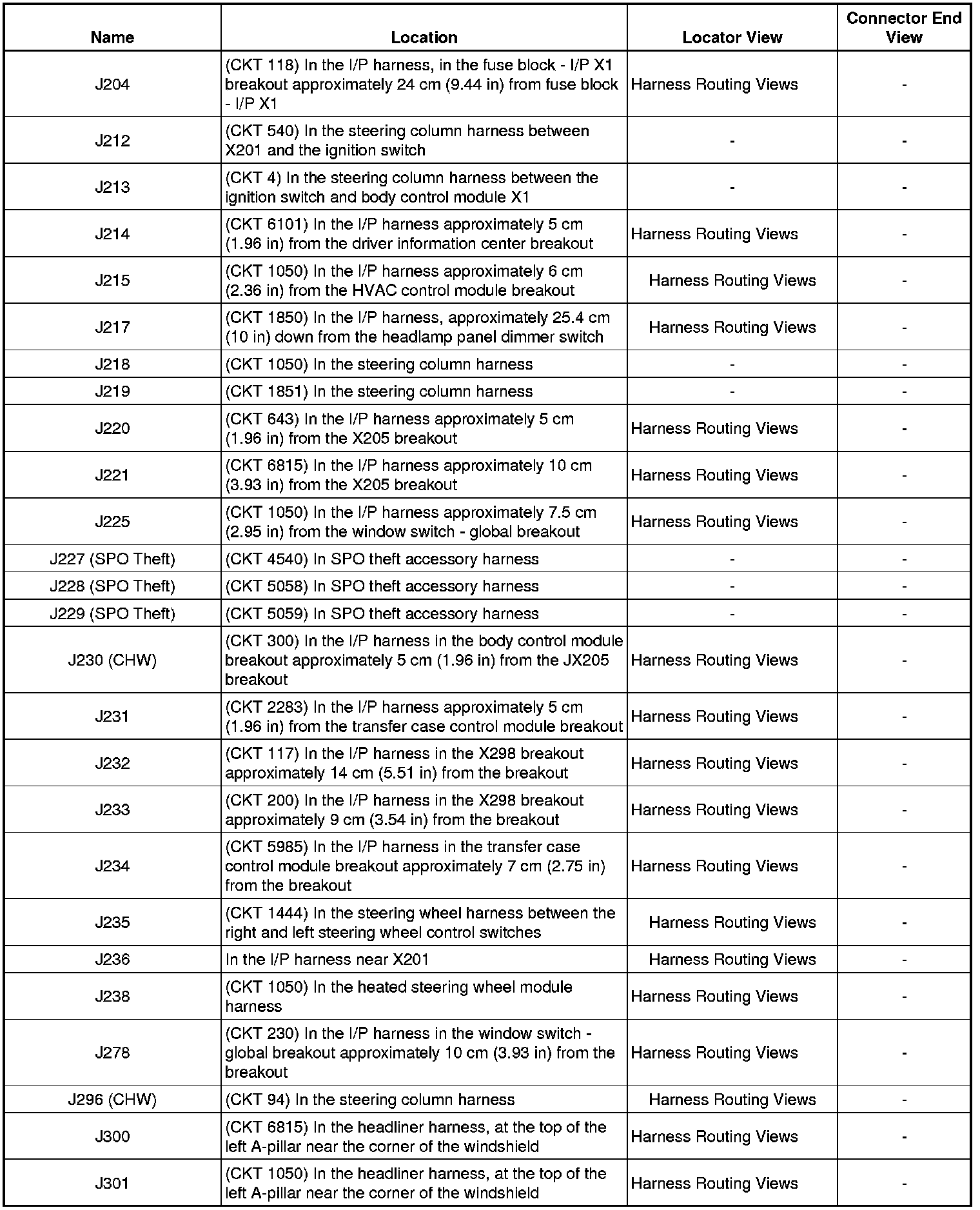

J204 - J301:

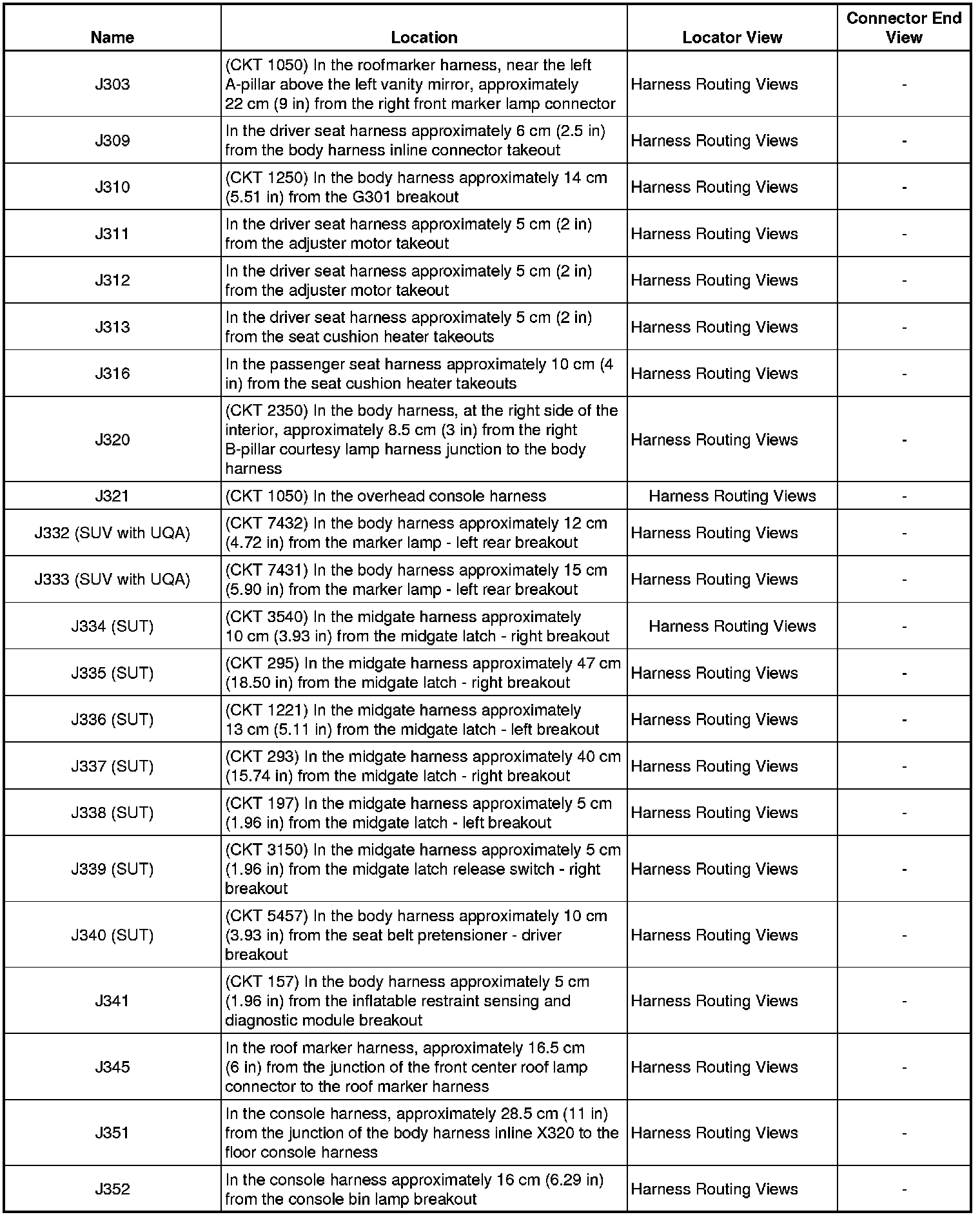

J303 - J352:

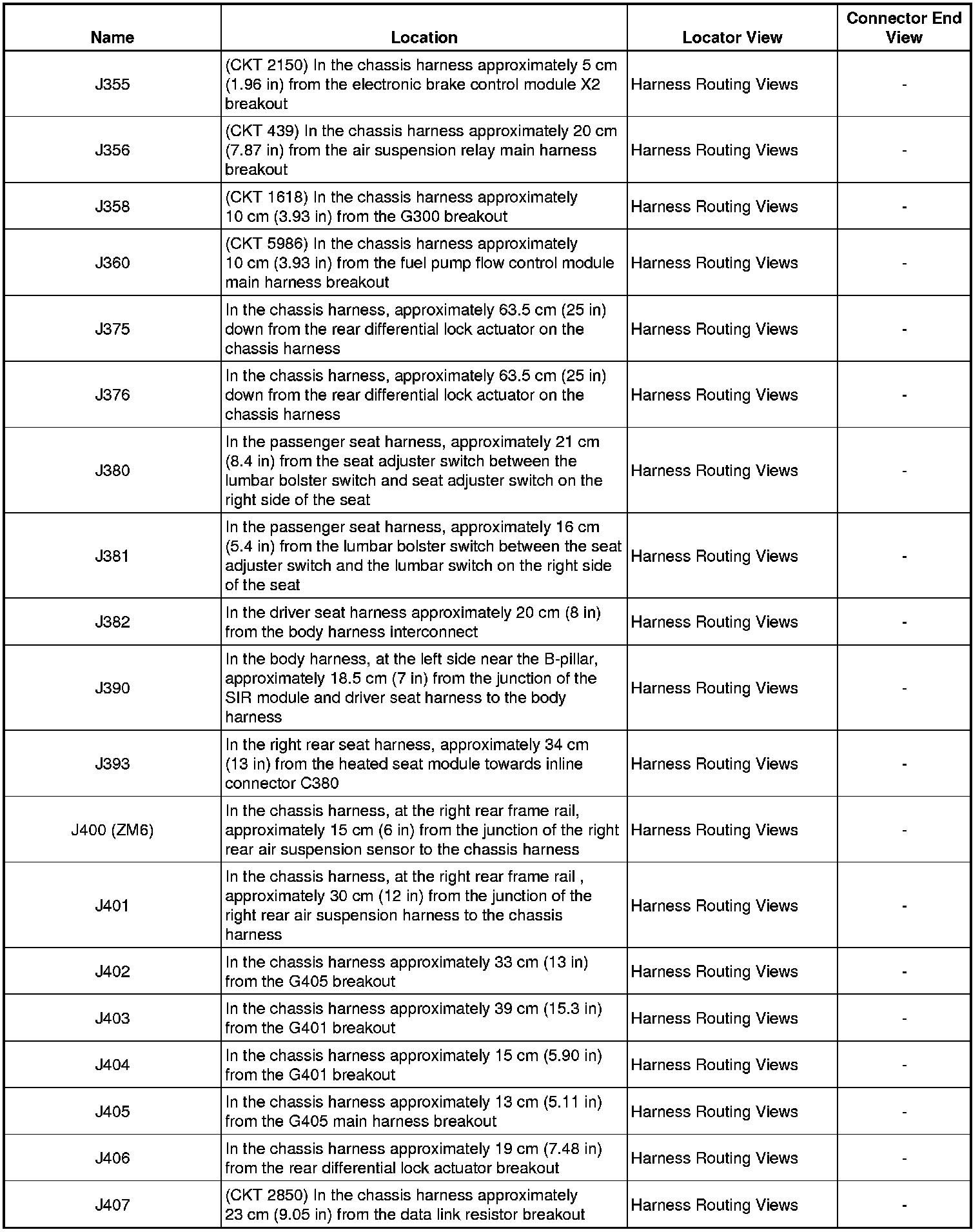

J355 - J407:

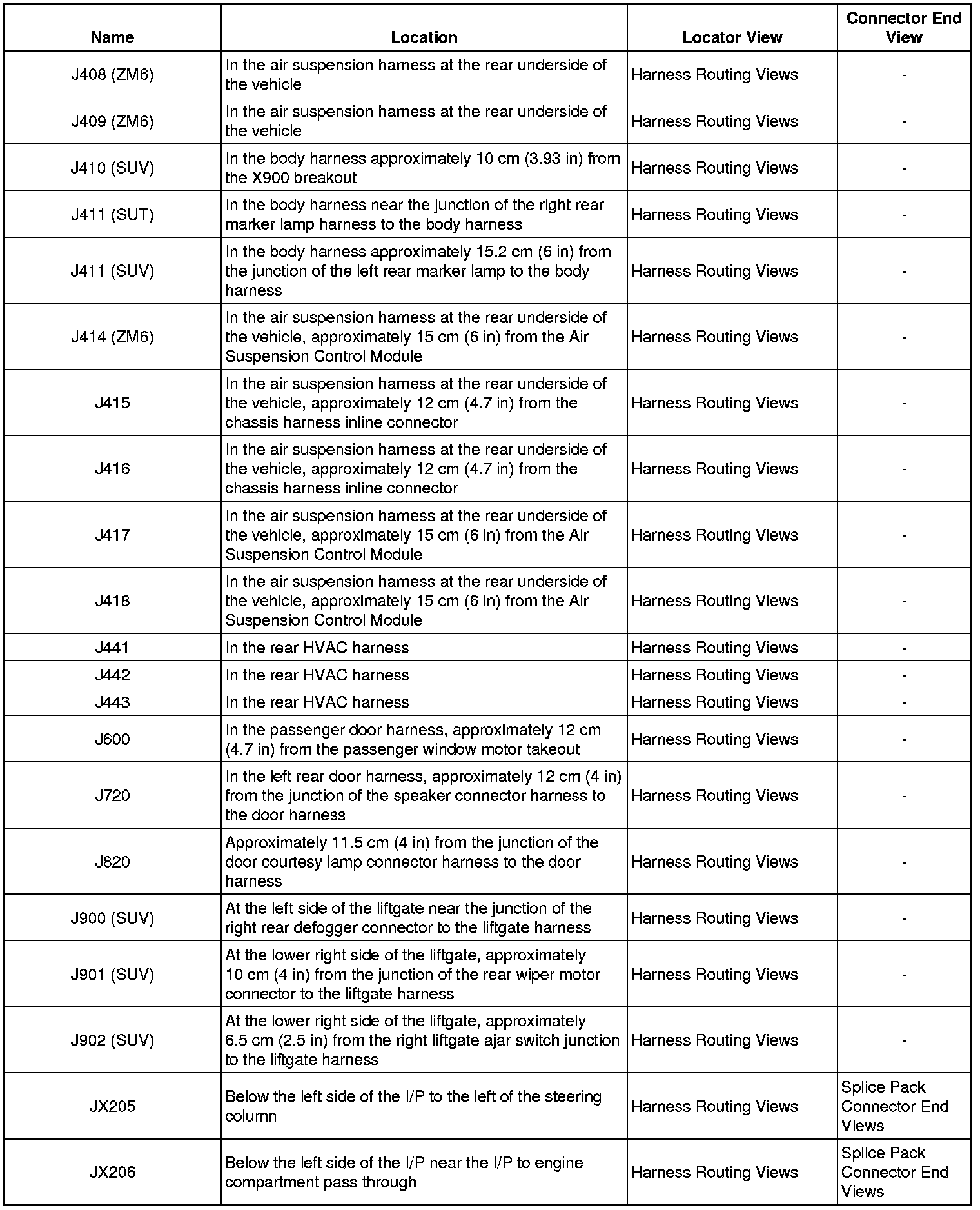

J408 (ZM6) - JX206:

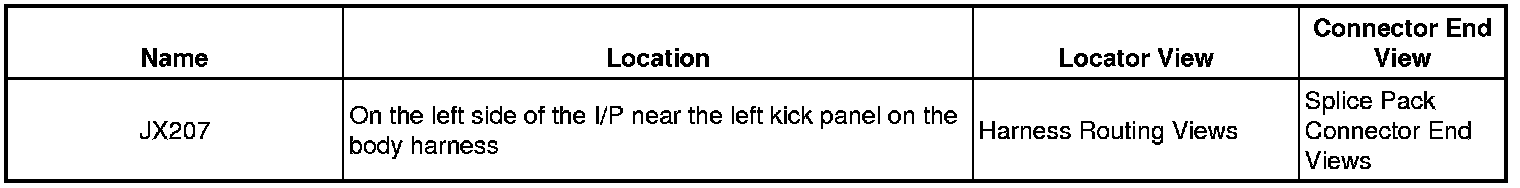

JX207:
