Turn Signal Switch
>>
Turn Signal/Multifunction Switch X2
Turn Signal/Multifunction Switch X2

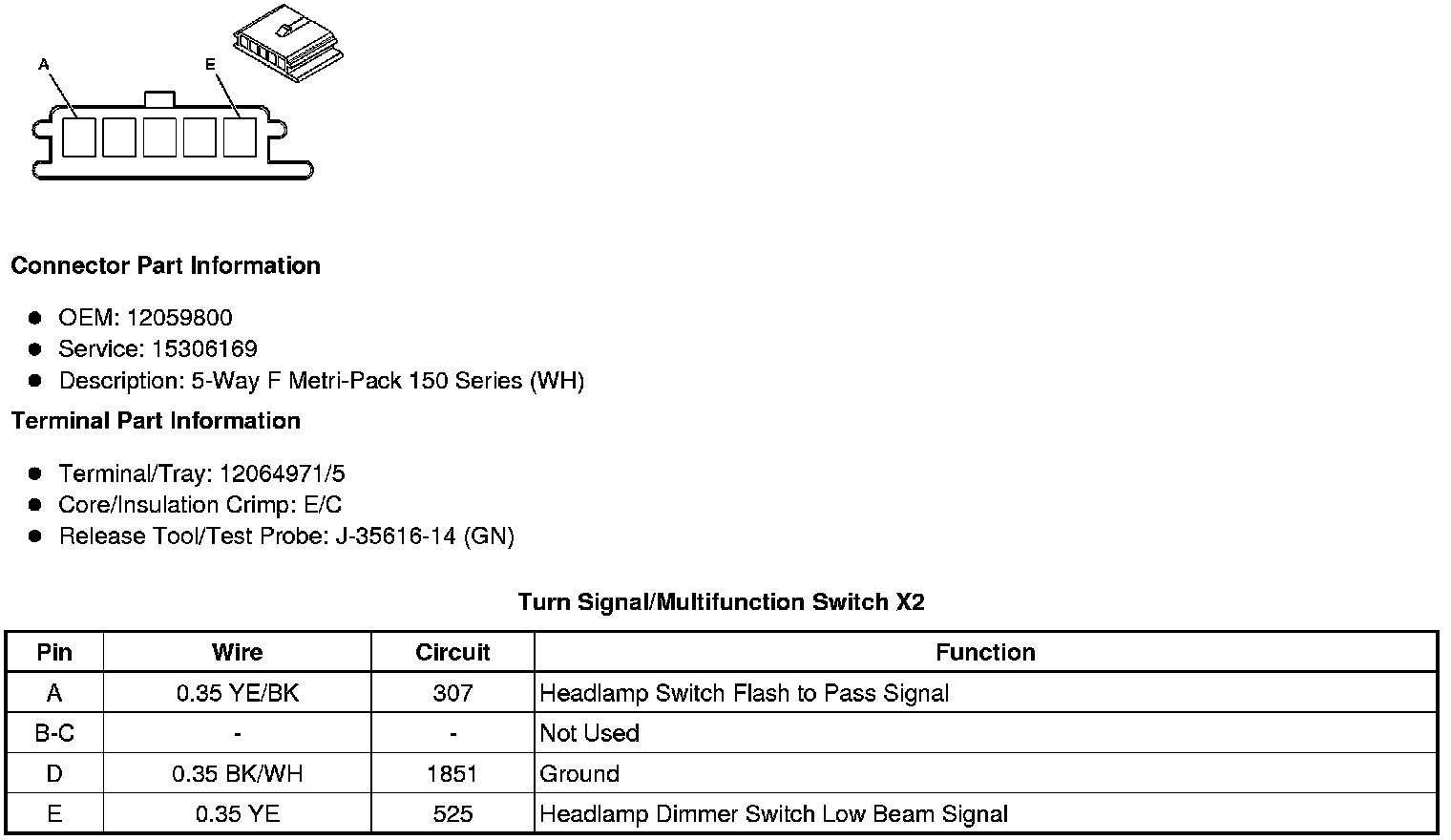

Component Connector End Views
Turn Signal/Multifunction Switch X2
