Heated Seat Control Module - Rear X3
Heated Seat Control Module - Rear X3

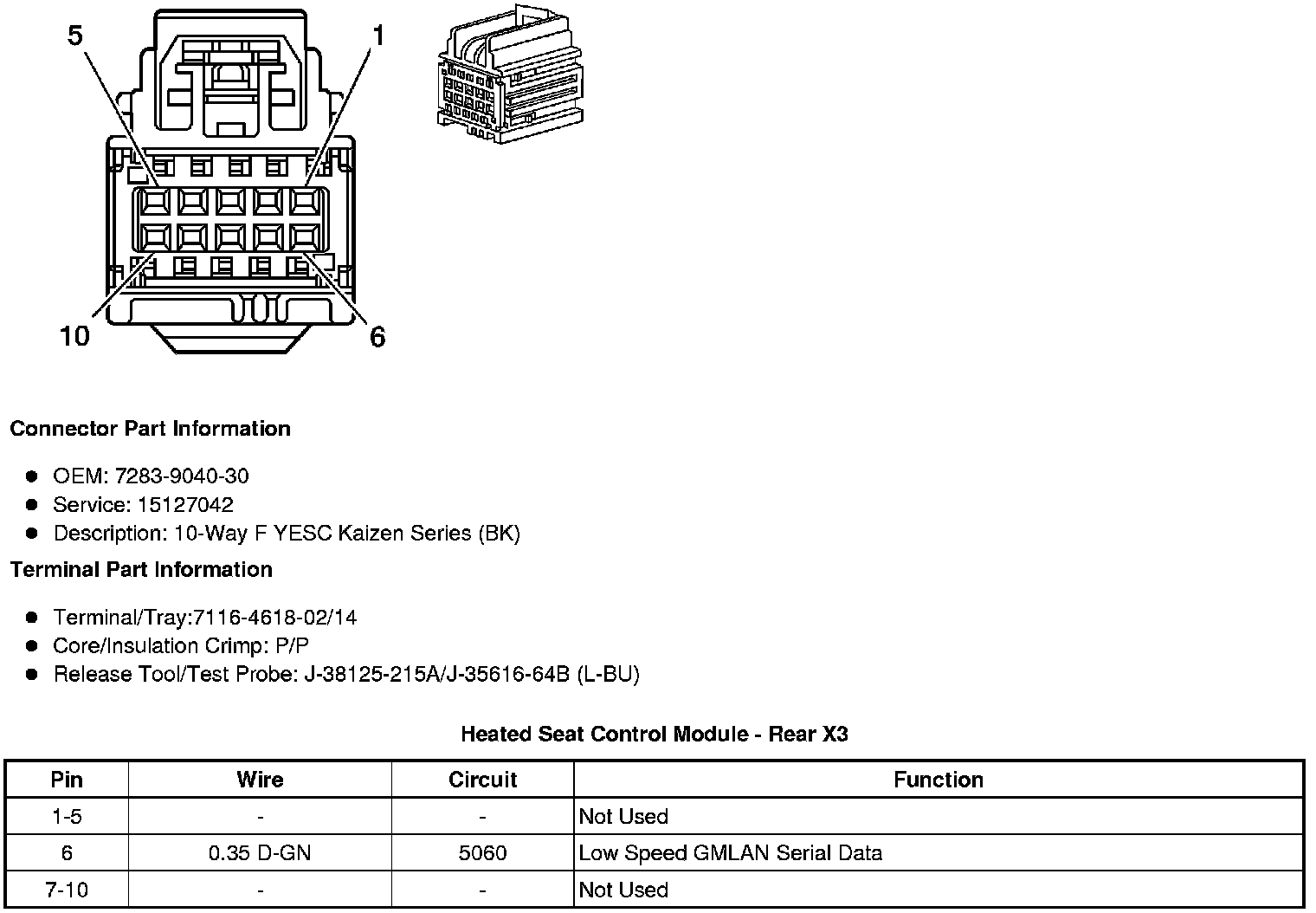

Component Connector End Views
Heated Seat Control Module - Rear X3
