Seat Temperature Control Module
>>

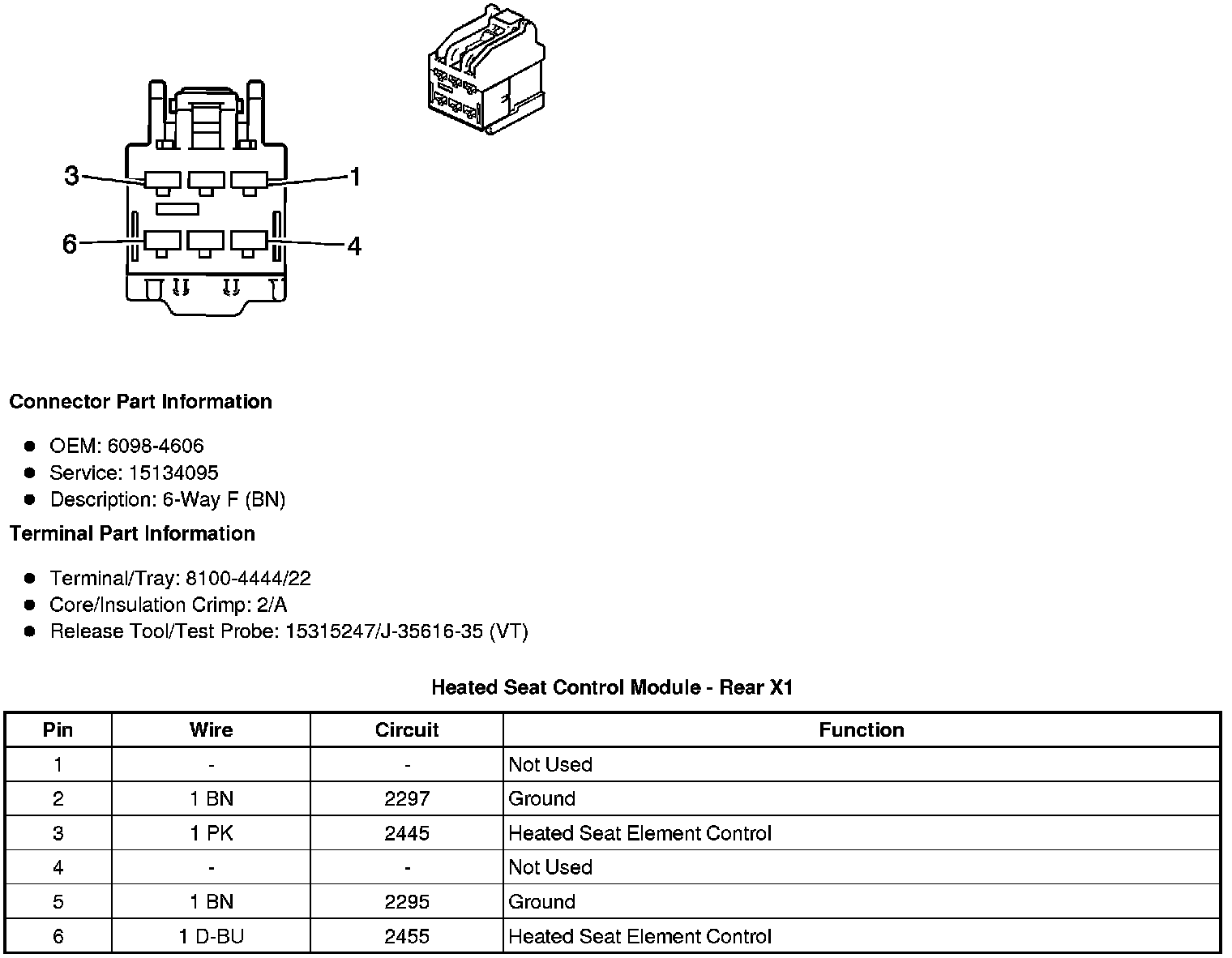

Heated Seat Control Module - Rear X1
Heated Seat Control Module - Rear X1
Component Connector End Views
Heated Seat Control Module - Rear X1
