Impact Sensor
>>
Inflatable Restraint Vehicle Rollover Sensor
Inflatable Restraint Vehicle Rollover Sensor

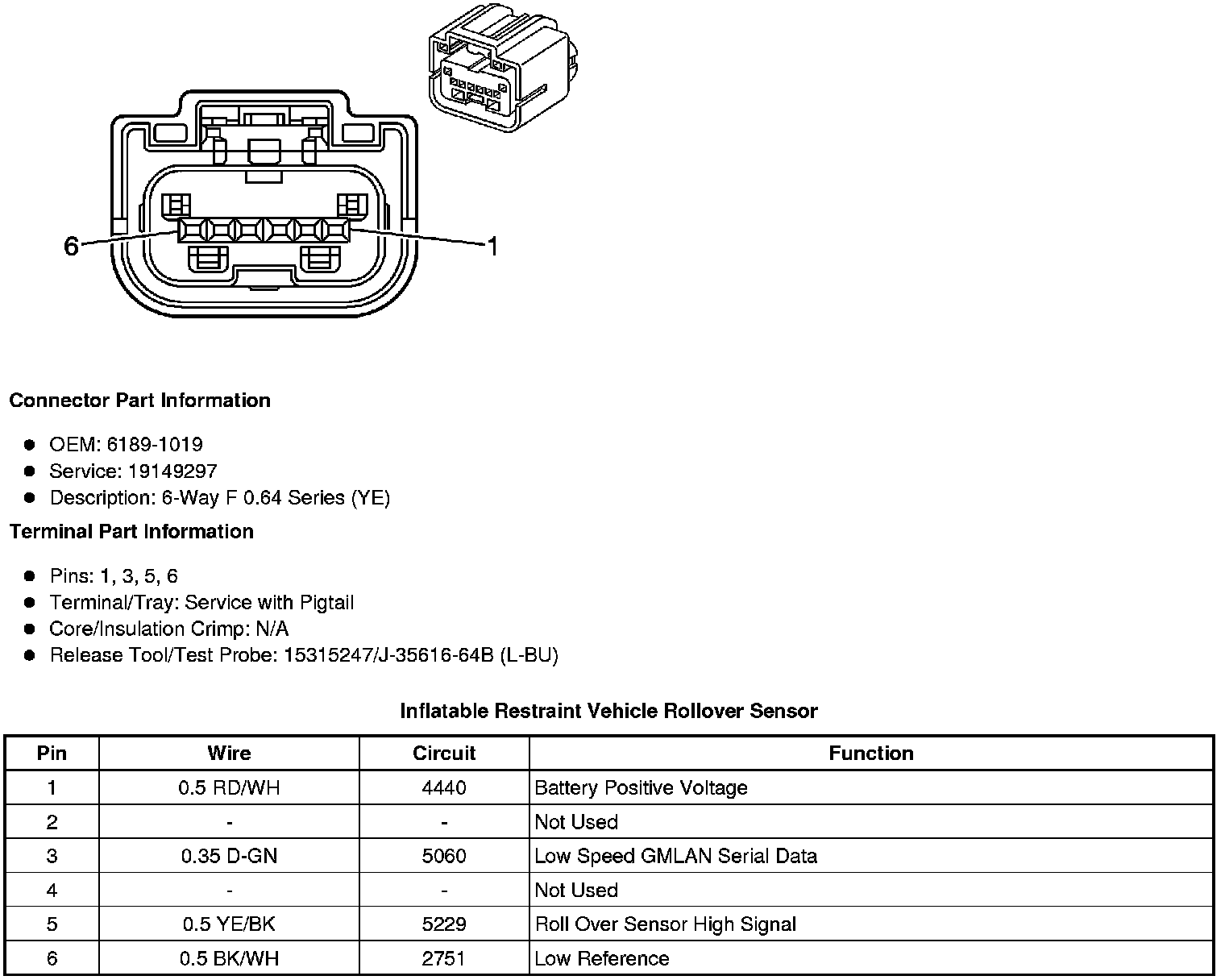

Component Connector End Views
Inflatable Restraint Vehicle Rollover Sensor
