Inflatable Restraint Front End Sensor - Right
Inflatable Restraint Front End Sensor - Right

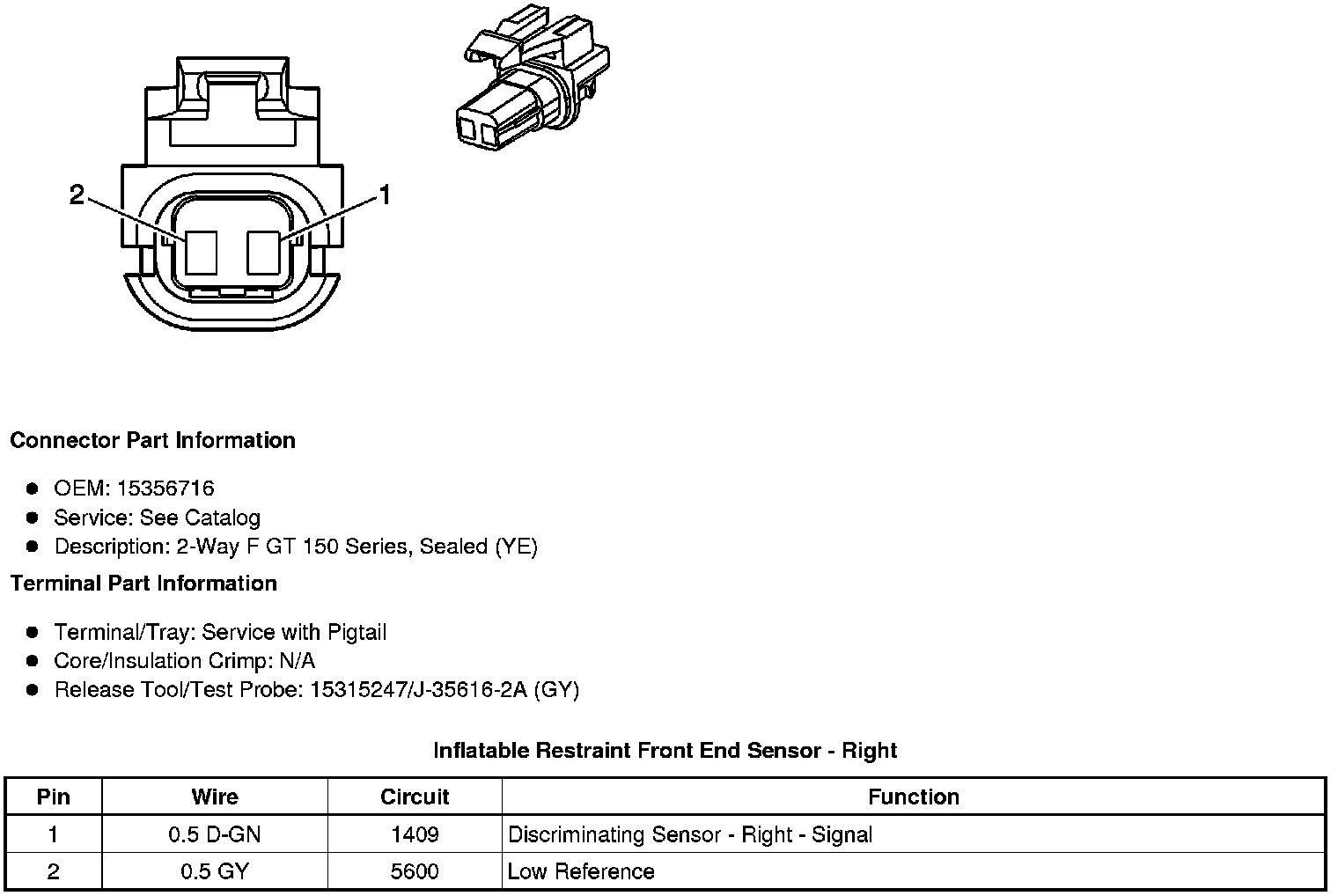

Component Connector End Views
Inflatable Restraint Front End Sensor - Right
