Fuel Pressure Control Module
Fuel Pressure Control Module

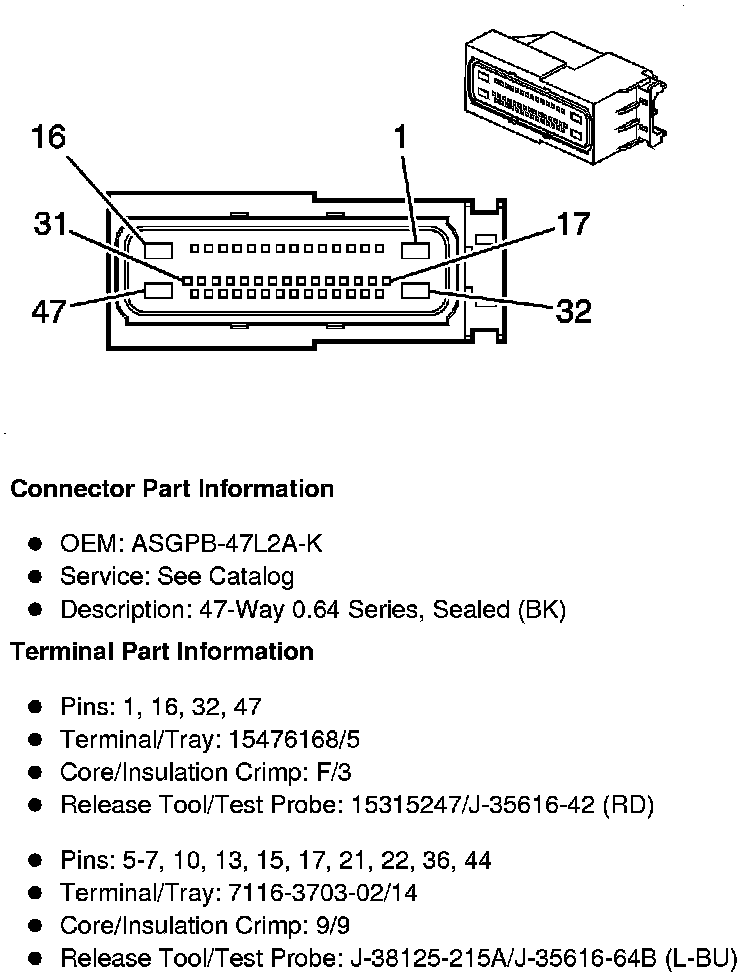

Component Connector End Views

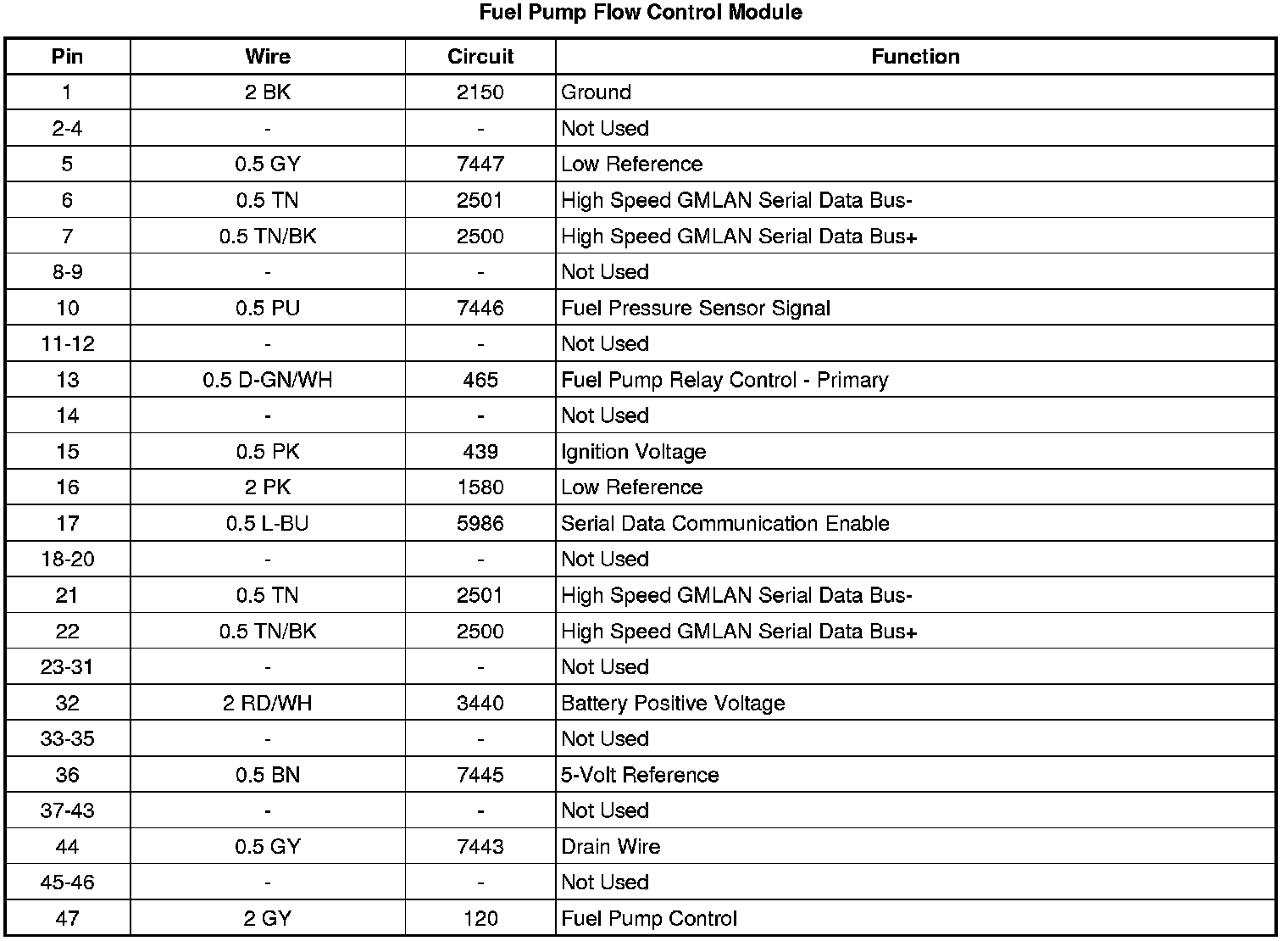

Fuel Pump Flow Control Module
