Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

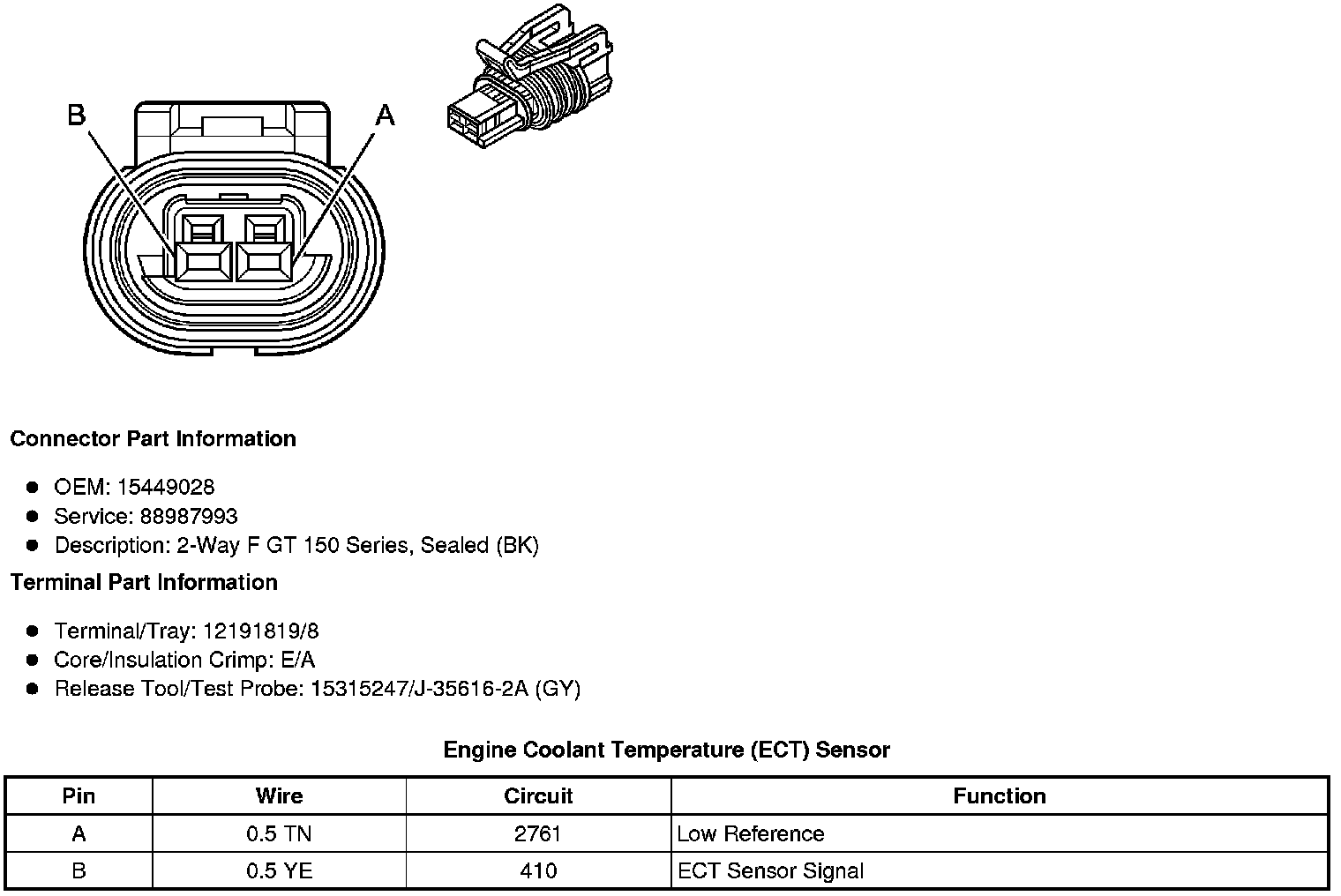

Component Connector End Views
Engine Coolant Temperature (ECT) Sensor
