lemon-mirror
:
Home
>>
Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>
Inflatable Restraint Steering Wheel Module
Inflatable Restraint Steering Wheel Module

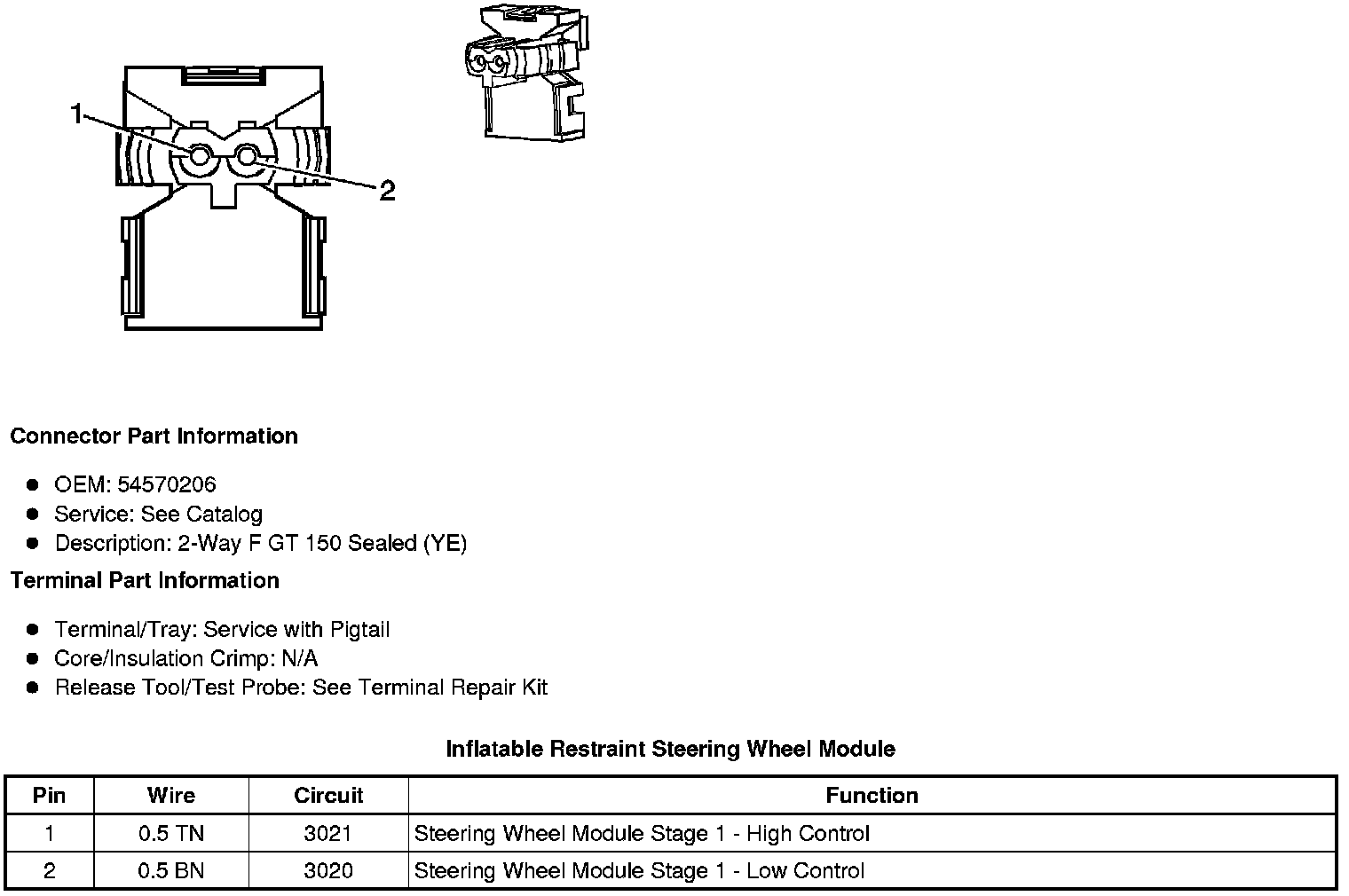

Component Connector End Views
Inflatable Restraint Steering Wheel Module
