Home >> Hummer >> 2009 >> H2 V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

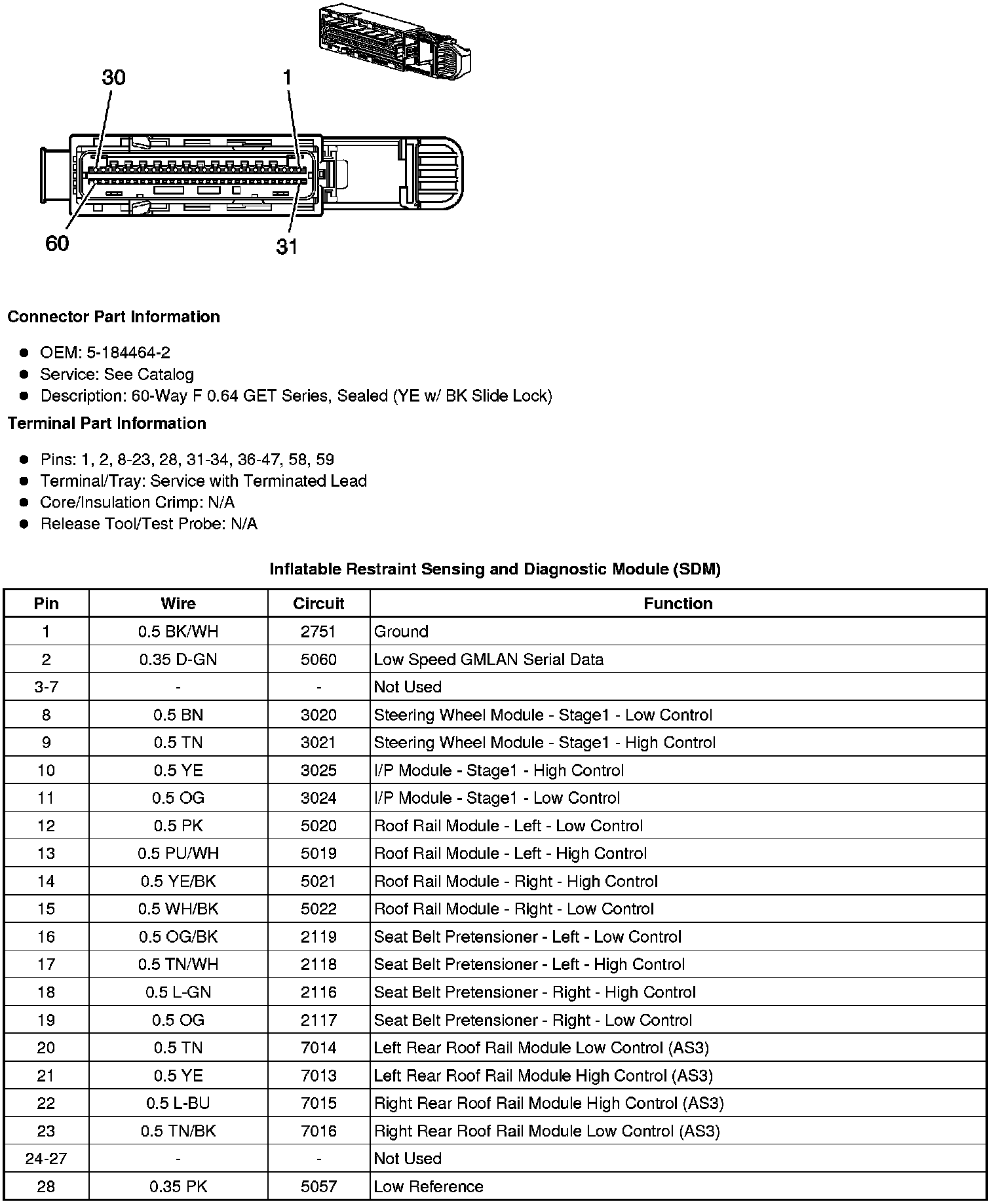

Component Connector End Views

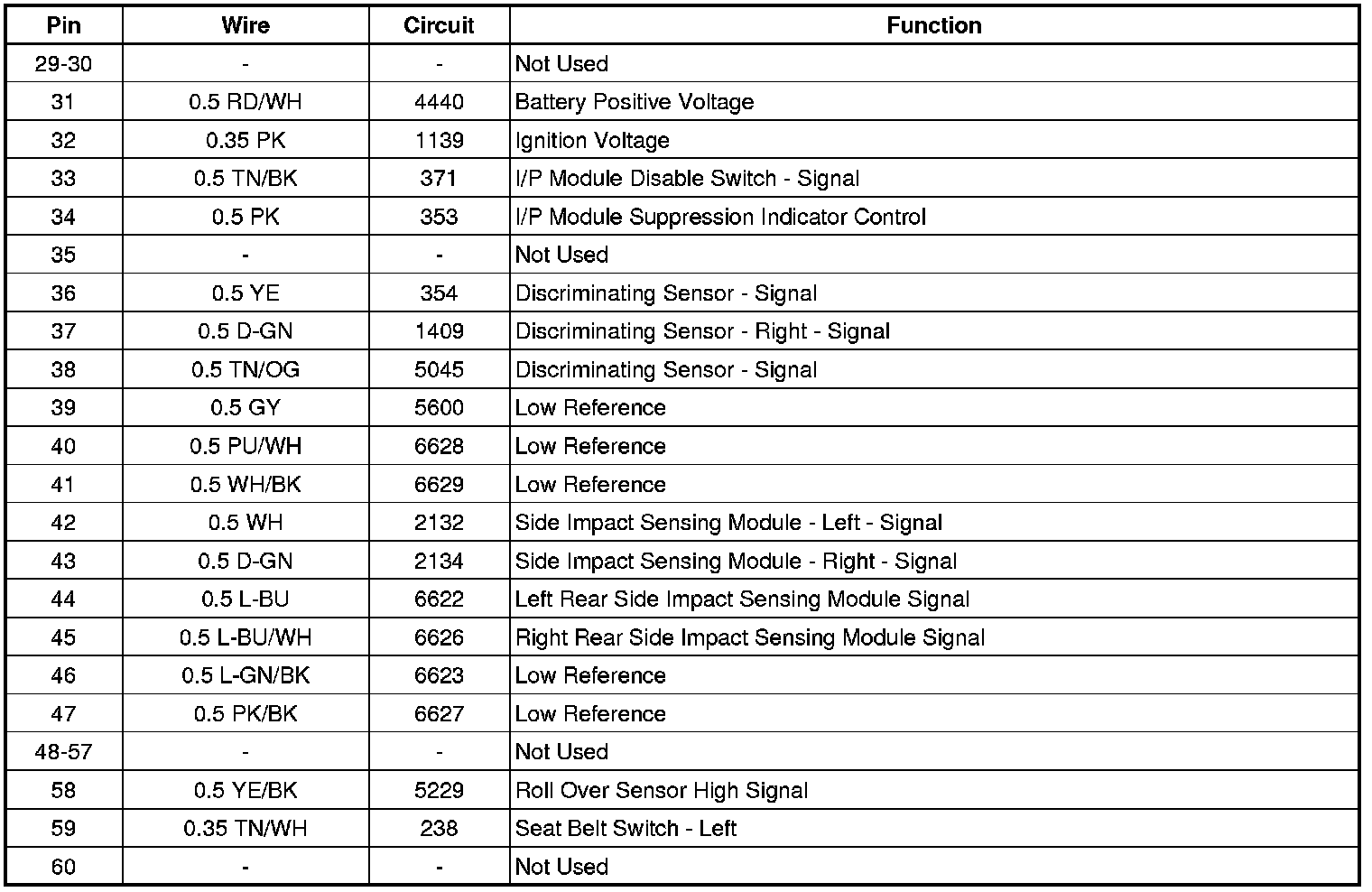

Inflatable Restraint Sensing and Diagnostic Module (SDM)
