Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows

Windows



Moveable Window Schematics

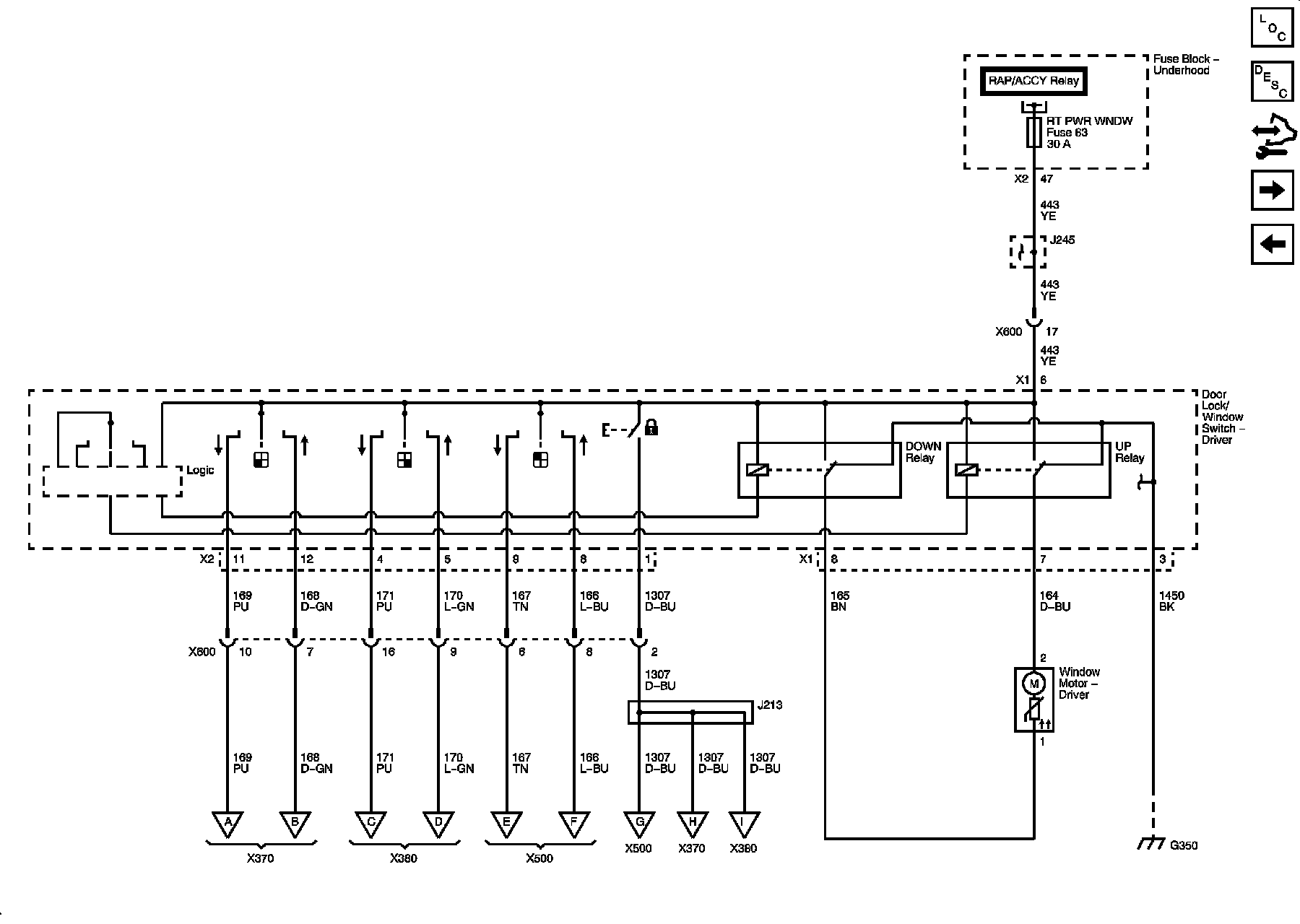

Driver Door - LHD

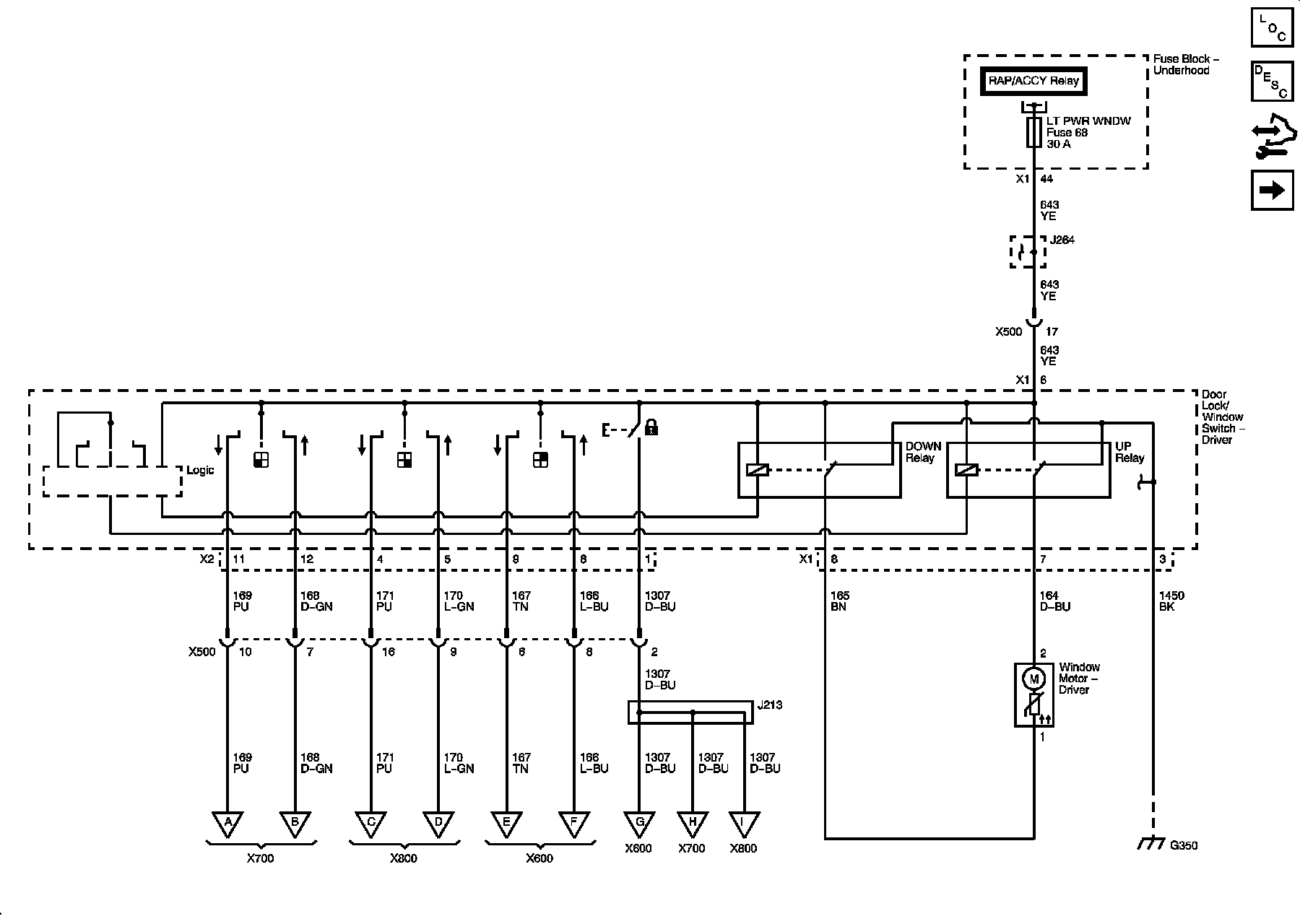

Driver Door - RHD

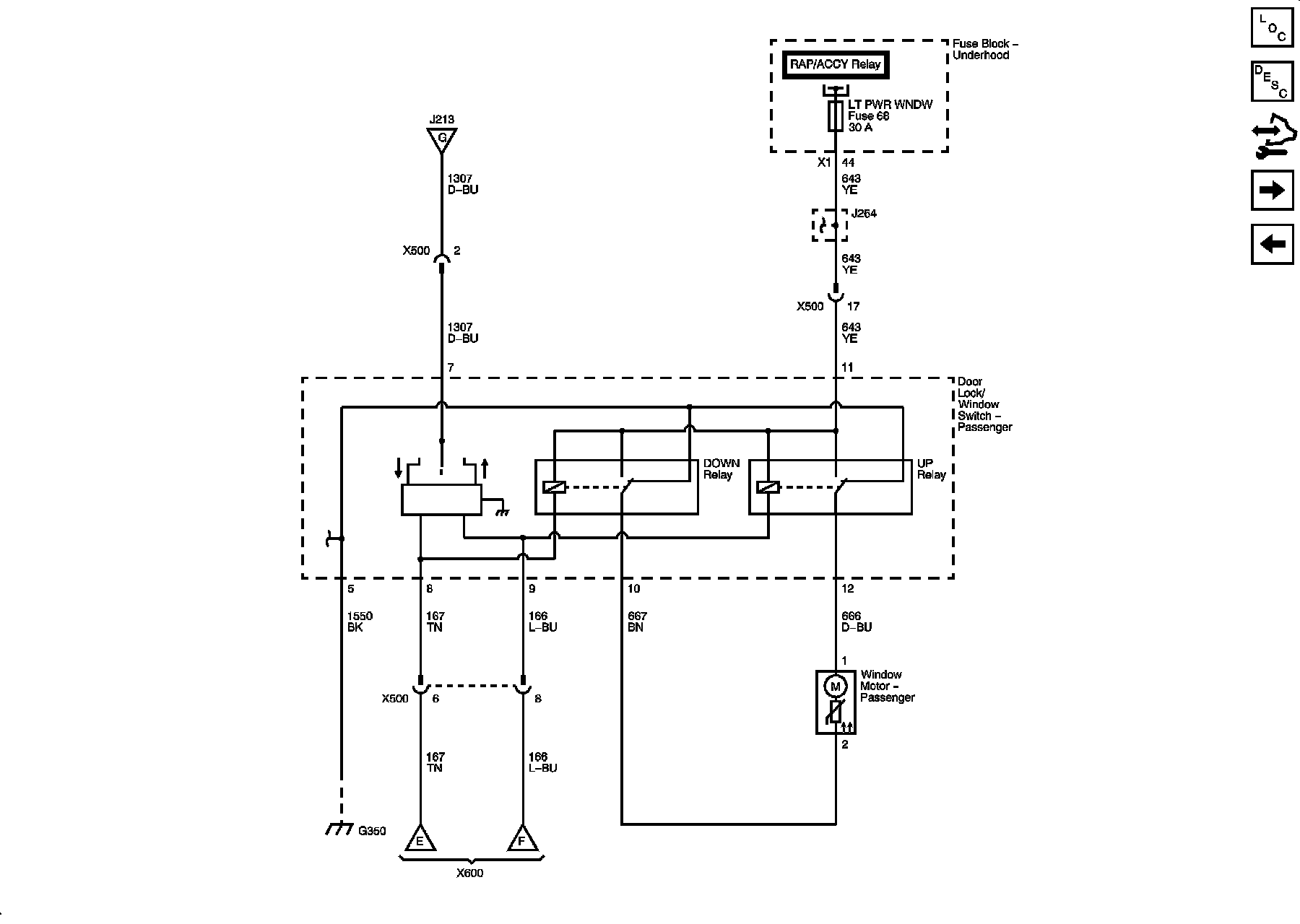

Passenger Door - LHD





Passenger Door - RHD

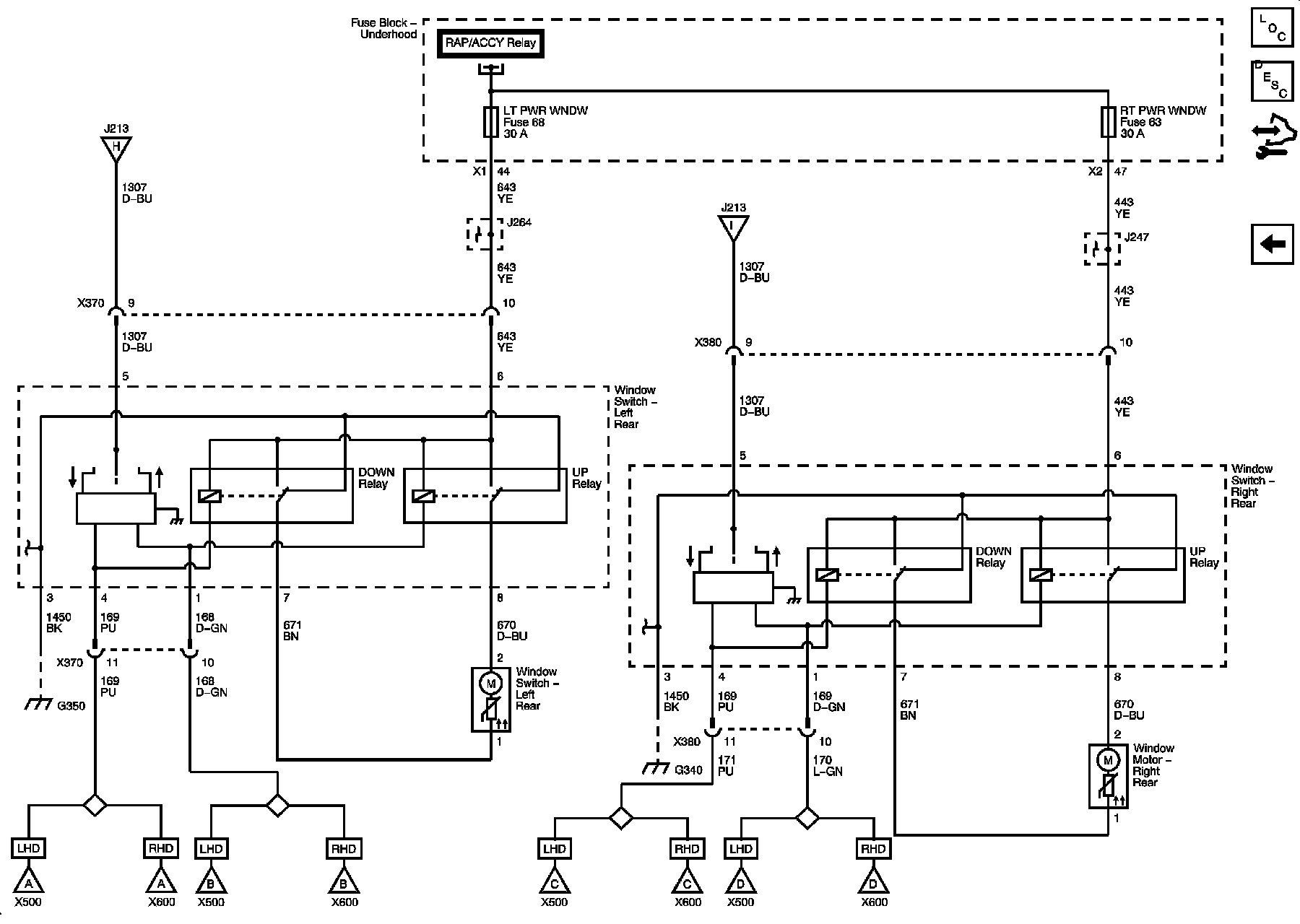

Rear Doors
