Transmission Control Systems
Automatic Transmission Controls Schematics
Module Power, Ground, and Serial Data
Shift Controls
Pressure and Temperature Controls
PNP, VSS and Tow/Haul Signals
Automatic Transmission Controls Schematics

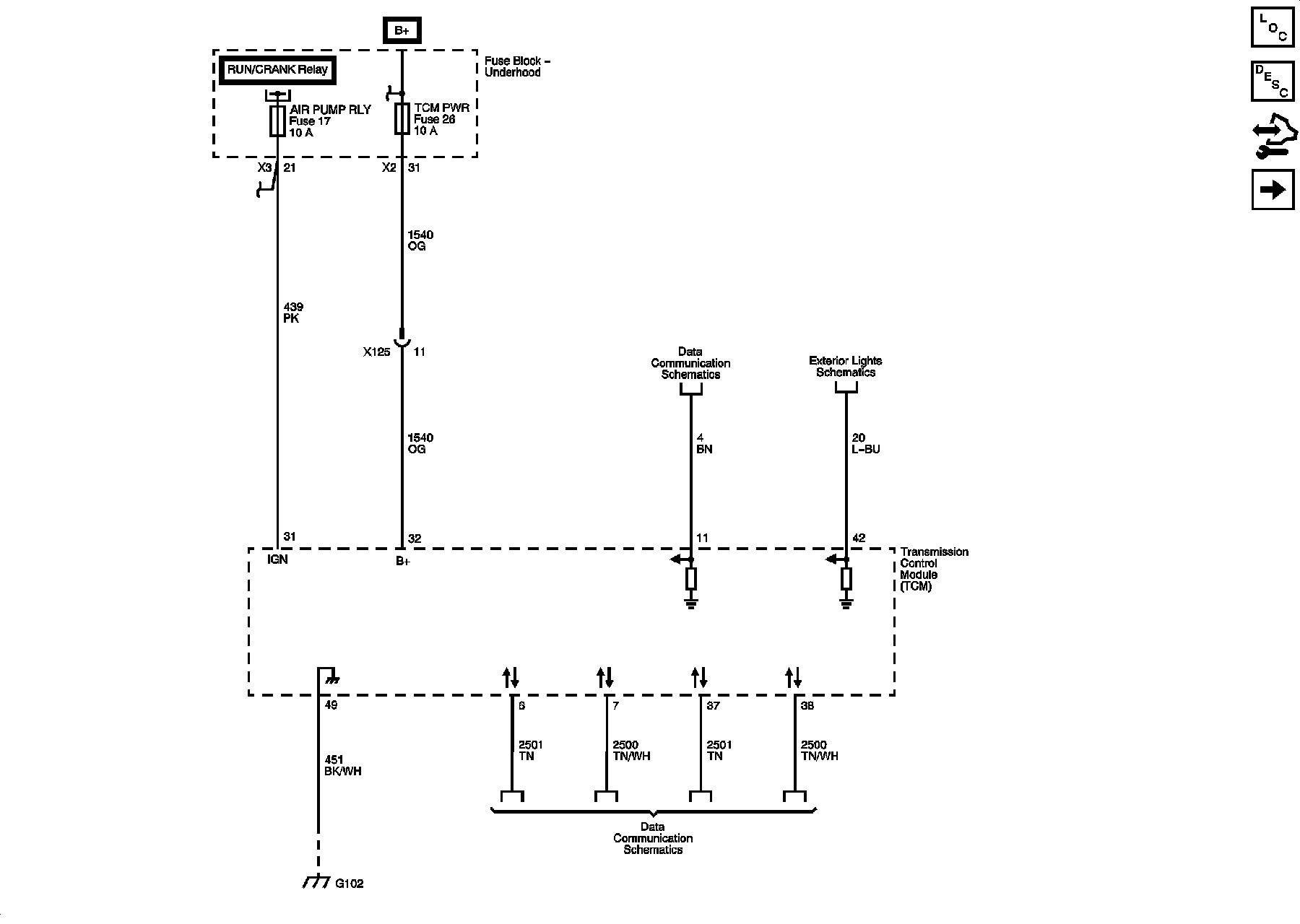

Module Power, Ground, and Serial Data

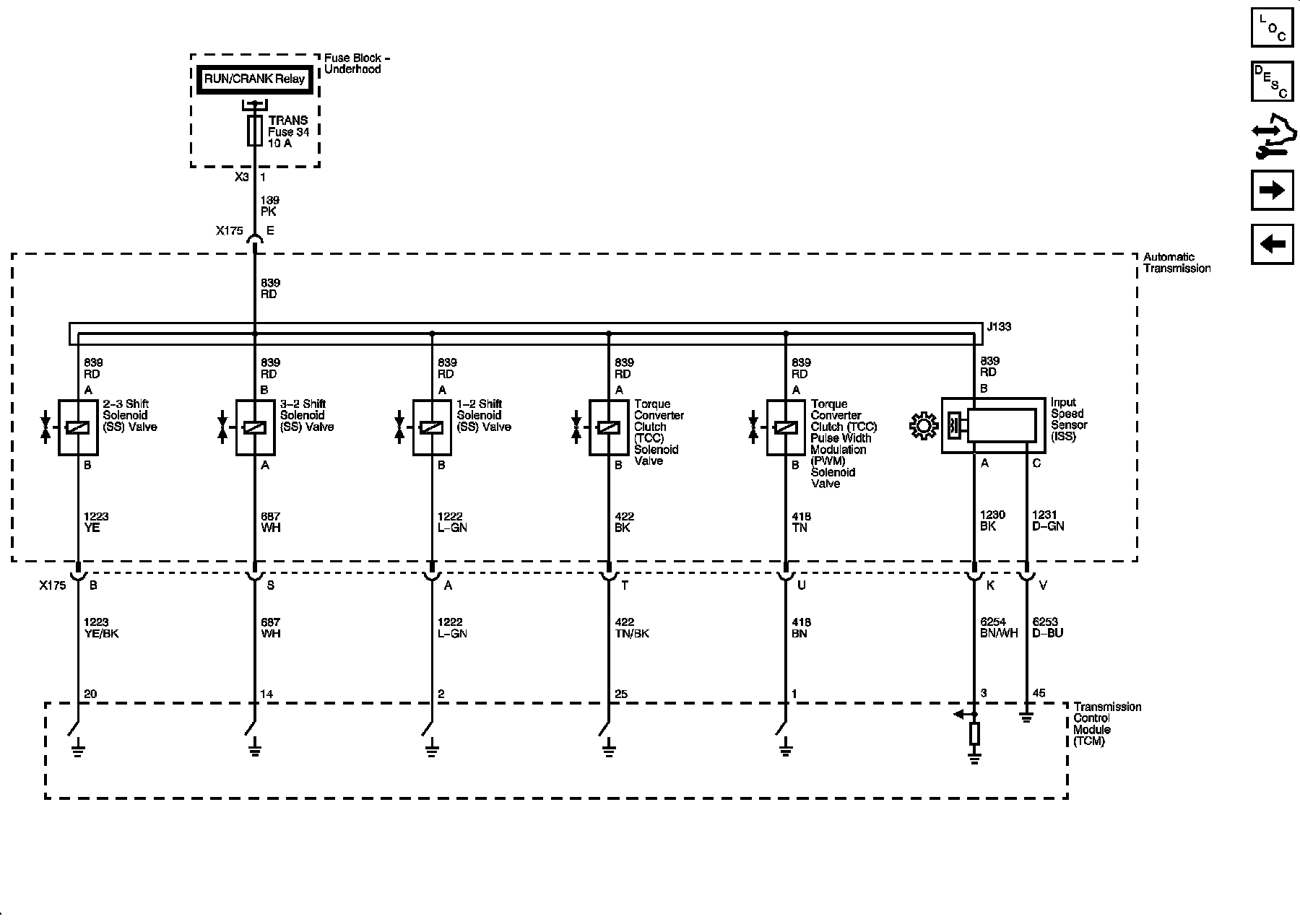

Shift Controls

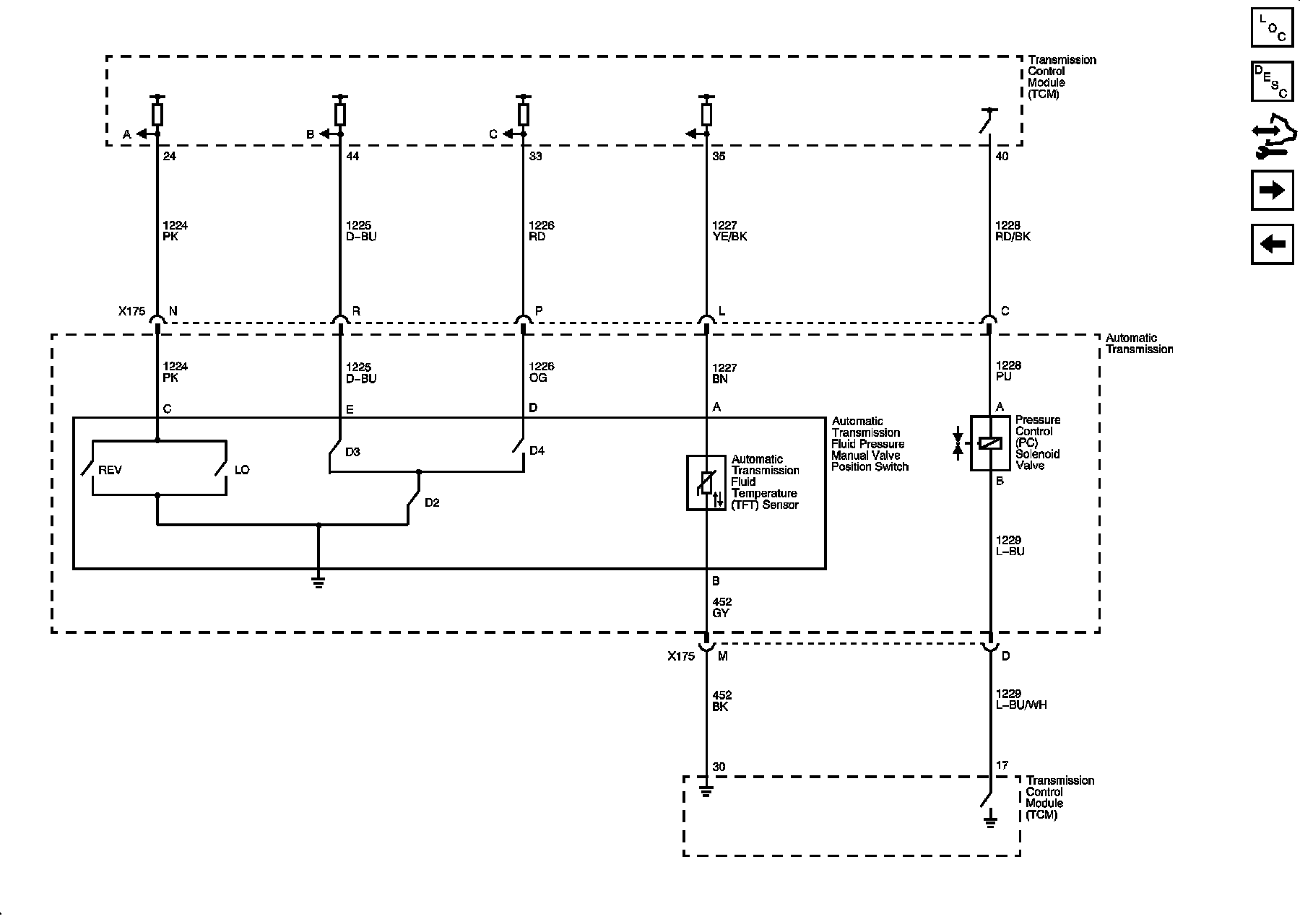

Pressure and Temperature Controls

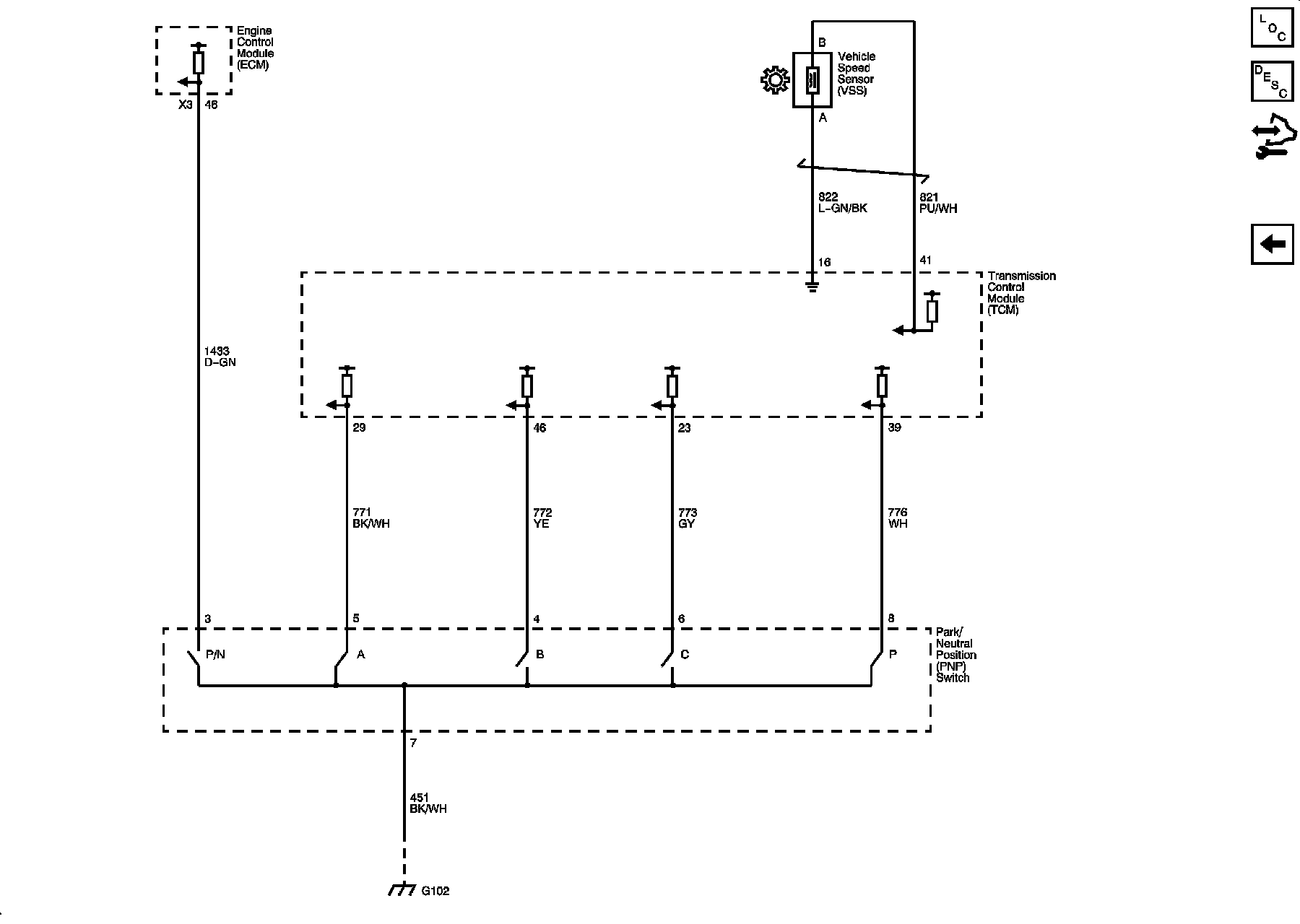

PNP, VSS and Tow/Haul Signals
