Door Lock/Indicator Schematics

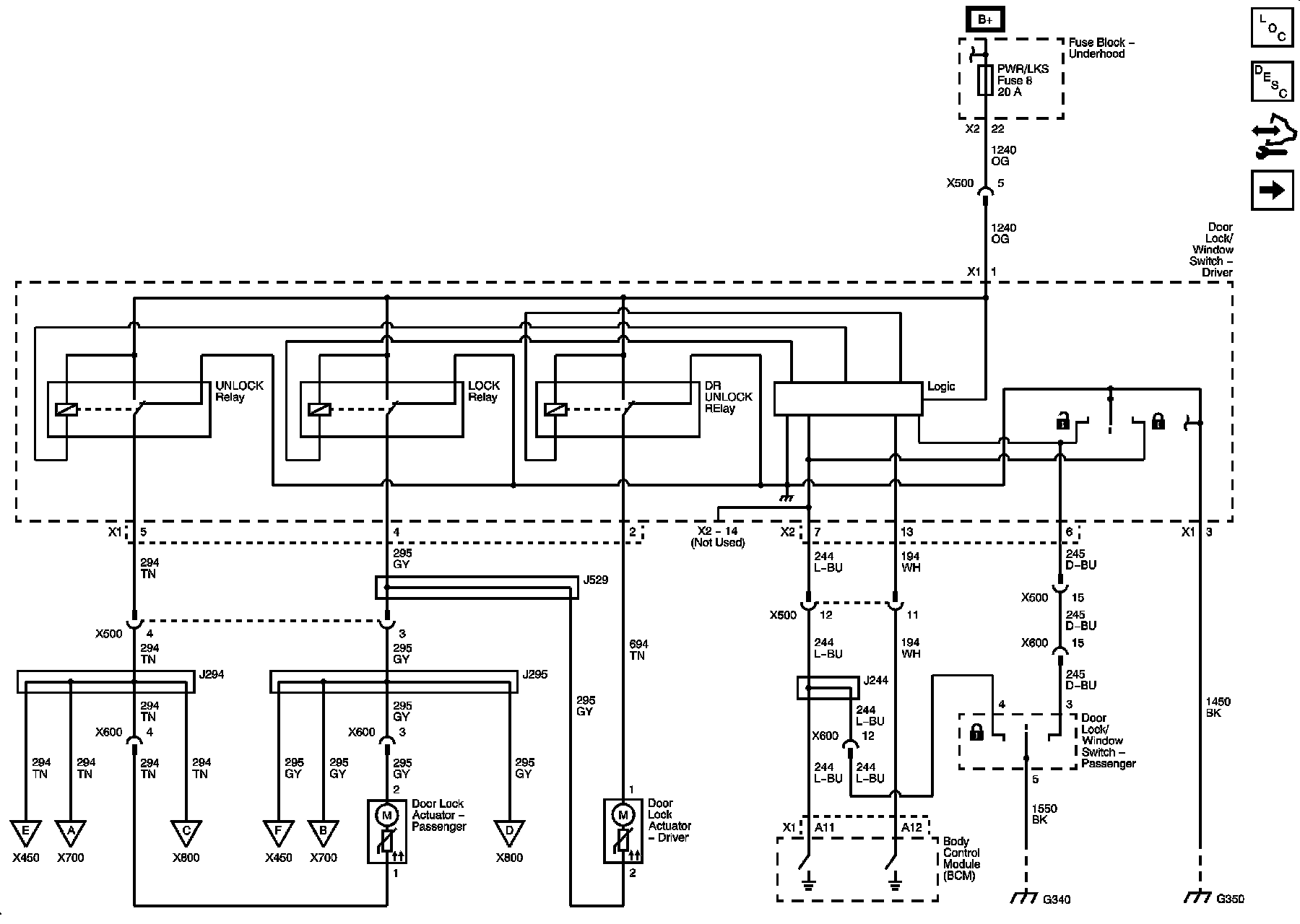

Actuator Controls and Front Actuators - LHD

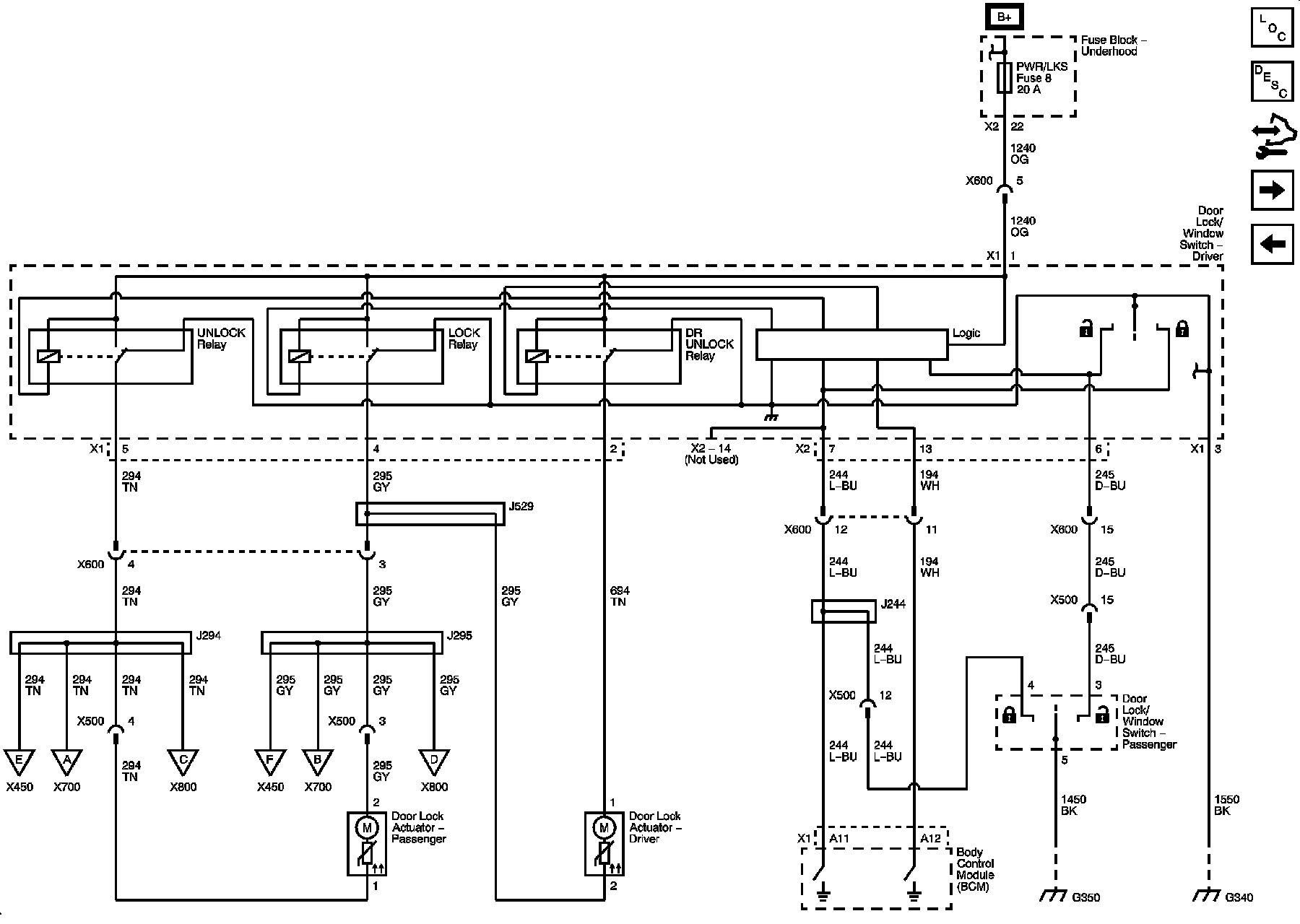

Actuator Controls and Front Actuators - RHD





Rear Door and Endgate Actuators





Door Ajar Switch Signals
