Power Window Motor

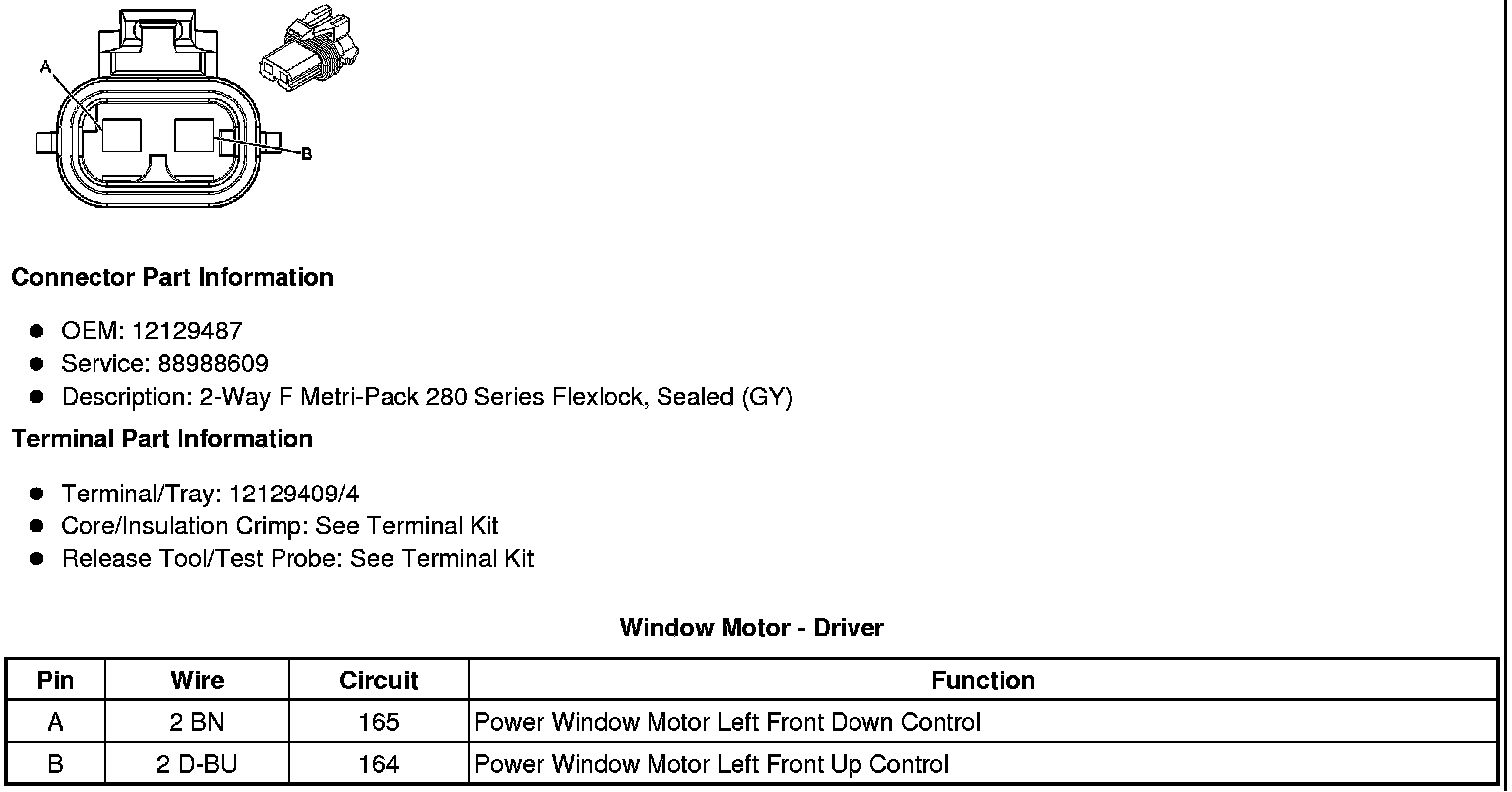

Window Motor - Driver

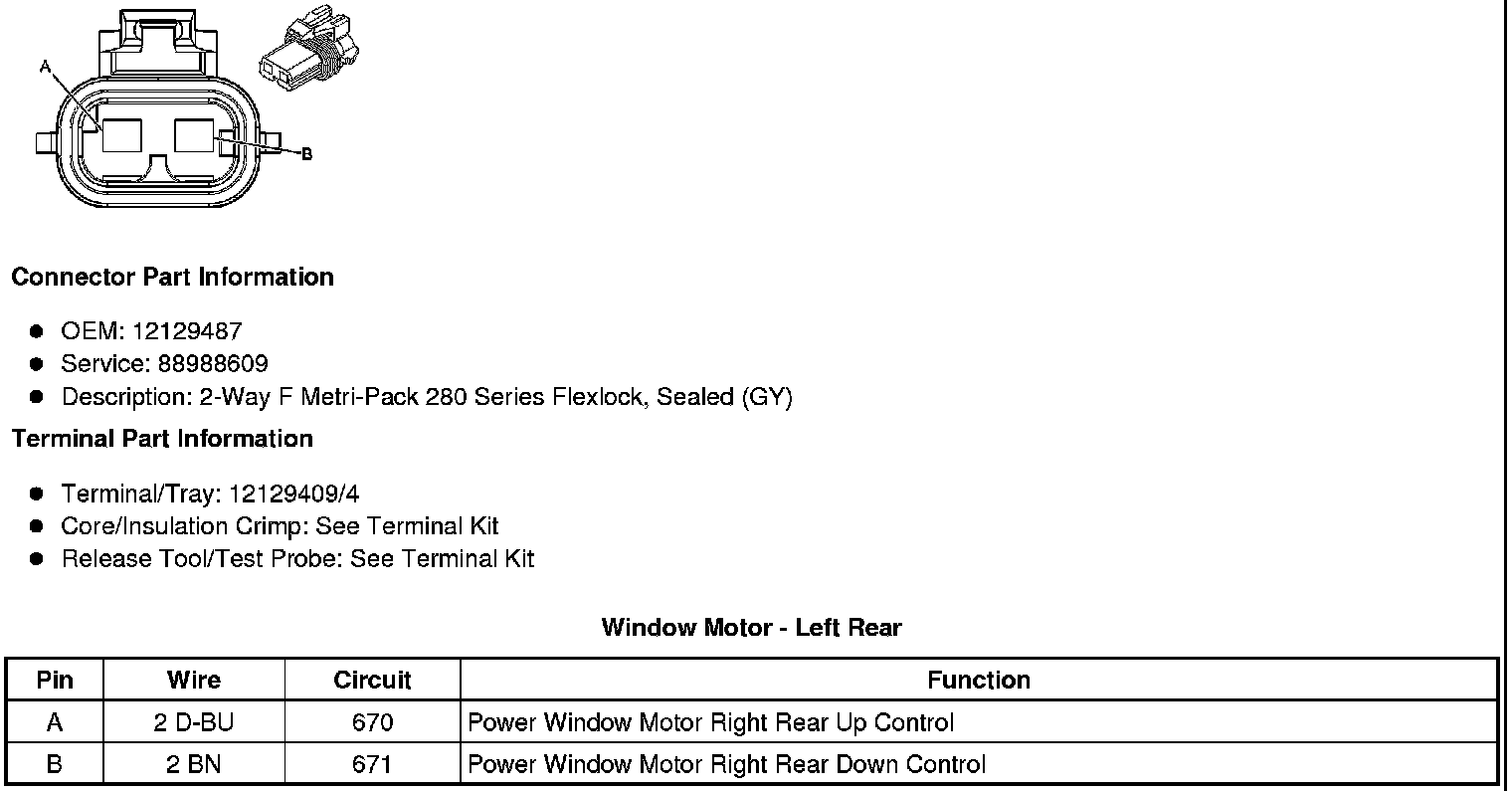

Window Motor - Left Rear

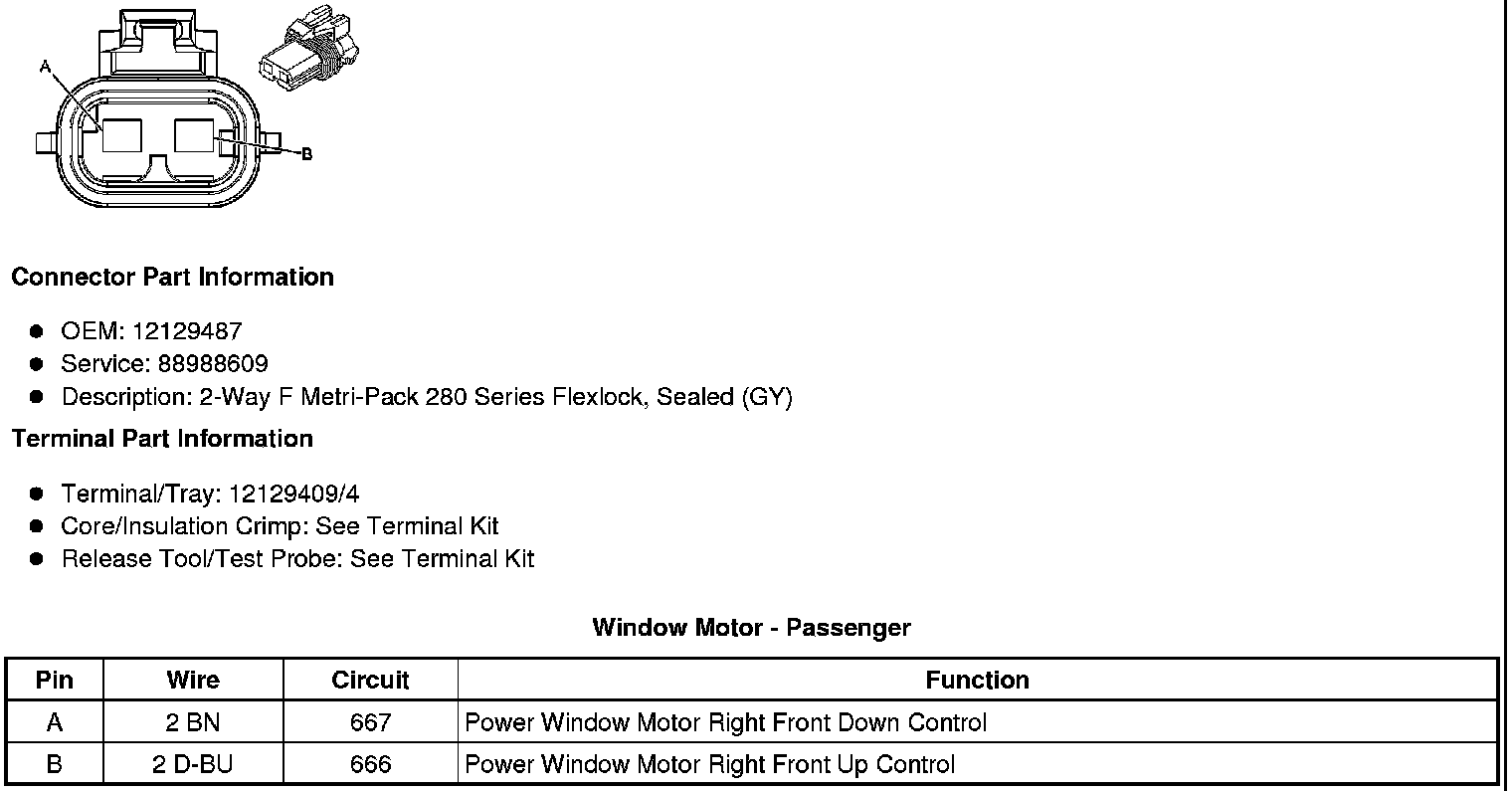

Window Motor - Passenger






Window Motor - Right Rear
