Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch
Door Lock/Window Switch - Driver X1

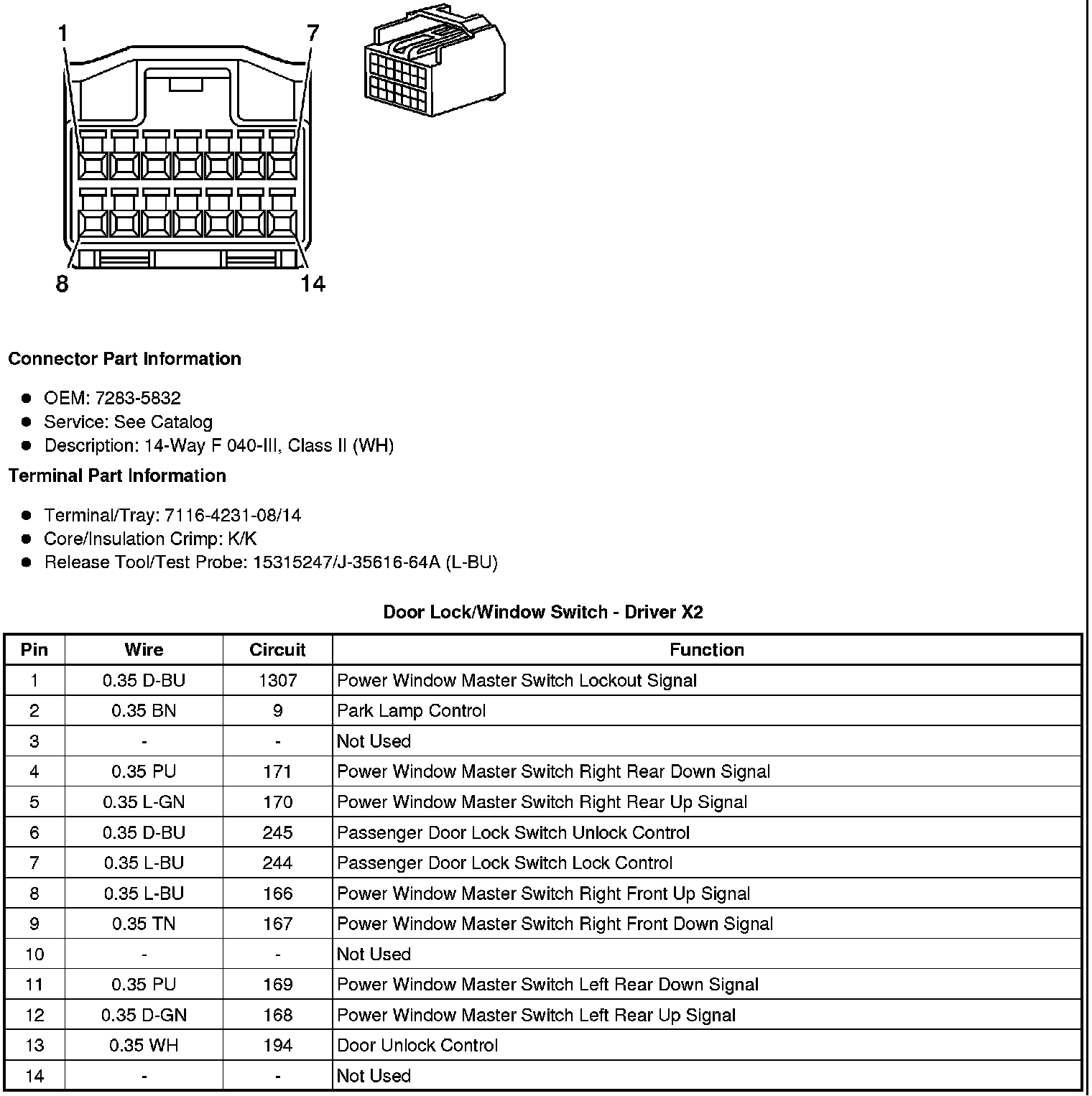

Door Lock/Window Switch - Driver X2

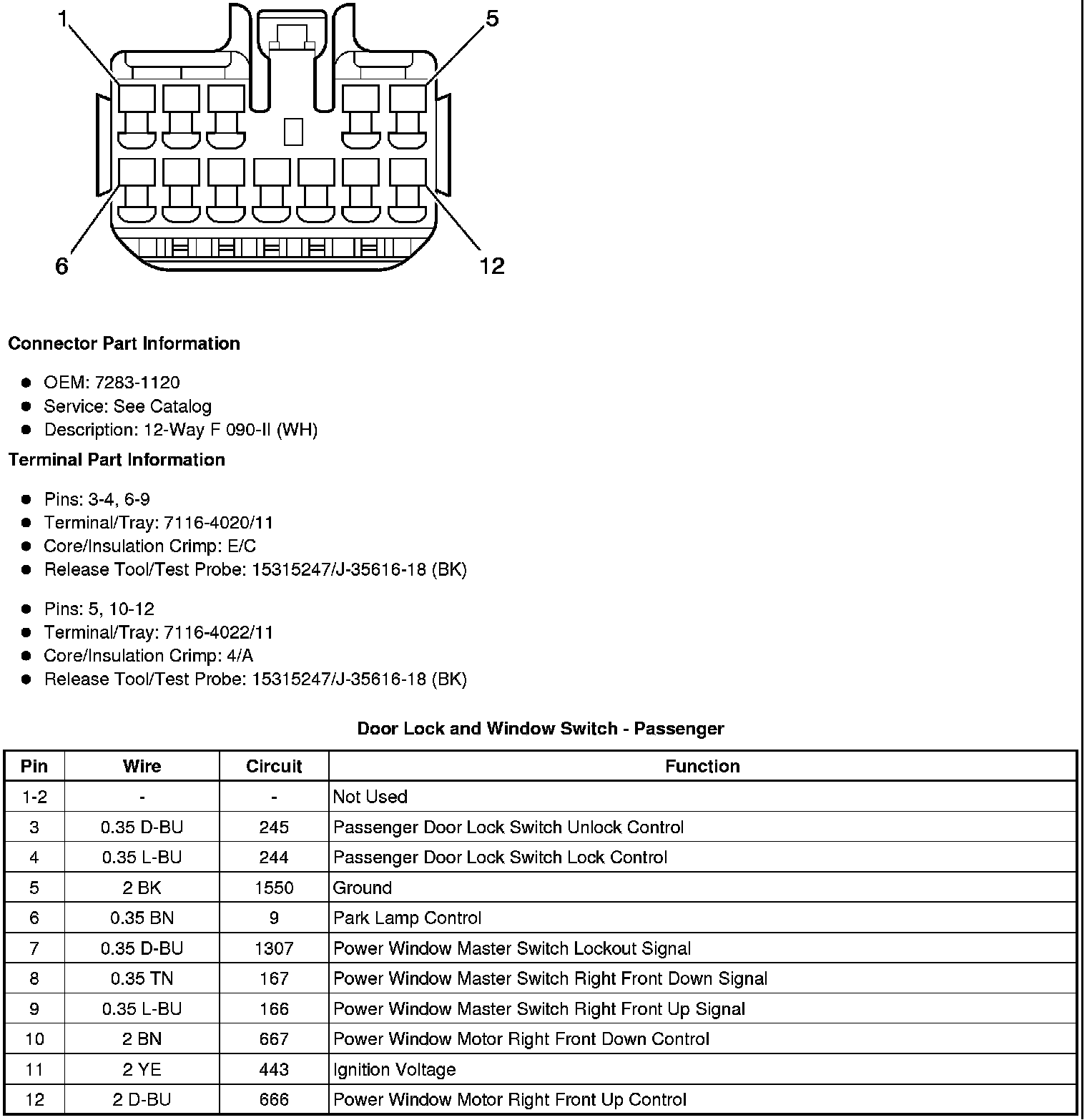

Door Lock/Window Switch - Passenger
