Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor

Impact Sensor

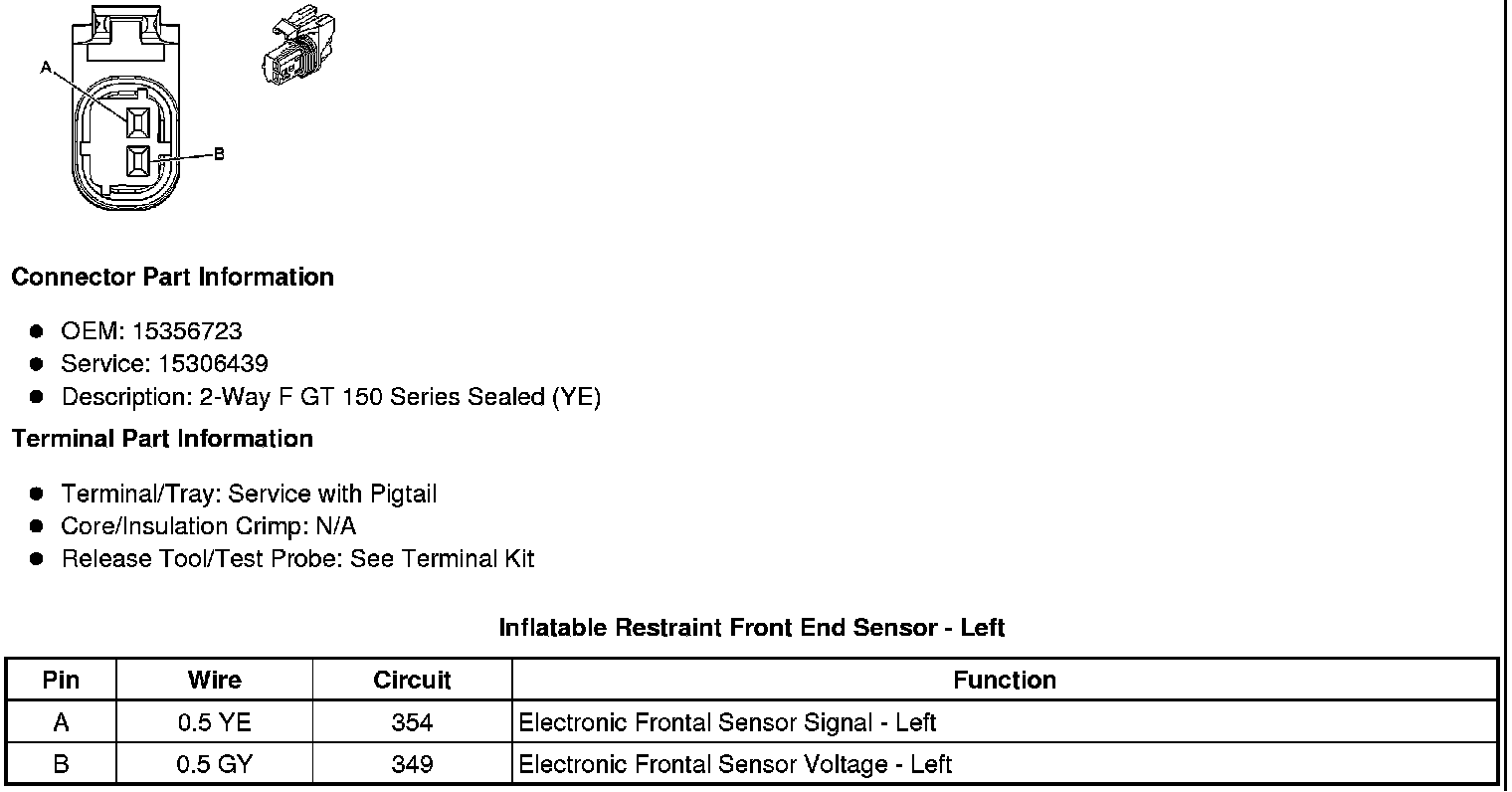

Inflatable Restraint Front End Sensor - Left

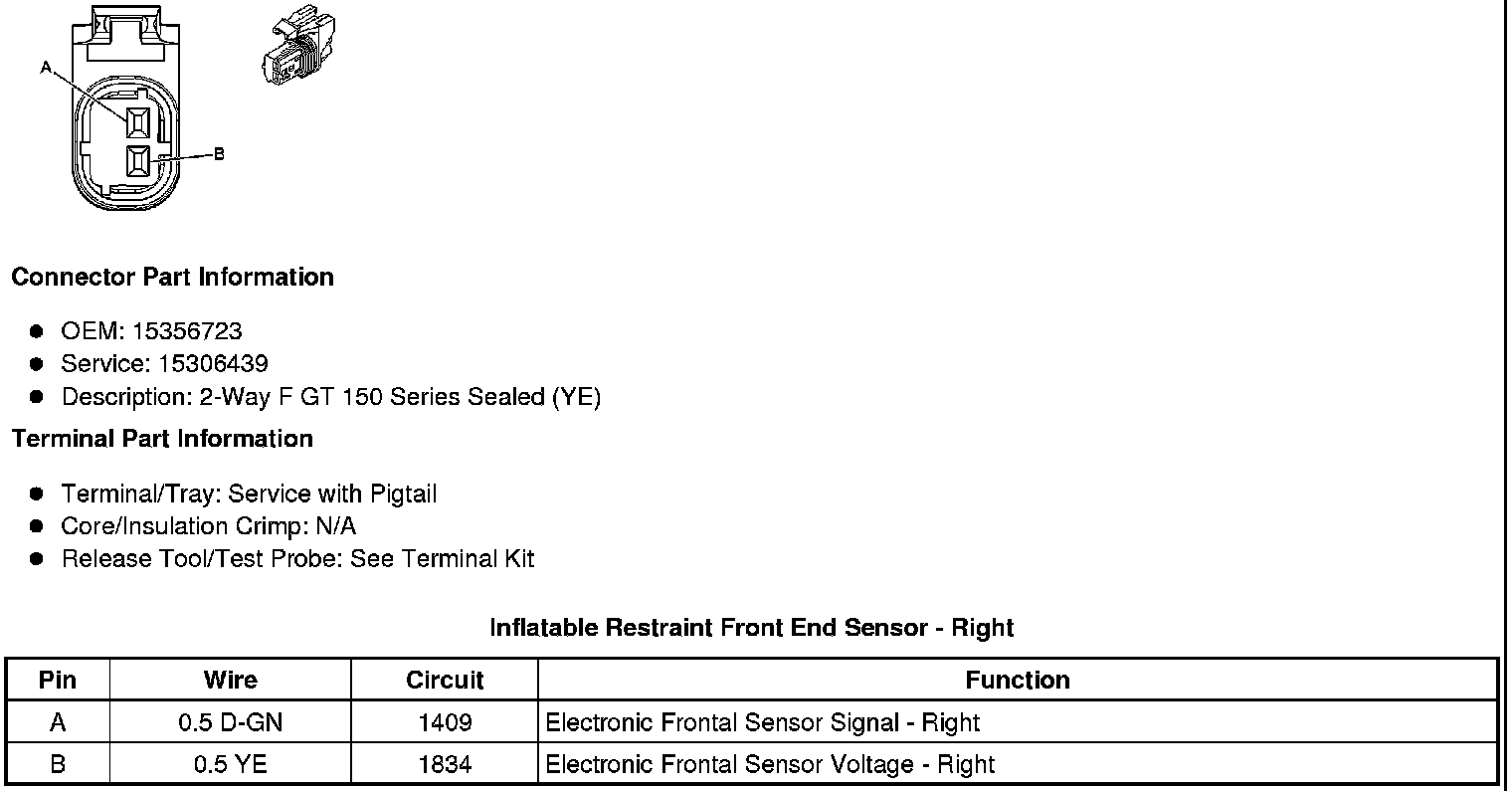

Inflatable Restraint Front End Sensor - Right

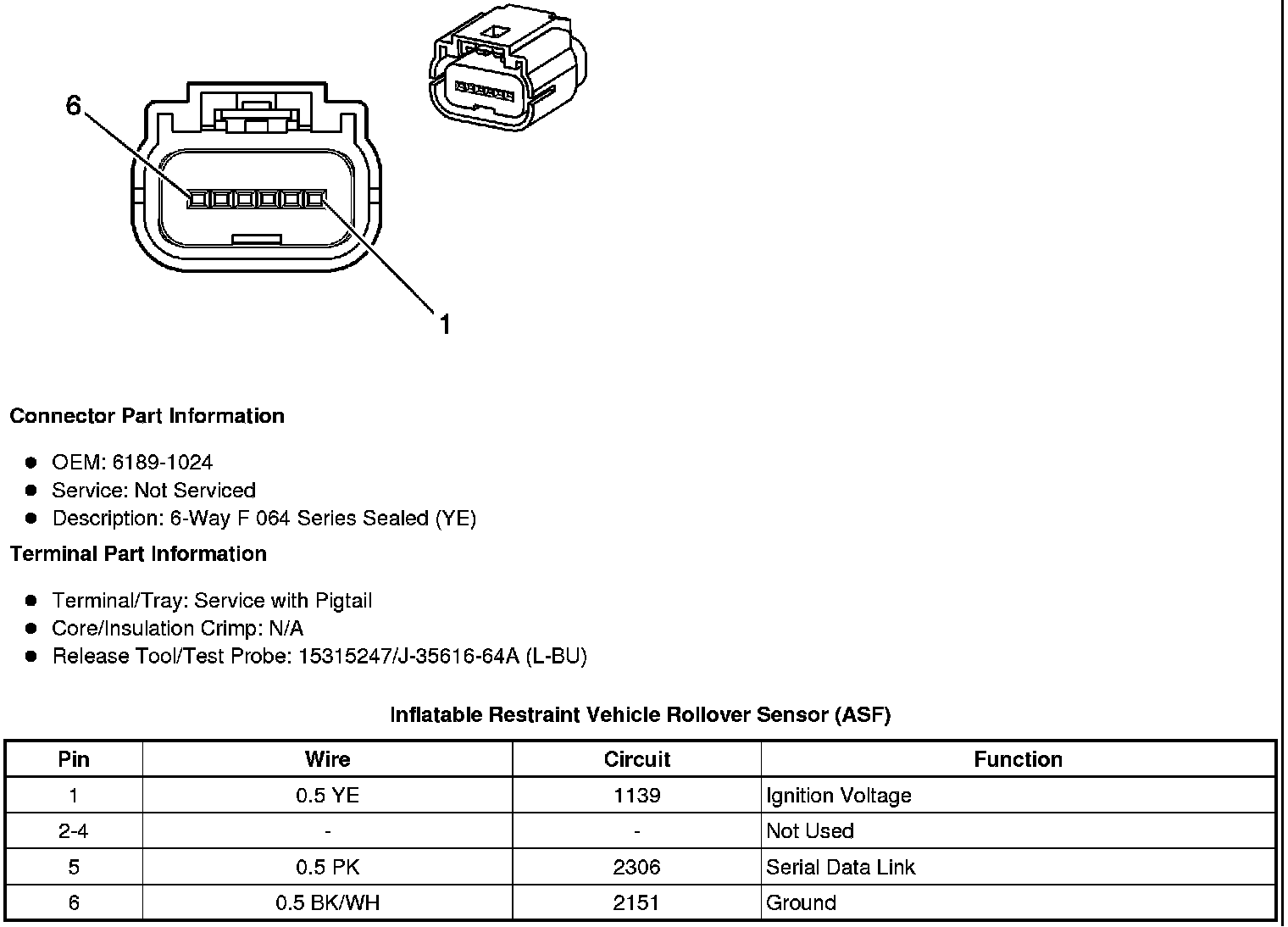

Inflatable Restraint Vehicle Rollover Sensor (ASF)
