lemon-mirror
:
Home
>>
Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
Headlamp
Headlamp
- Left (without EXP)

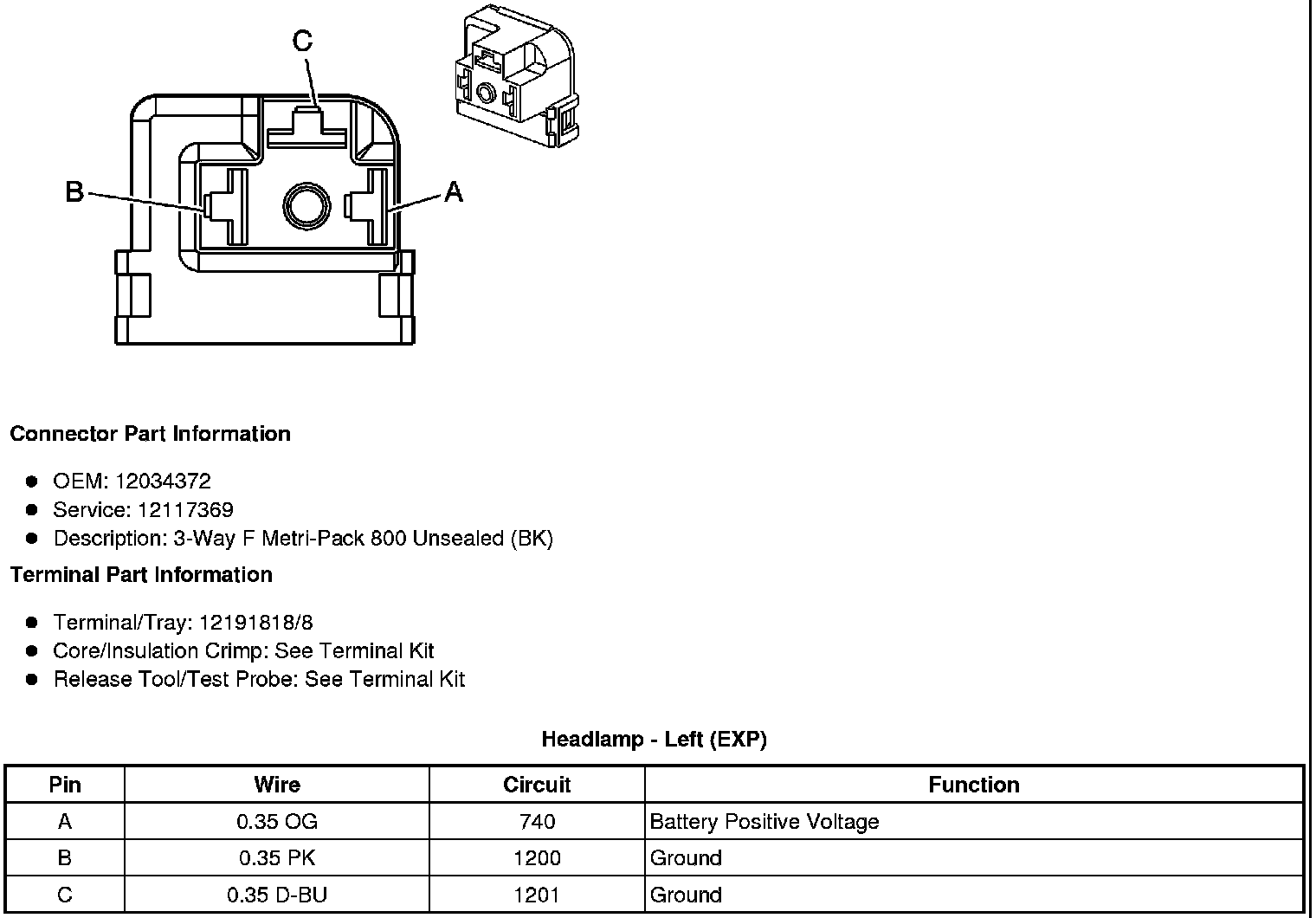

Headlamp
- Left (EXP)

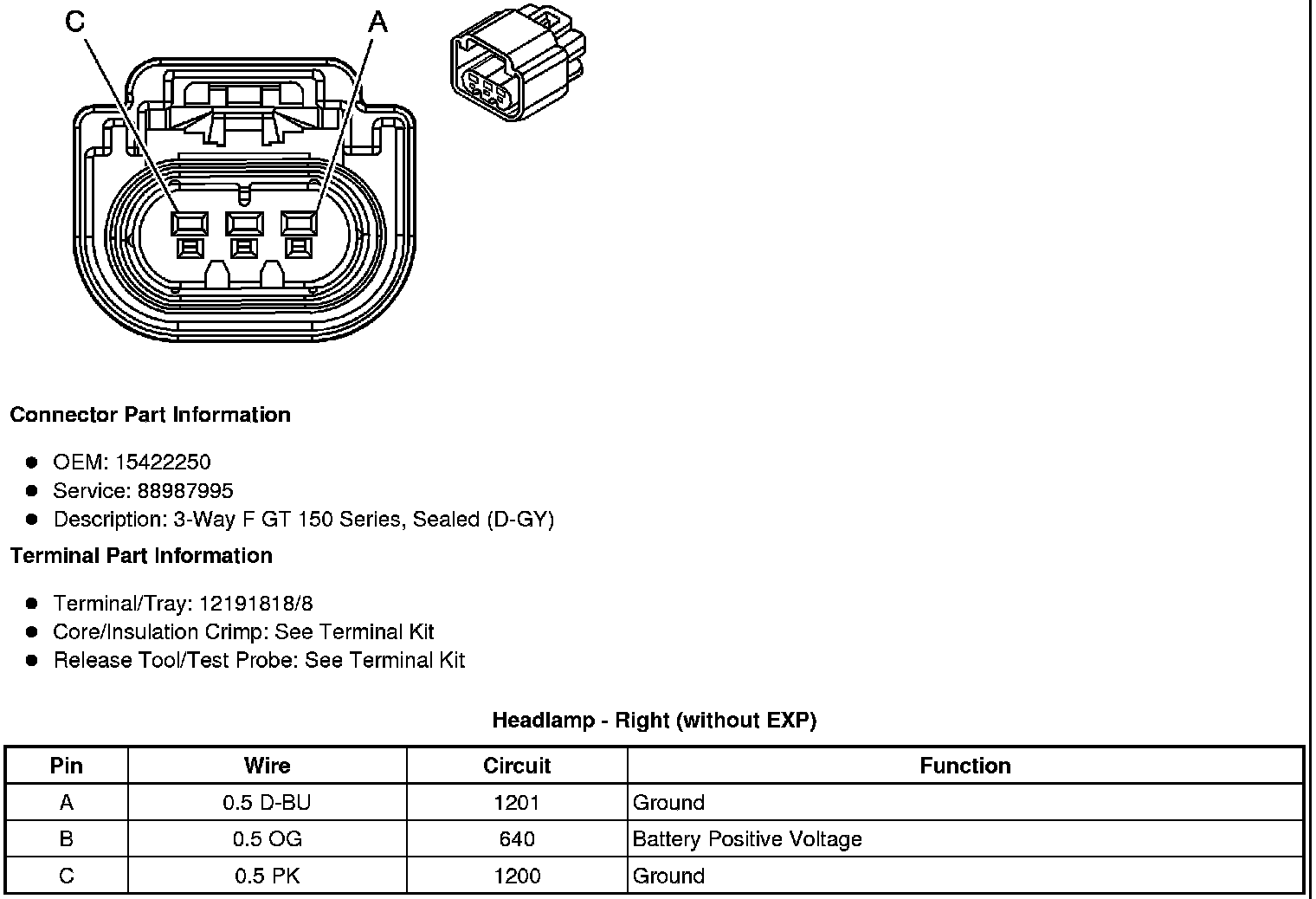

Headlamp
- Right (without EXP)
Headlamp
- Right (EXP)

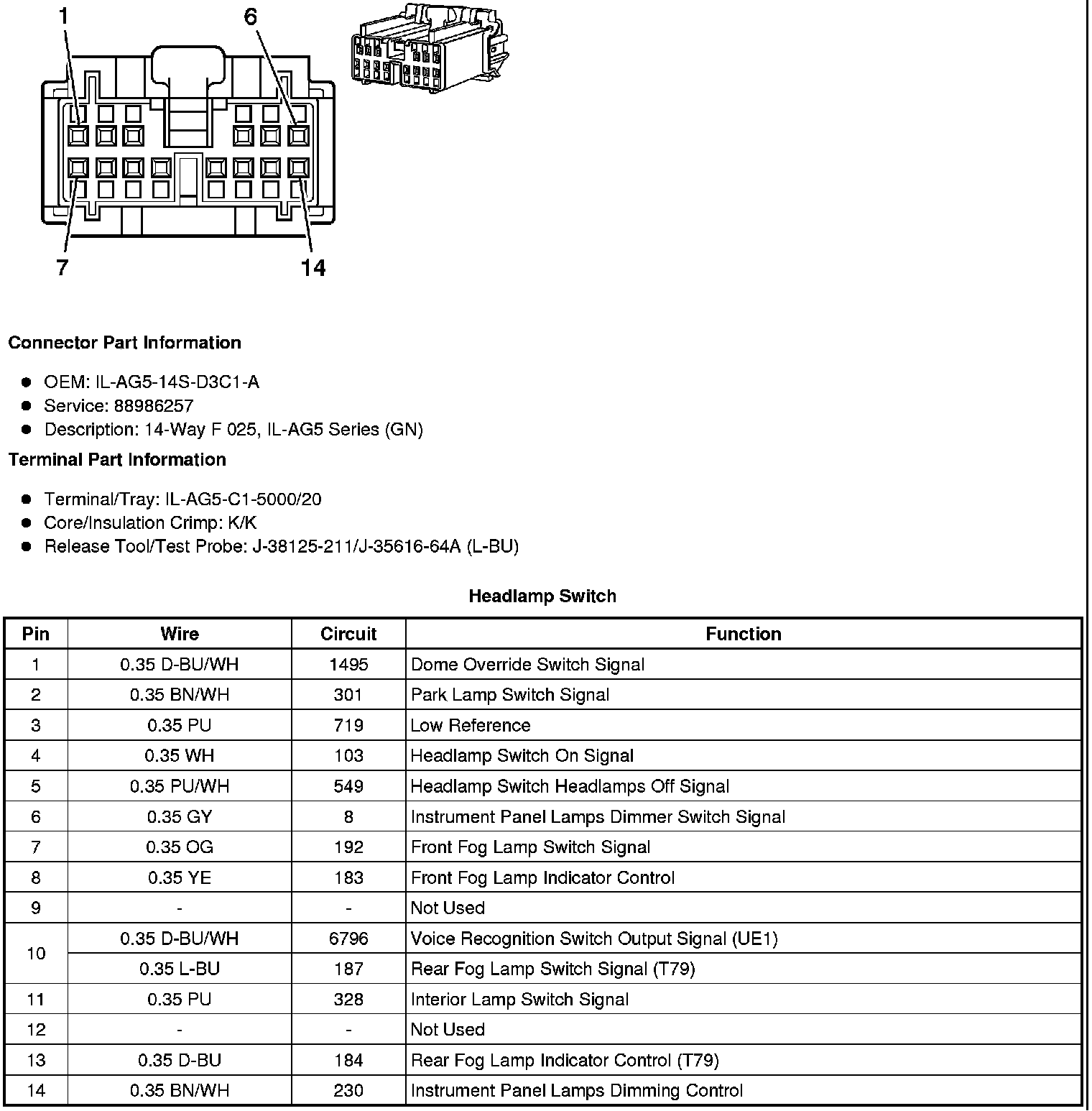

Headlamp Switch
