Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

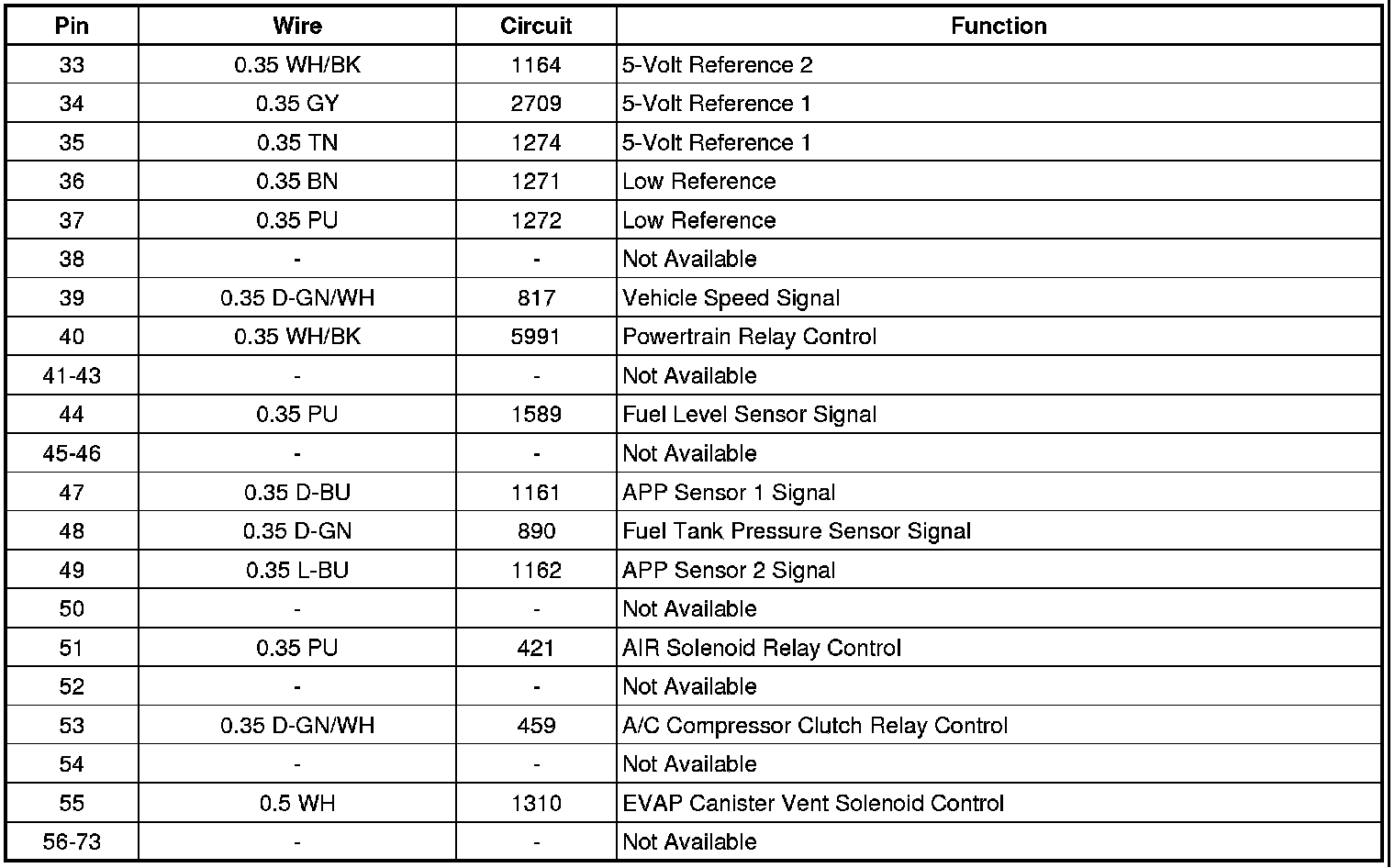

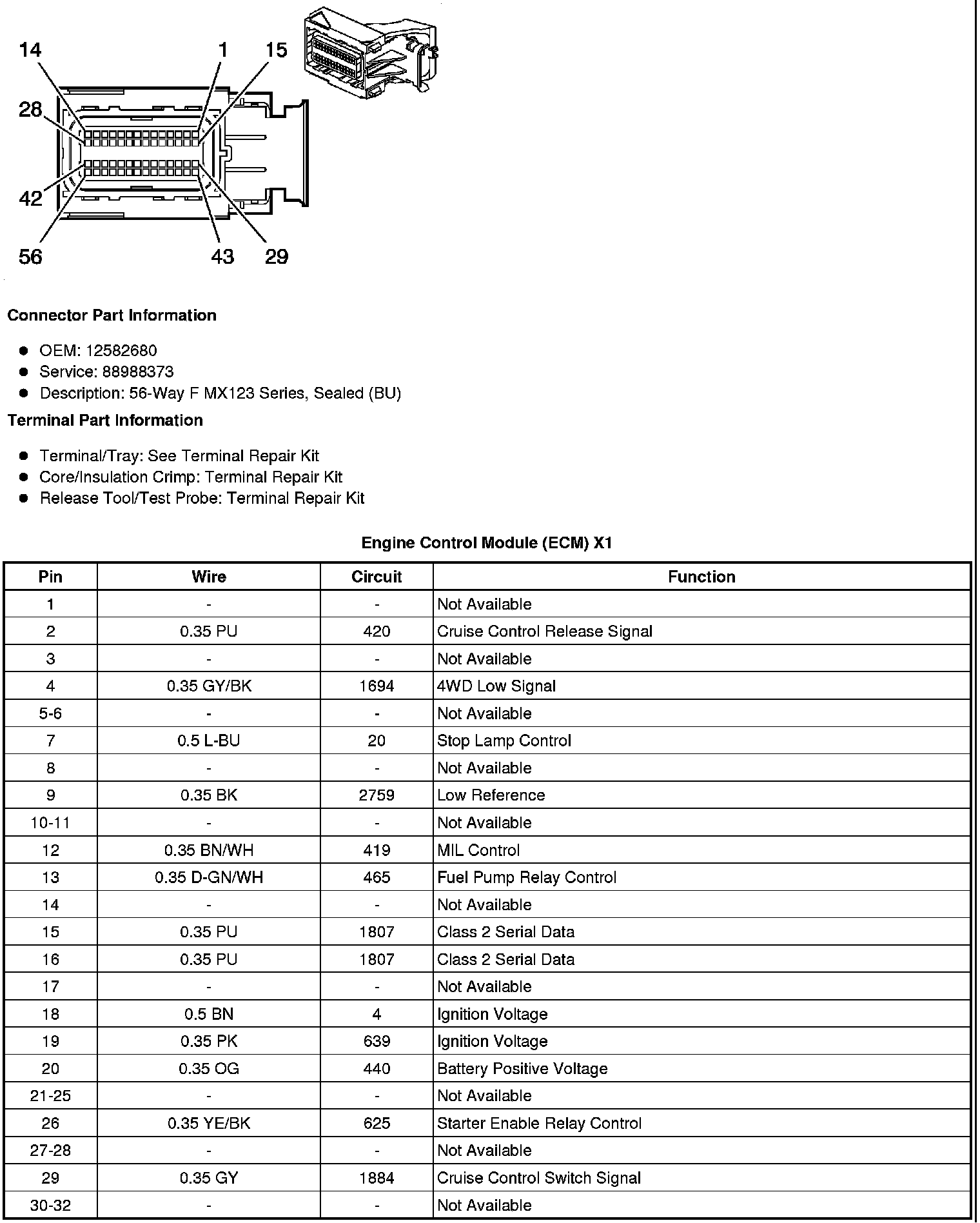

Engine Control Module (ECM) X1

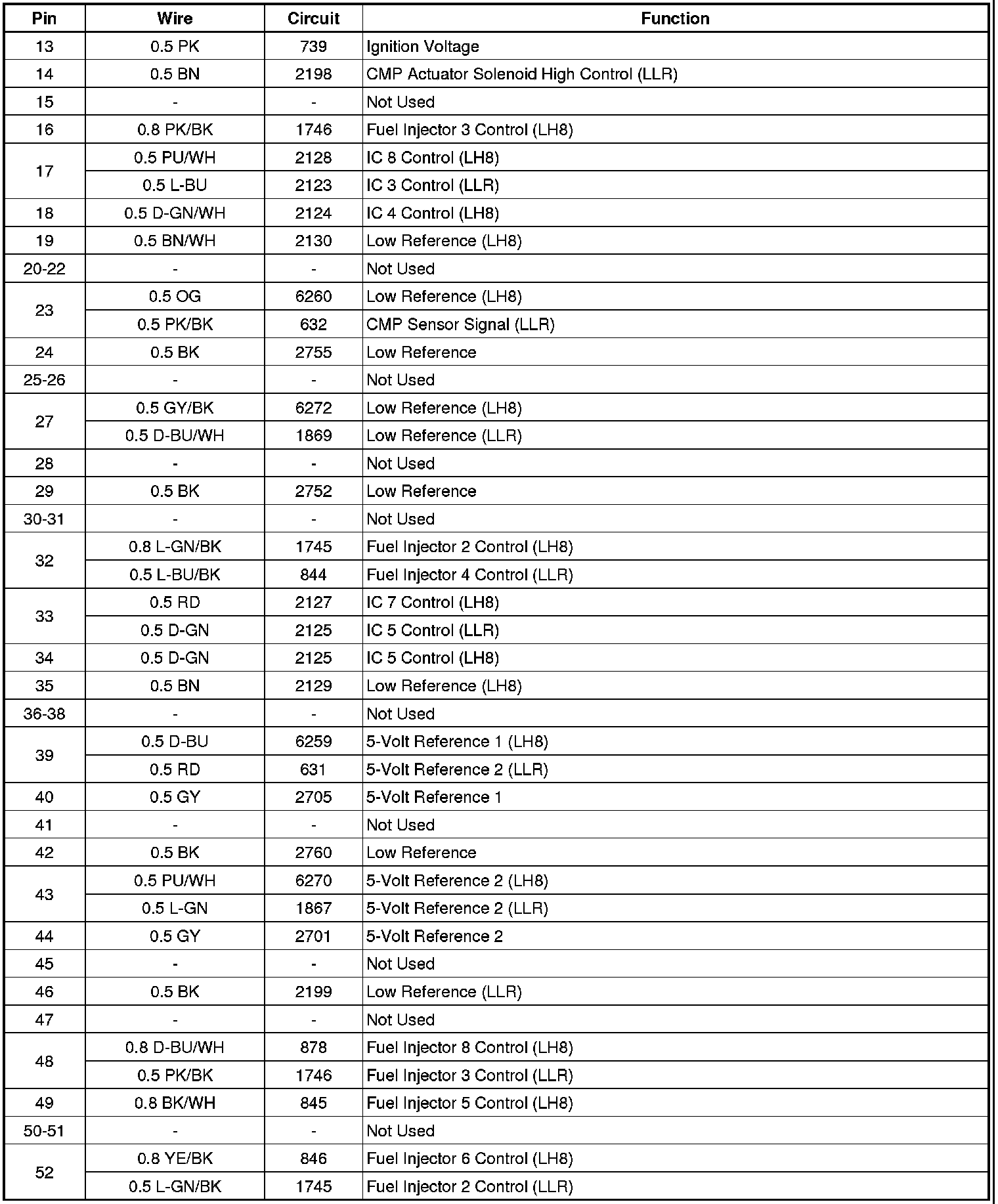

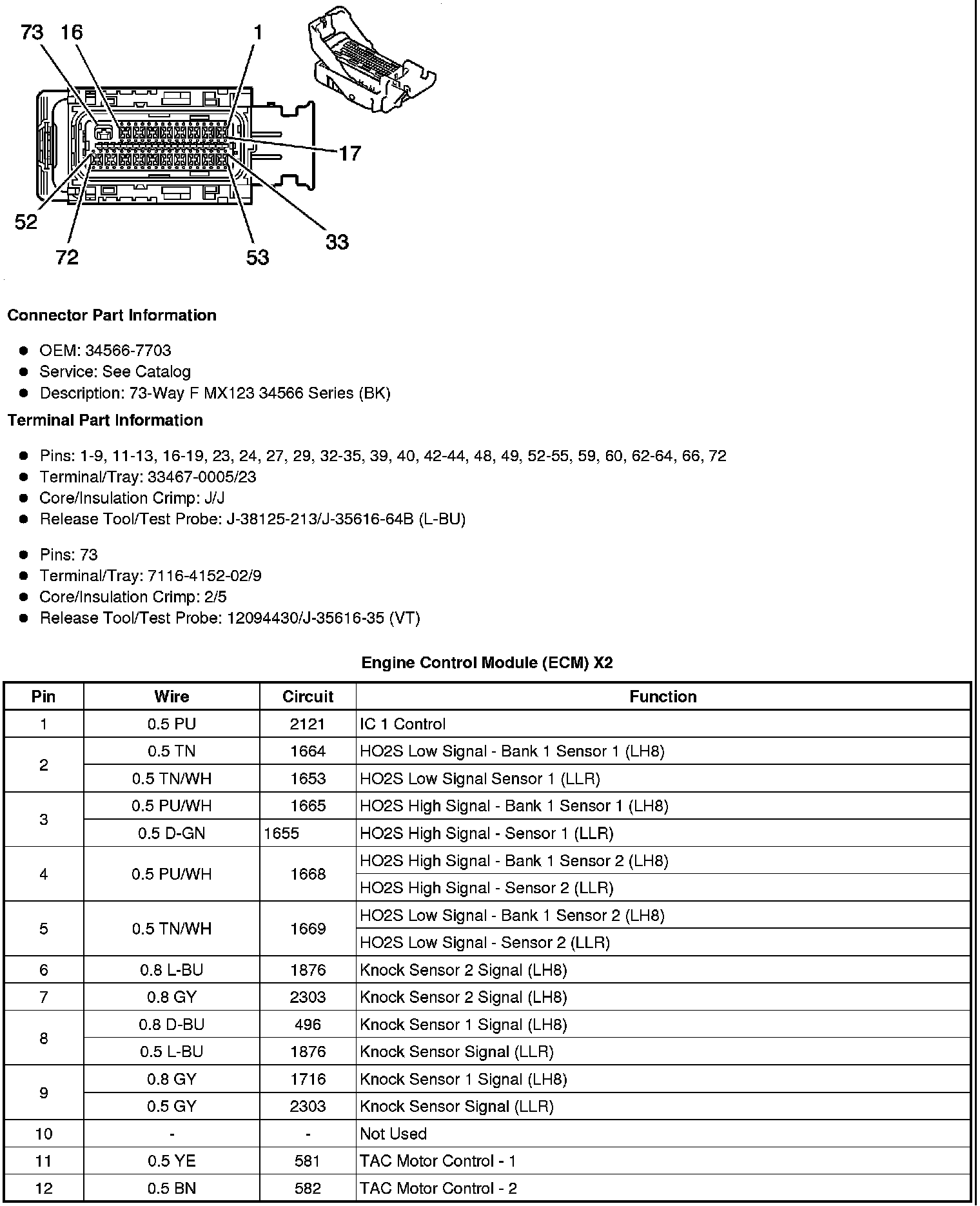

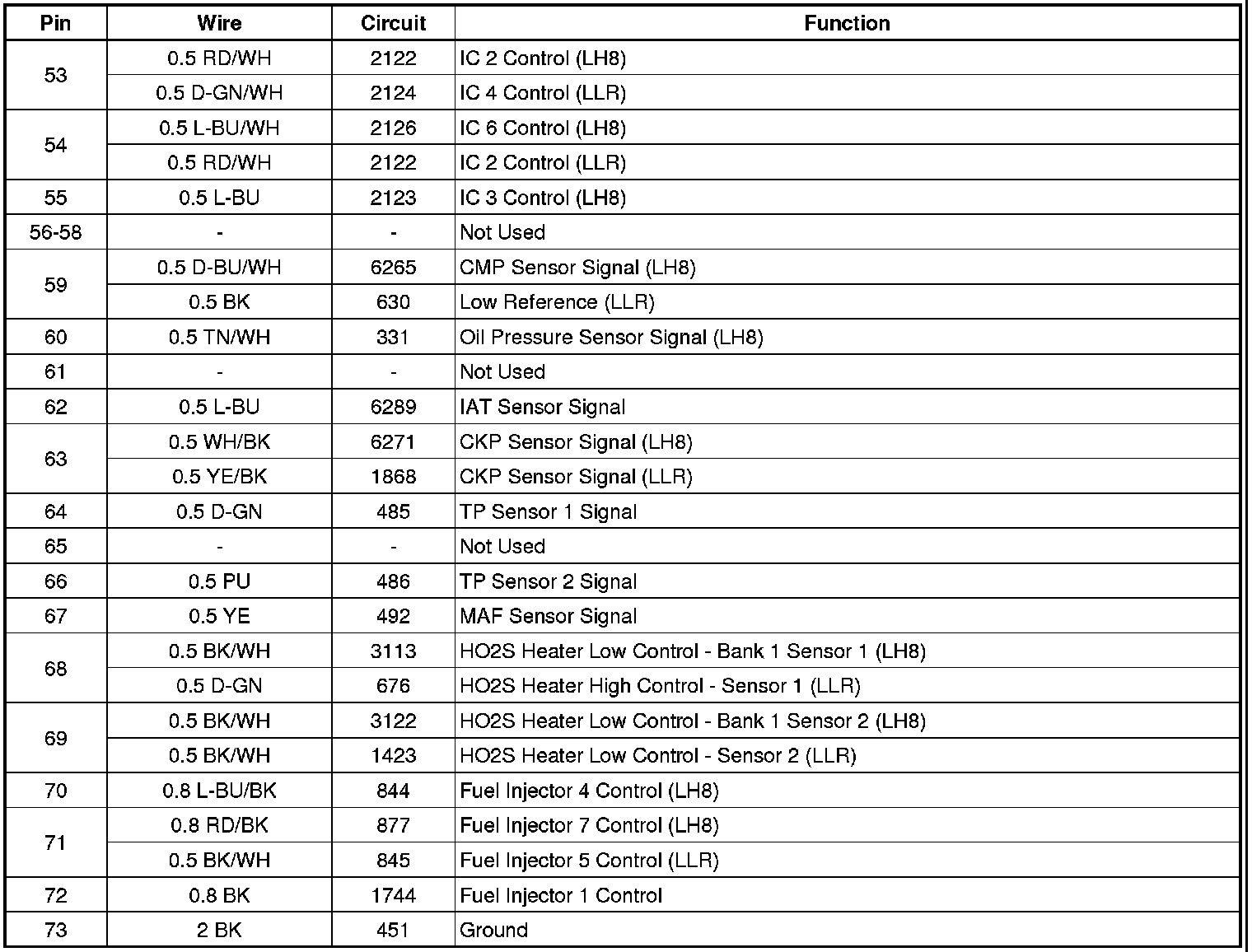

Engine Control Module (ECM) X2

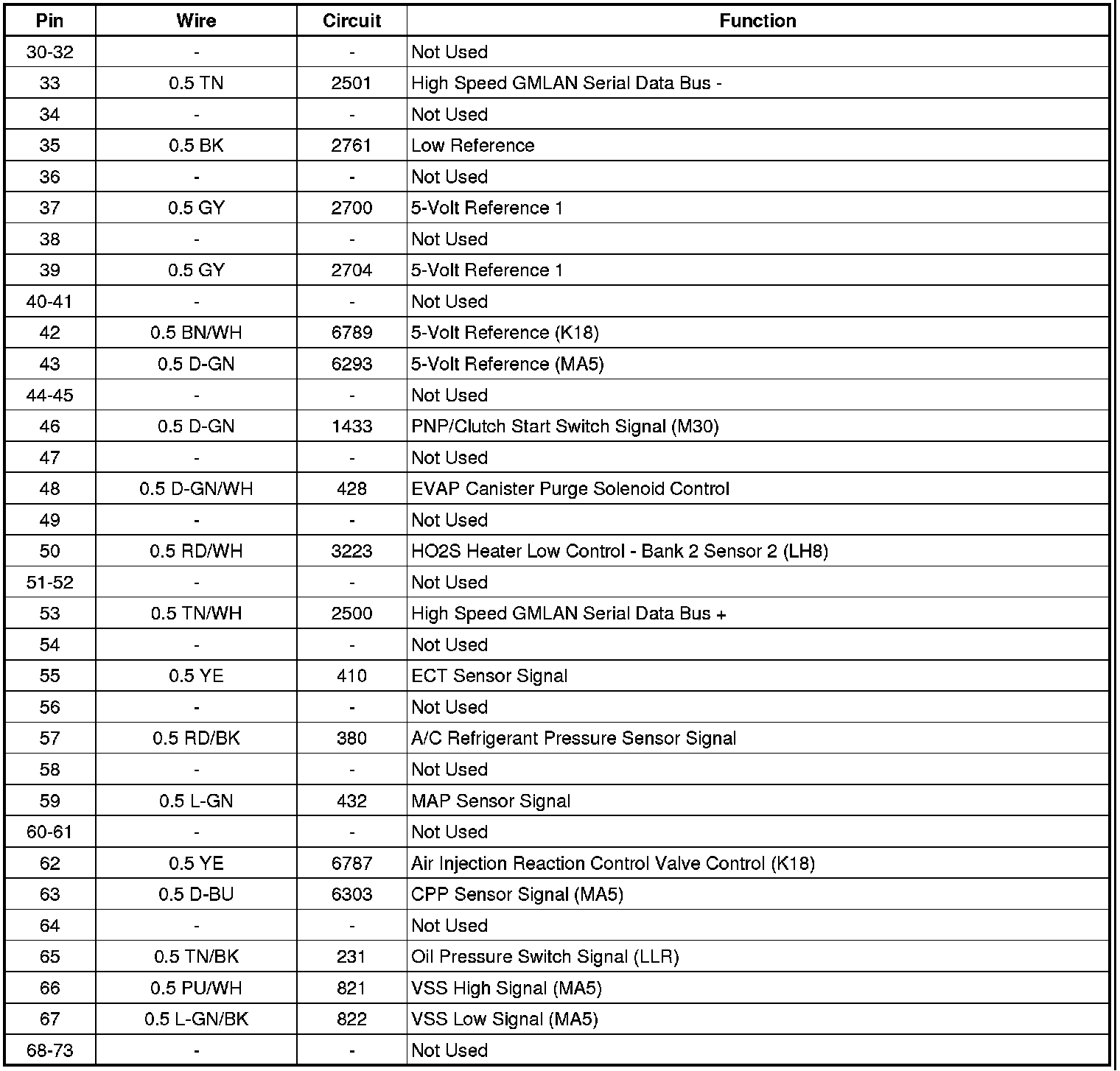

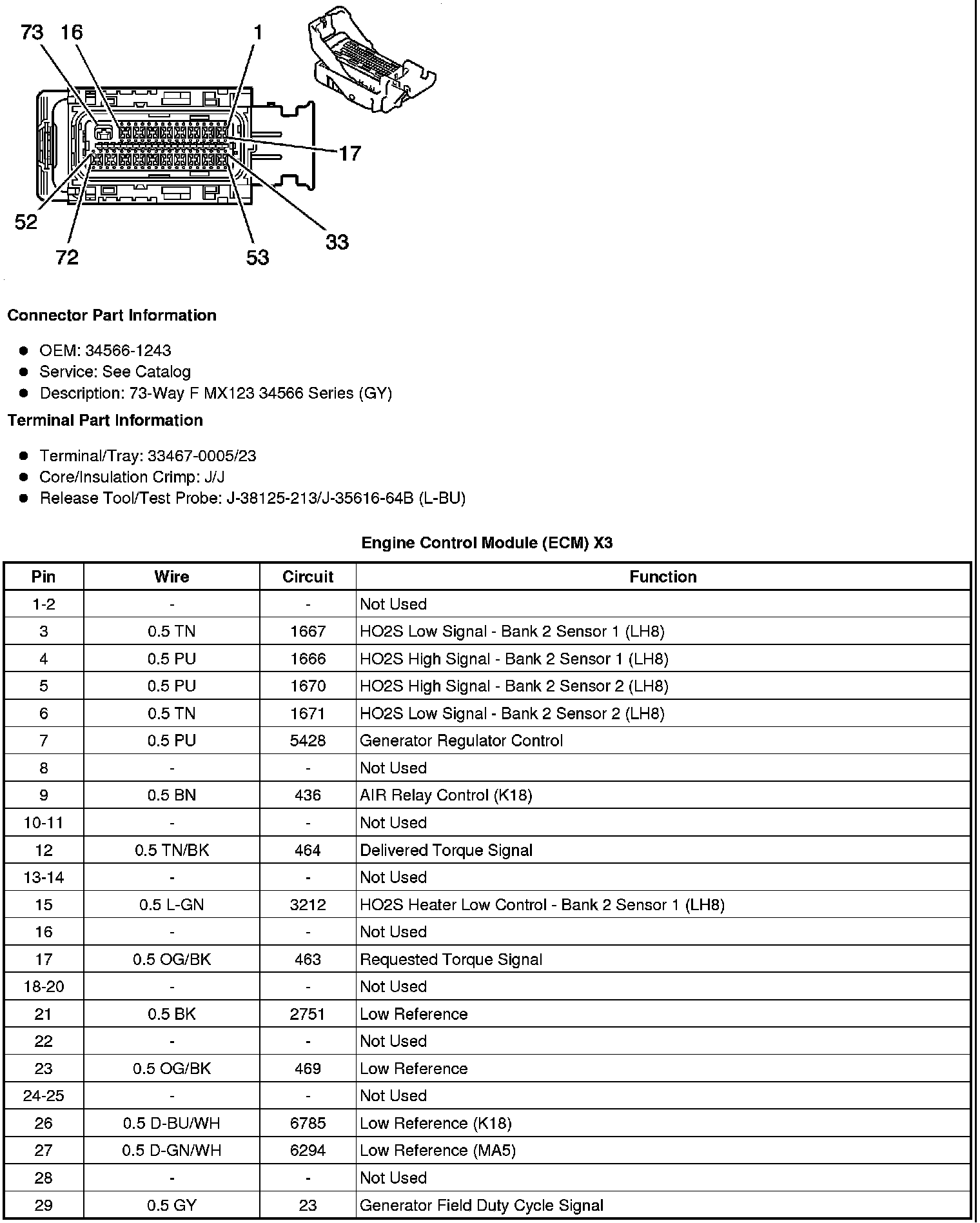

Engine Control Module (ECM) X3
