lemon-mirror
:
Home
>>
Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Crankshaft Position Sensor
Crankshaft Position Sensor

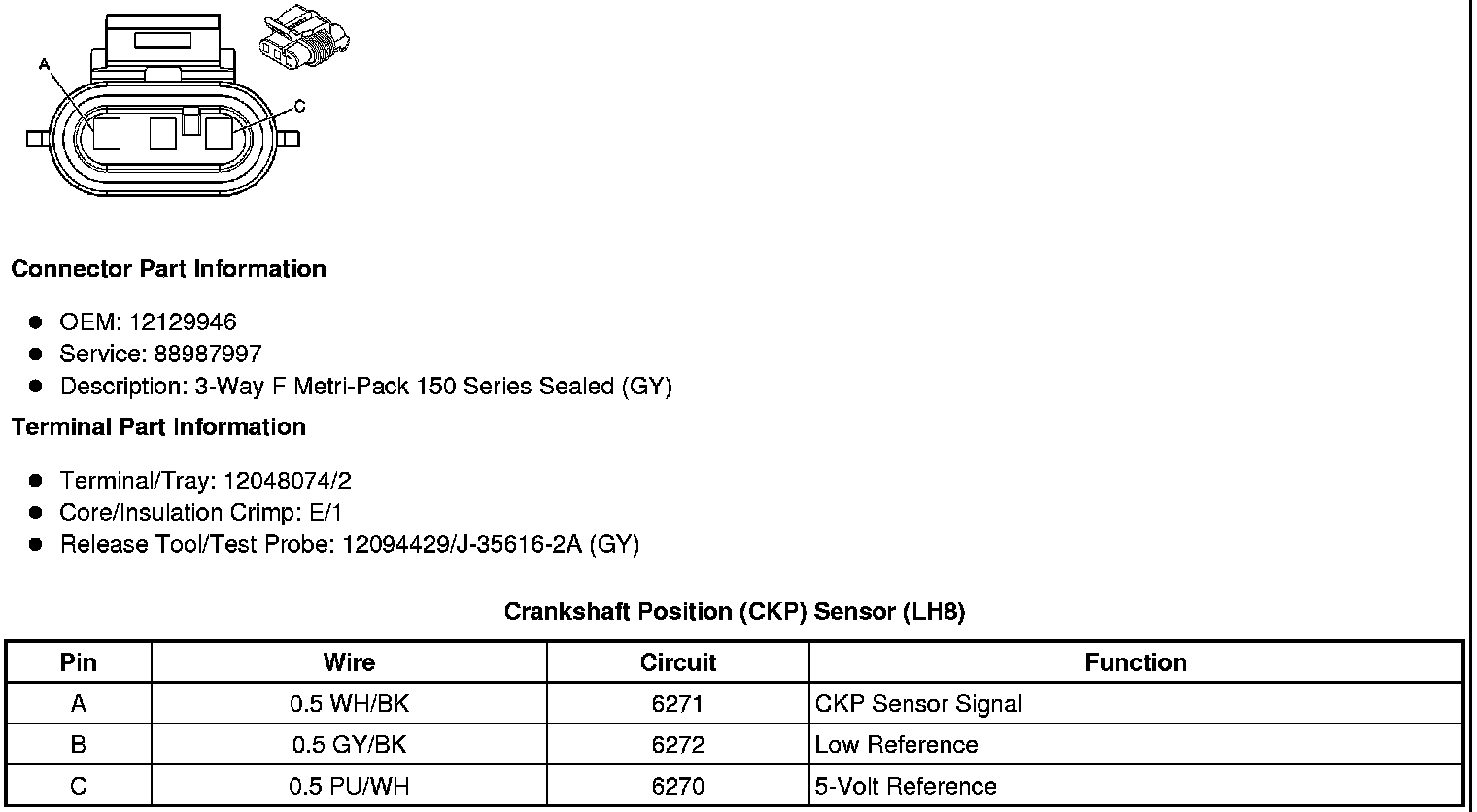

Crankshaft Position (CKP) Sensor (LH8)

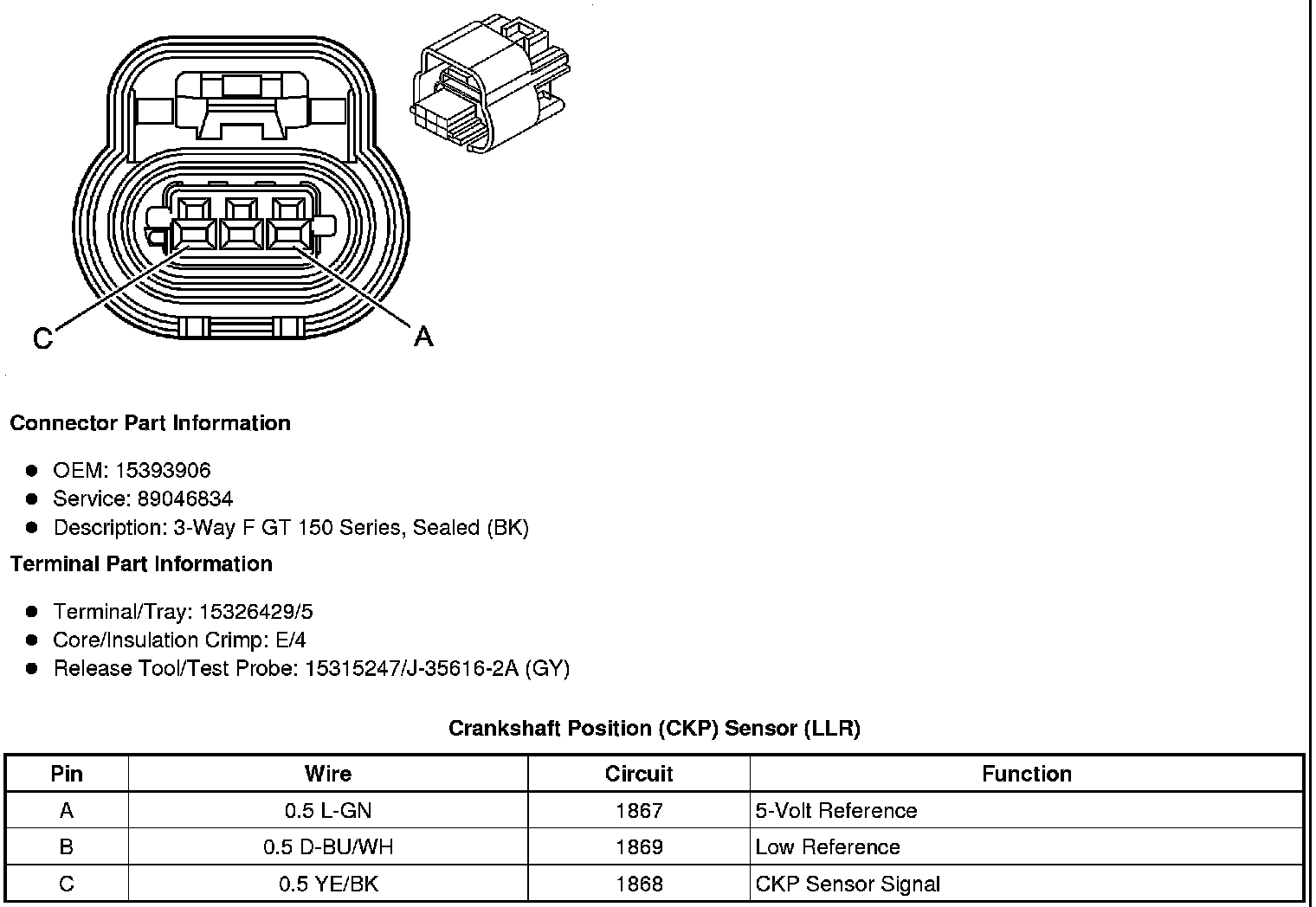

Crankshaft Position (CKP) Sensor (LLR)
