Hummer
>>
2008
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Camshaft Position Sensor
Camshaft Position Sensor

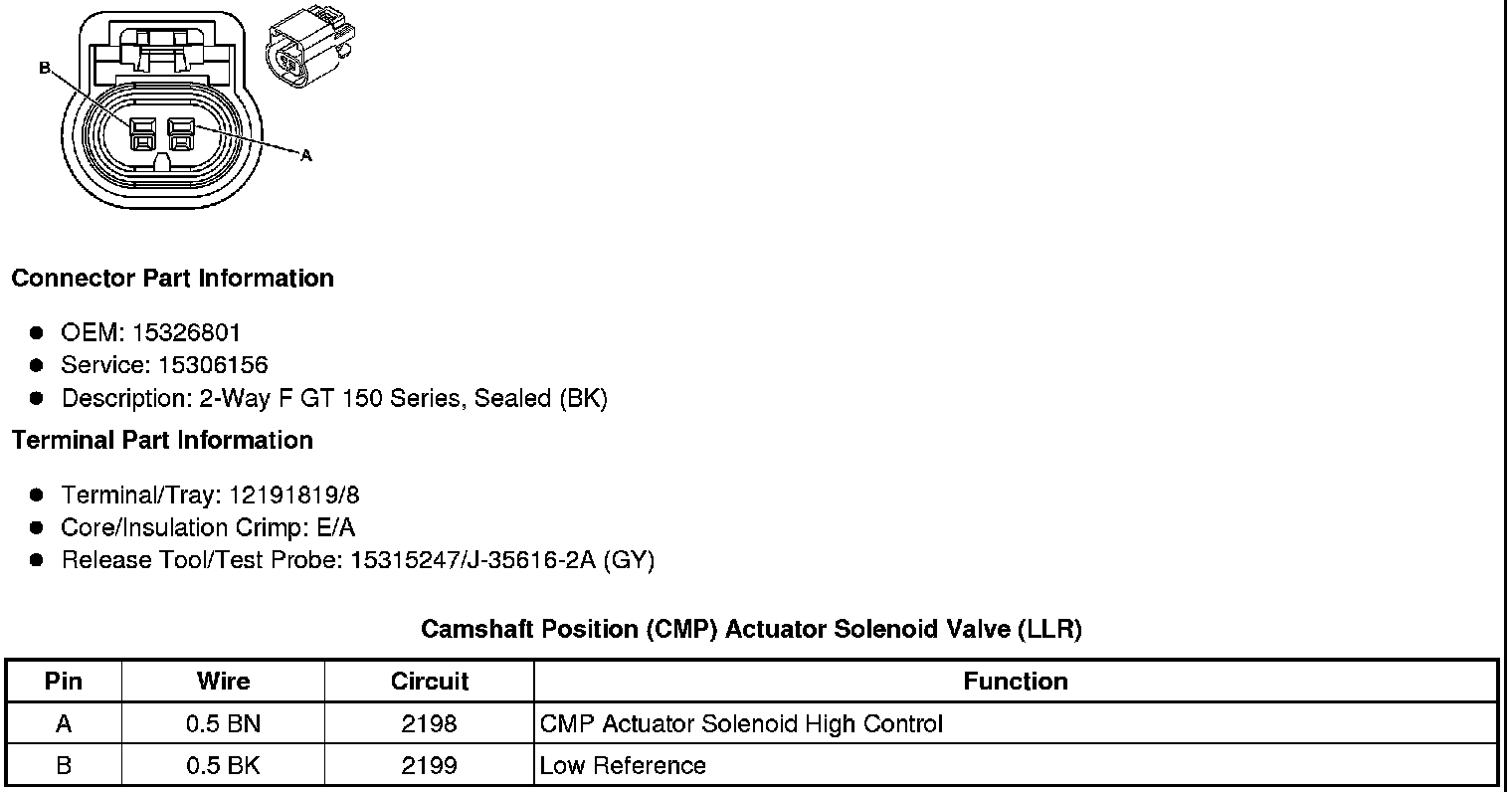

Camshaft Position (CMP) Actuator Solenoid Valve (LLR)

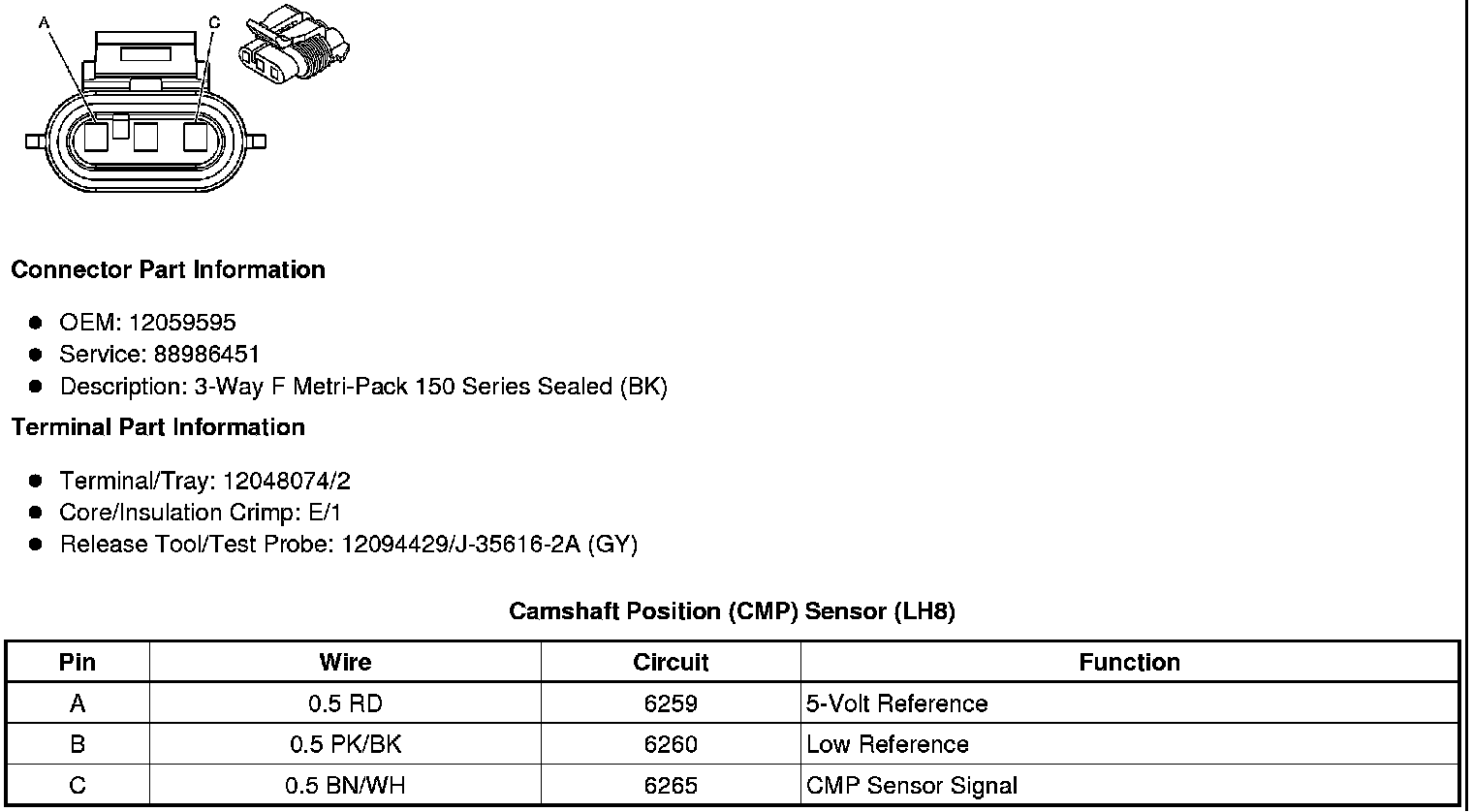

Camshaft Position (CMP) Sensor (LH8)

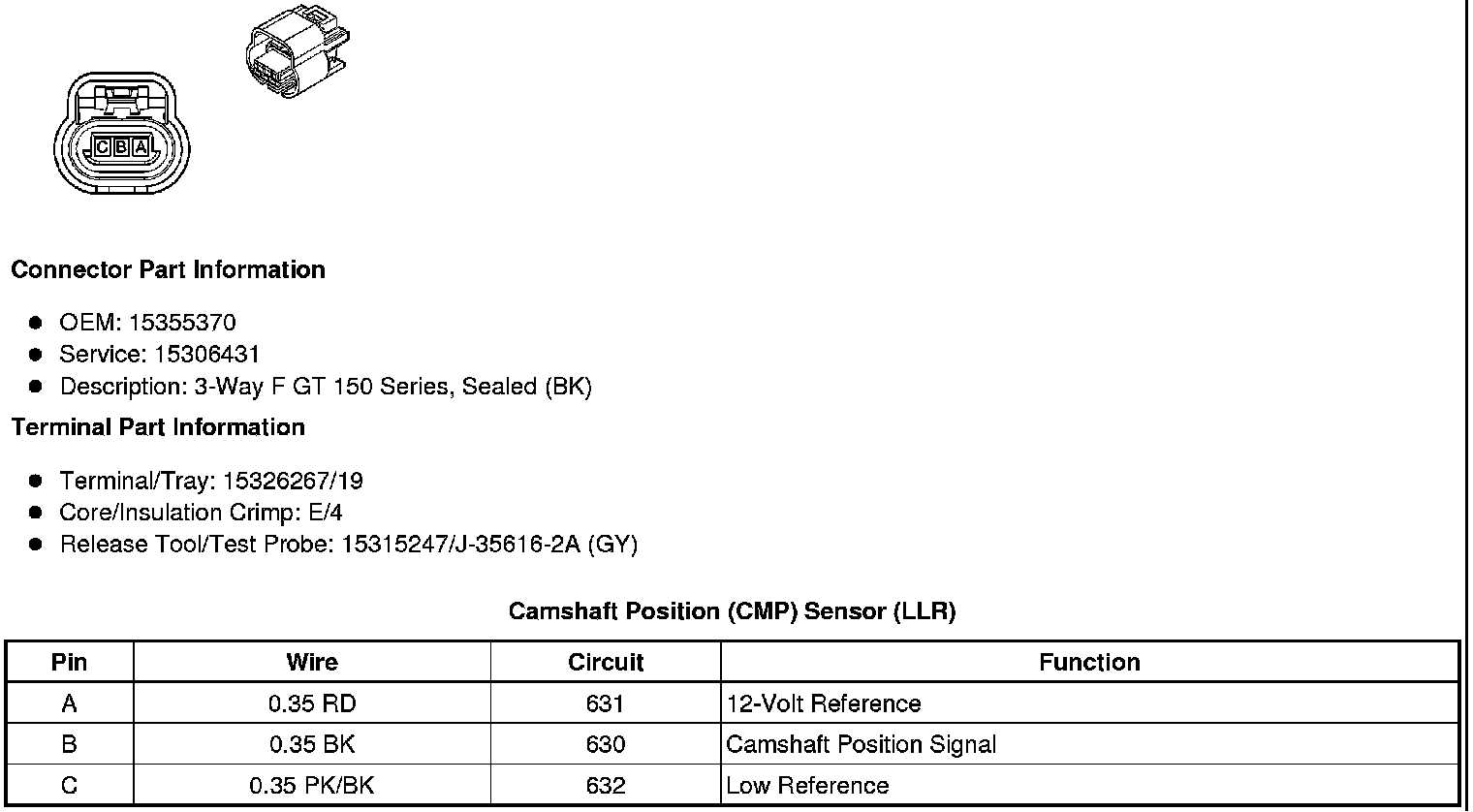

Camshaft Position (CMP) Sensor (LLR)
