Home >> Hummer >> 2008 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems

Antitheft and Alarm Systems

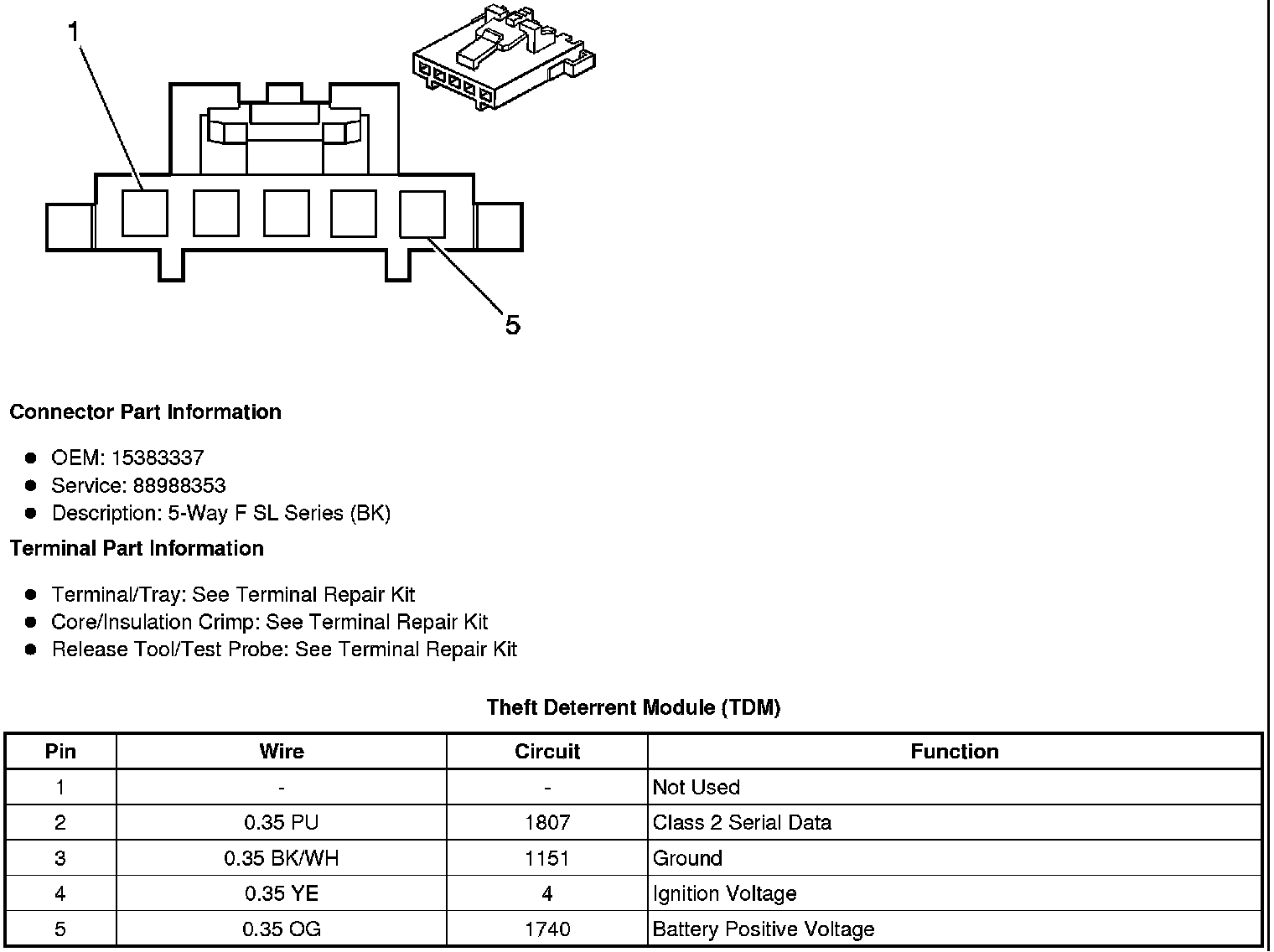

Theft Deterrent Module (TDM)





Door Jamb Switch - Driver

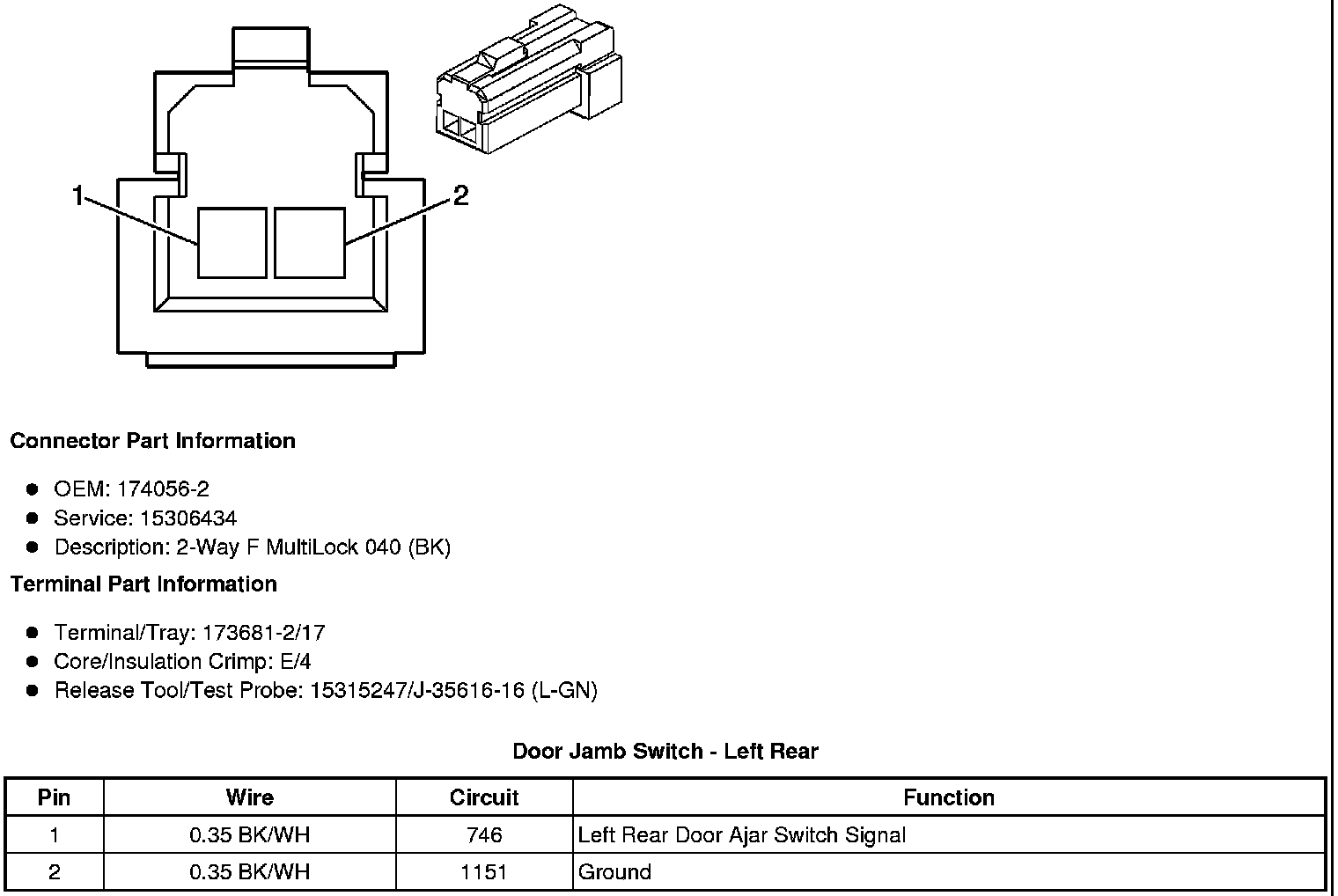

Door Jamb Switch - Left Rear

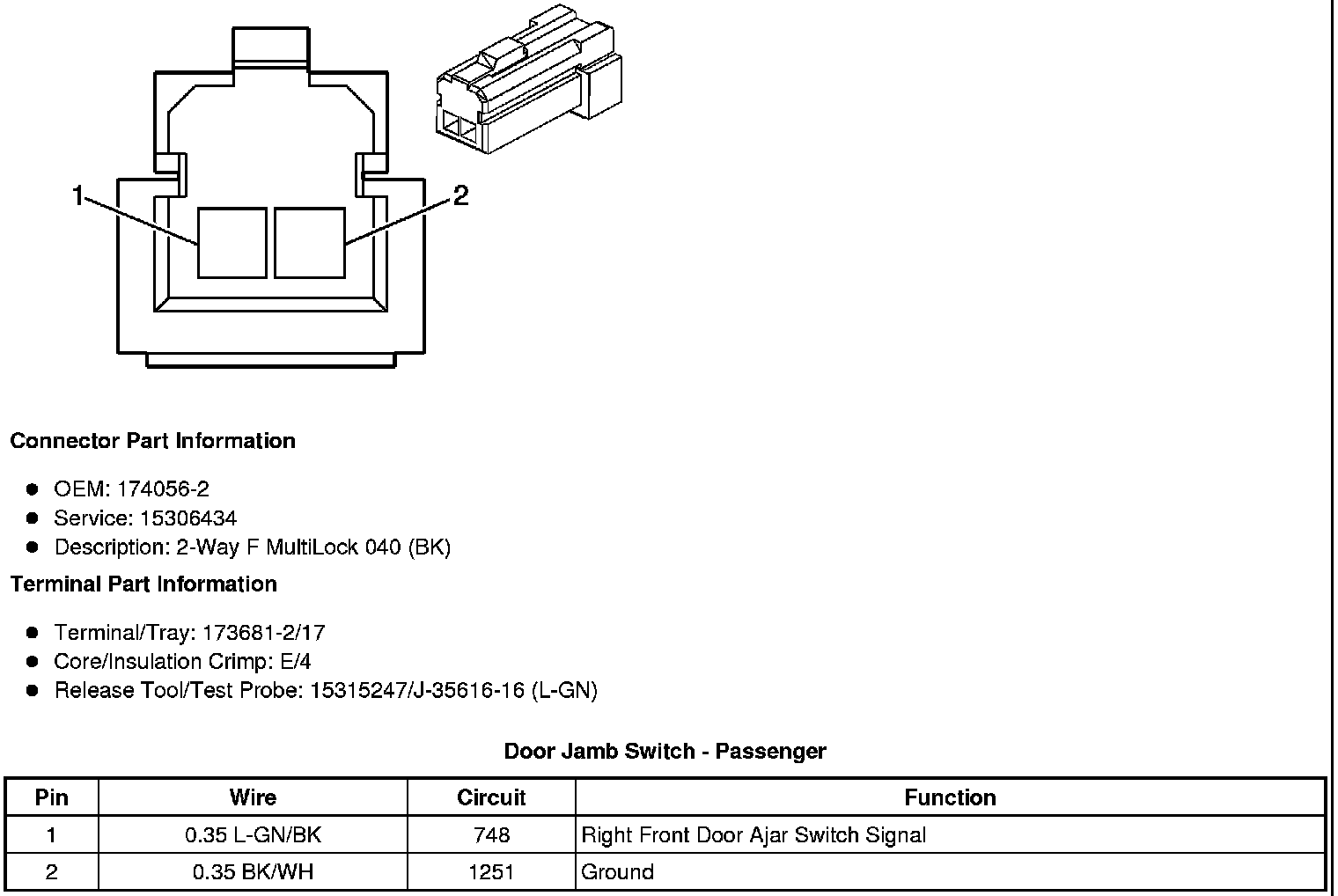

Door Jamb Switch - Passenger






Door Jamb Switch - Right Rear
