Fuel Level Sensor: Locations



Wheels/Vehicle Underbody Component Views

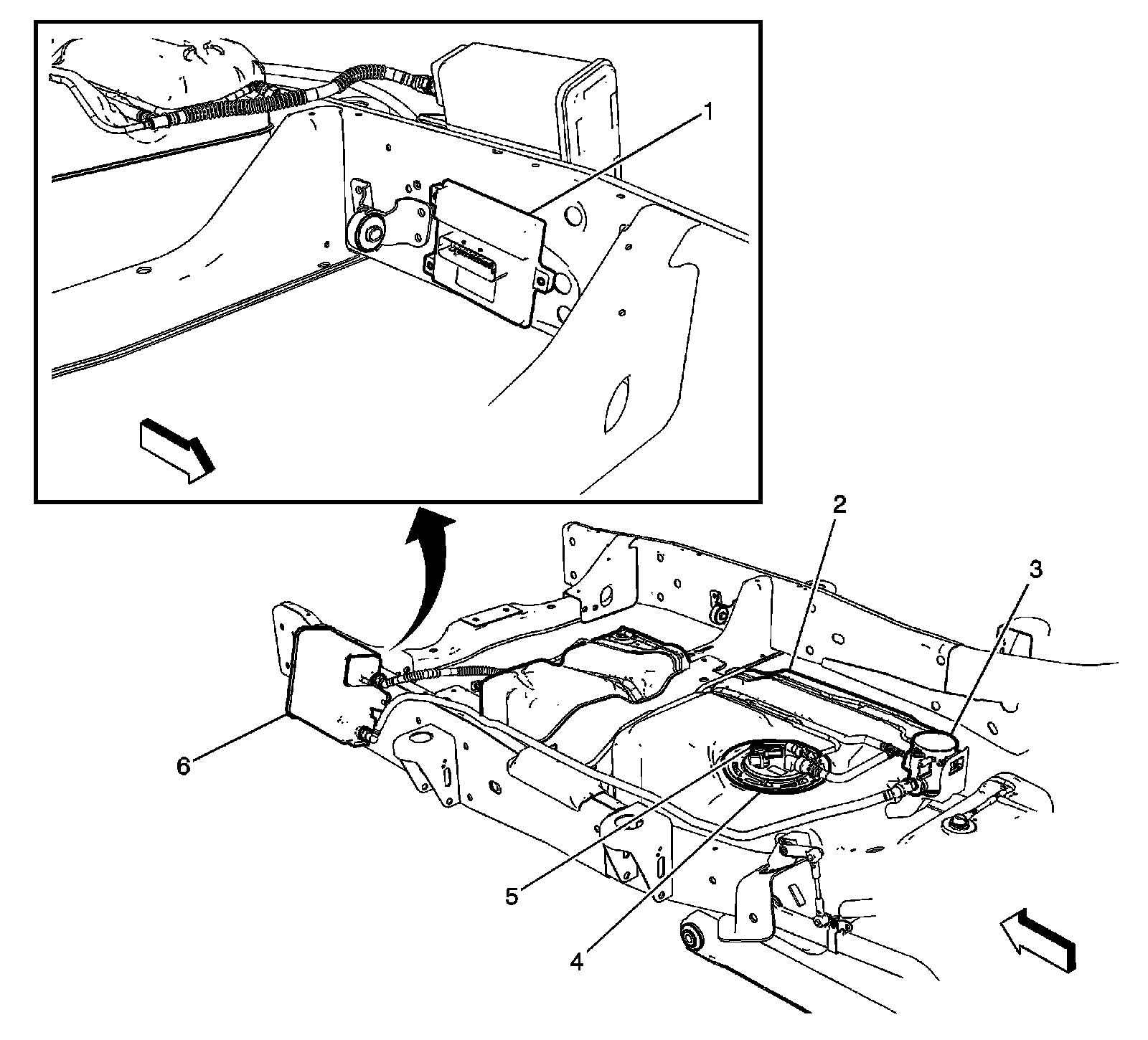

Fuel System Components




1 - Fuel Pump Control Module
2 - Fuel Tank
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Fuel Pump and Sender Assembly
5 - Fuel Tank Pressure (FTP) Sensor
6 - Evaporative Emission (EVAP) Canister
