Air Flow Meter/Sensor: Diagrams

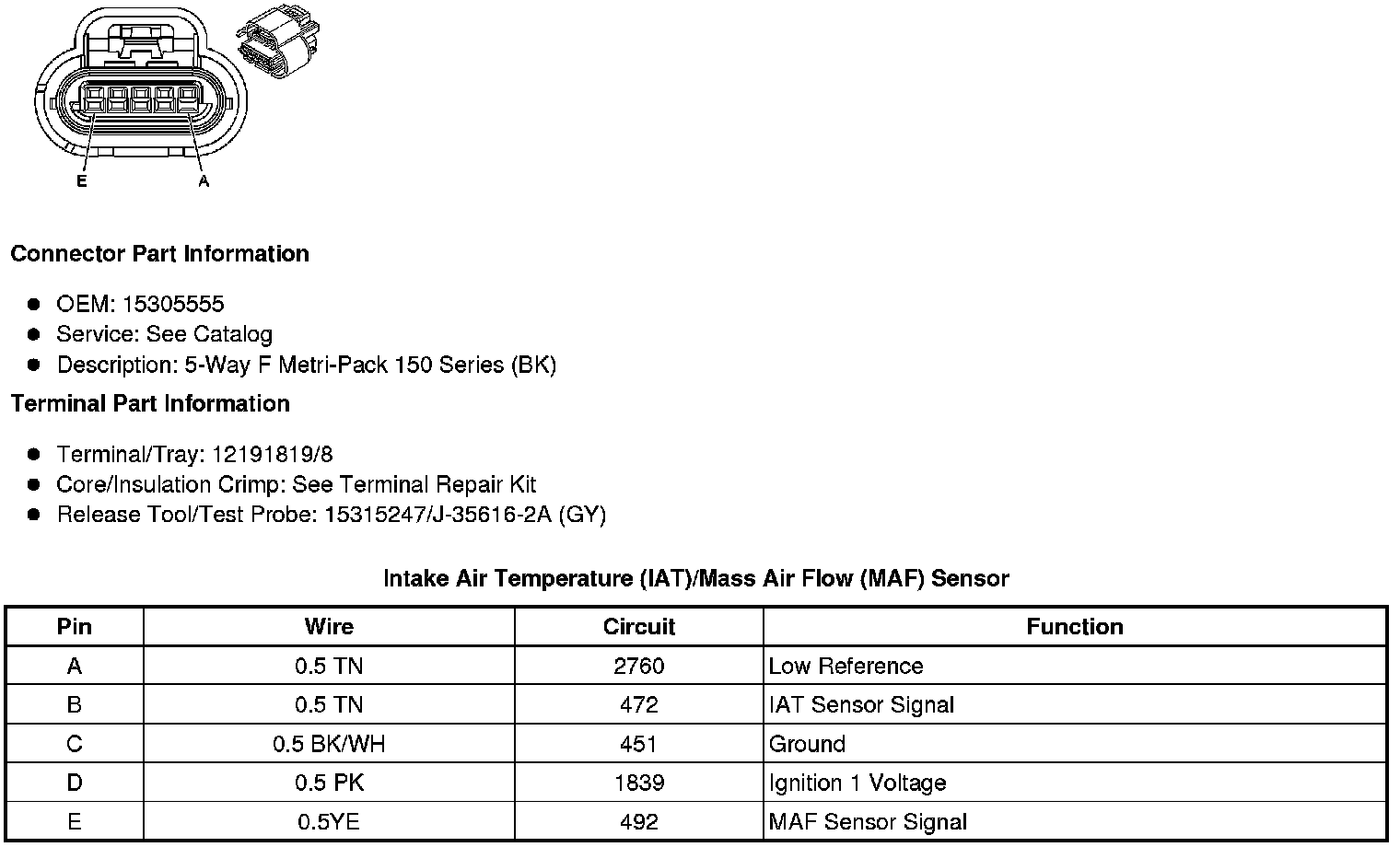

Component Connector End Views

Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
