Transmission Control Systems
Automatic Transmission Controls Schematics

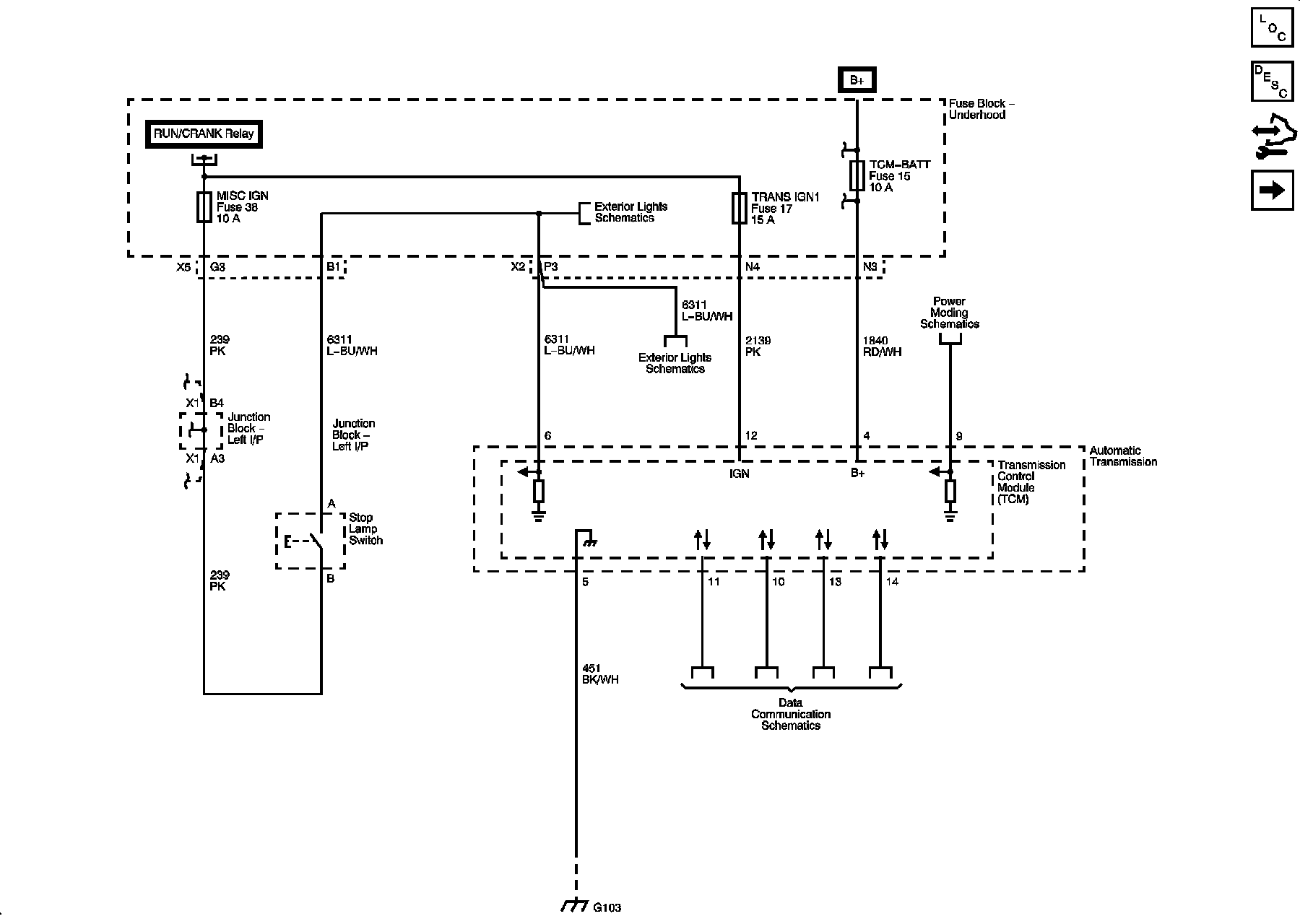

Module Power, Ground, Serial Data and Stop Lamp Signal

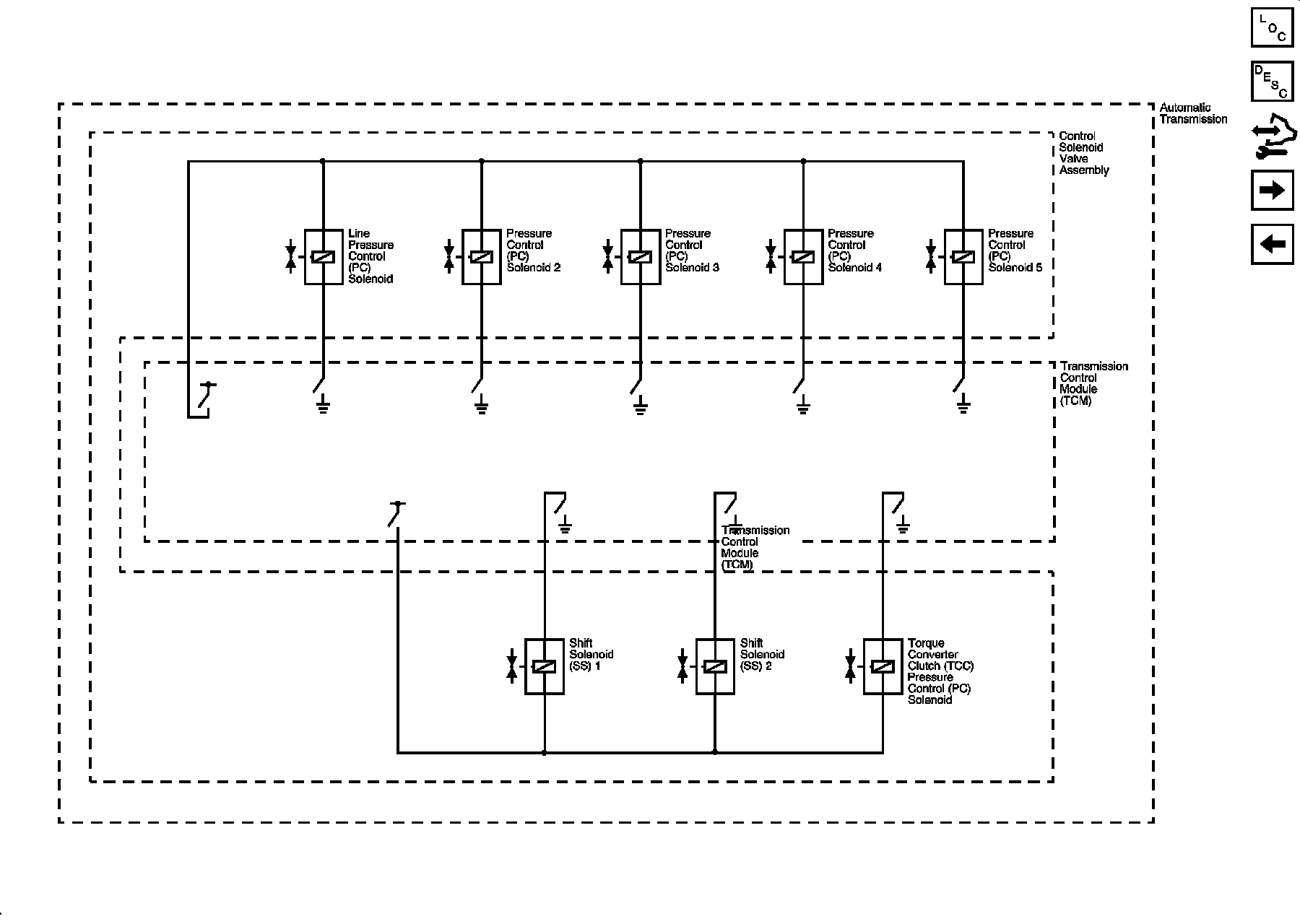

Pressure Controls - 1 of 2 and Shift Controls

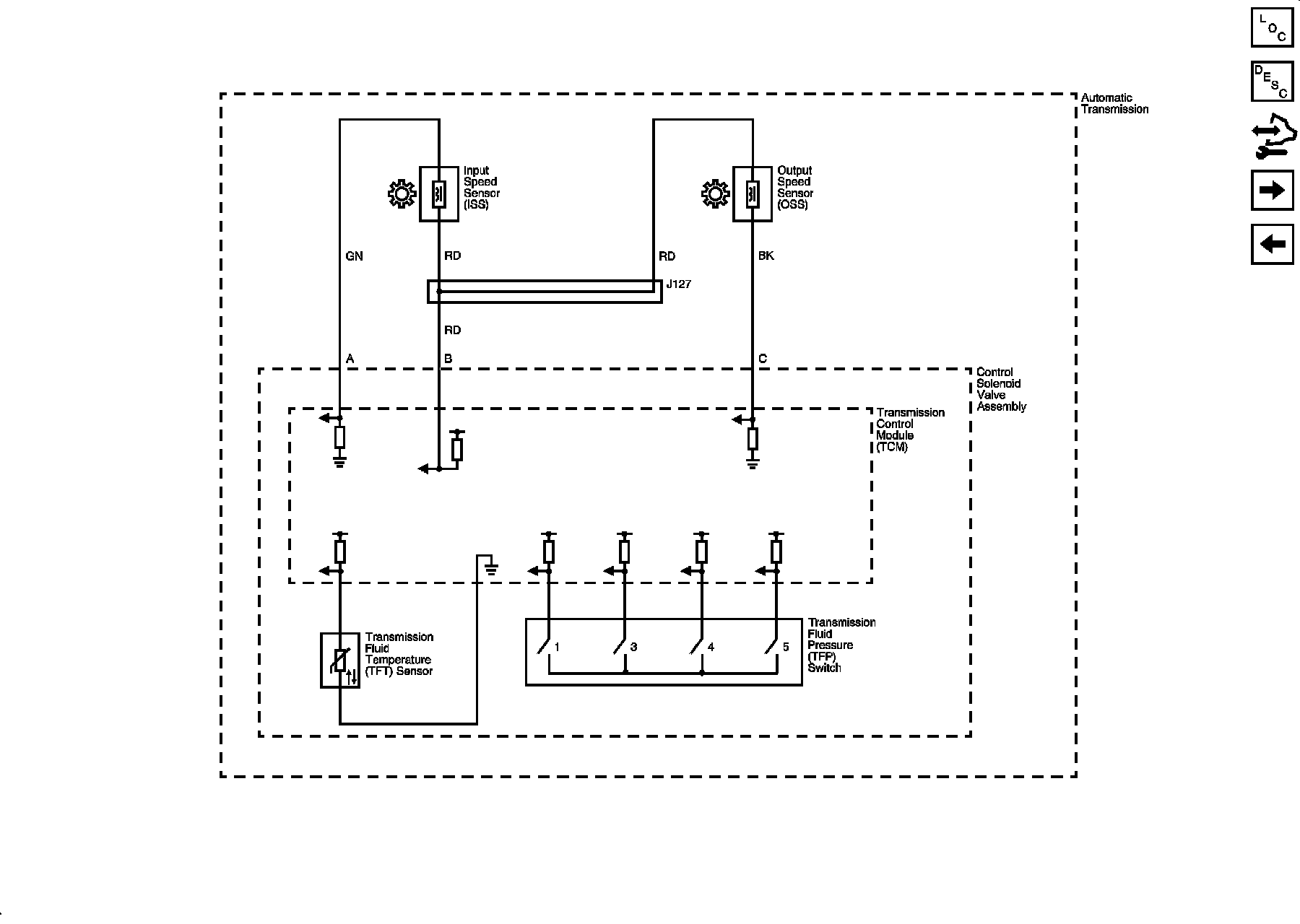

Pressure Controls - 2 of 2 and Speed Sensors

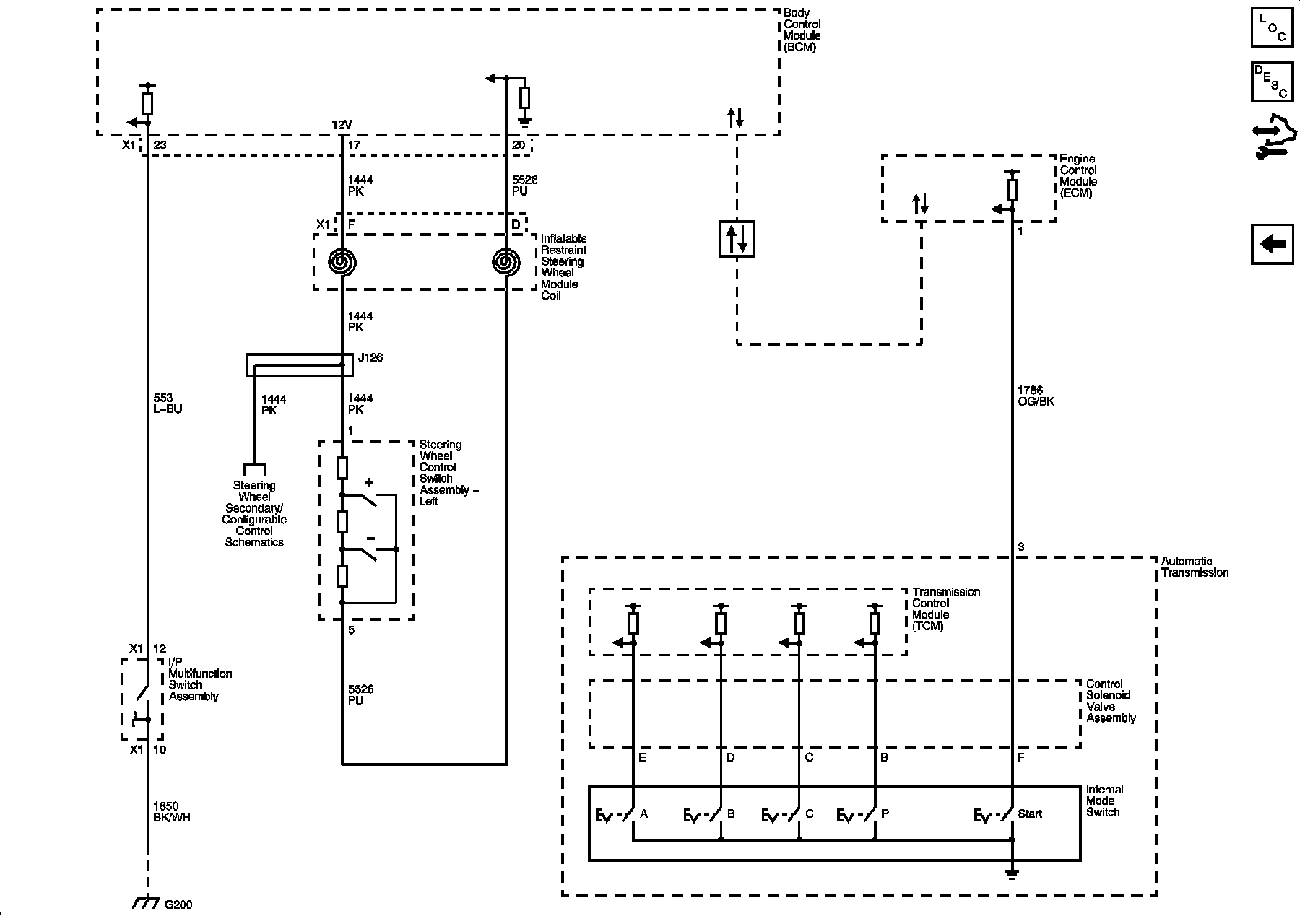

Transmission Range Signals and Driver Shift Request
