Seat Temperature Control Module
Seat Temperature Control Module
Component Connector End Views

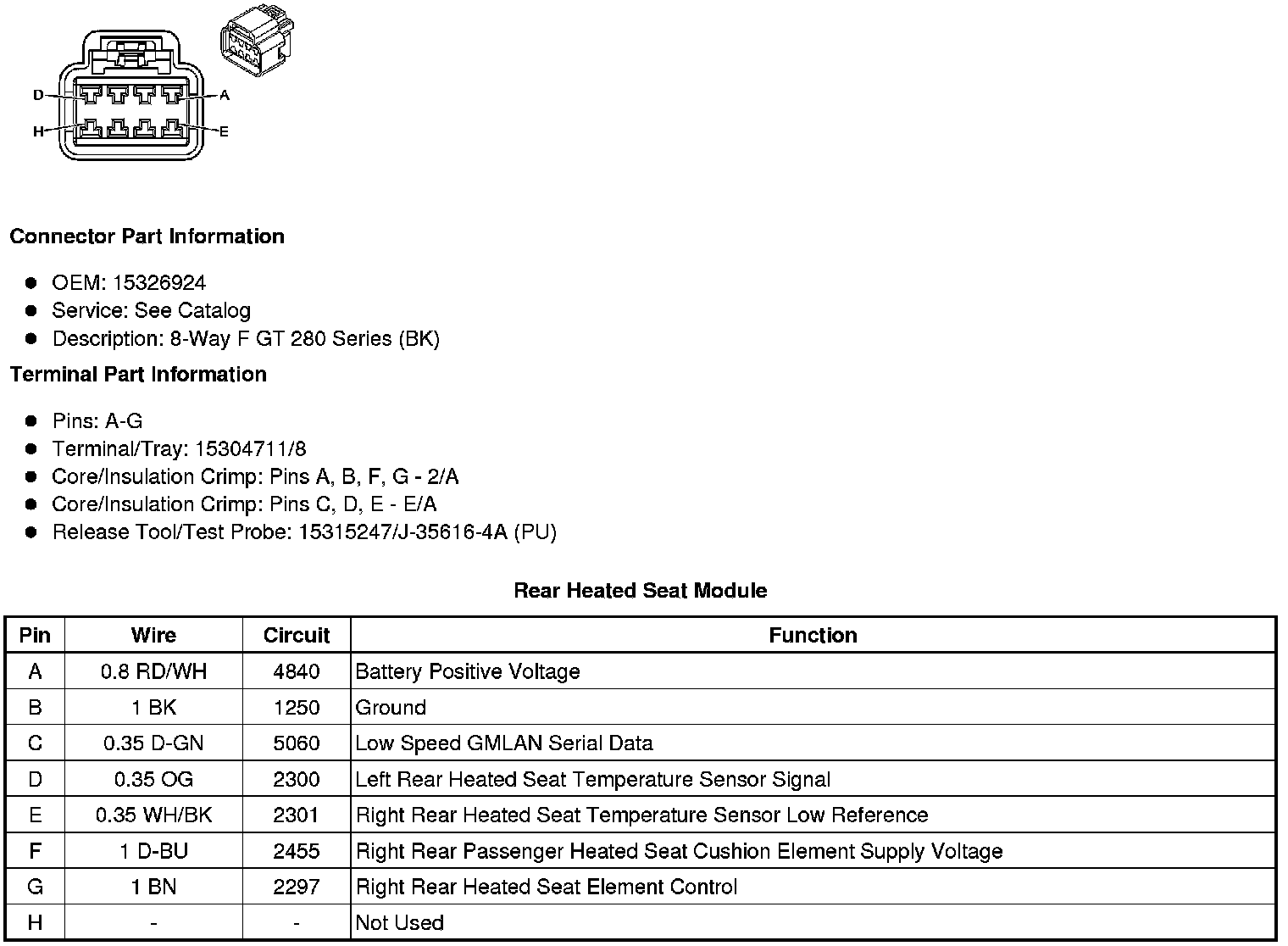

Rear Heated Seat Module
