Ride Height Sensor, Suspension Control
Ride Height Sensor, Suspension Control
Component Connector End Views

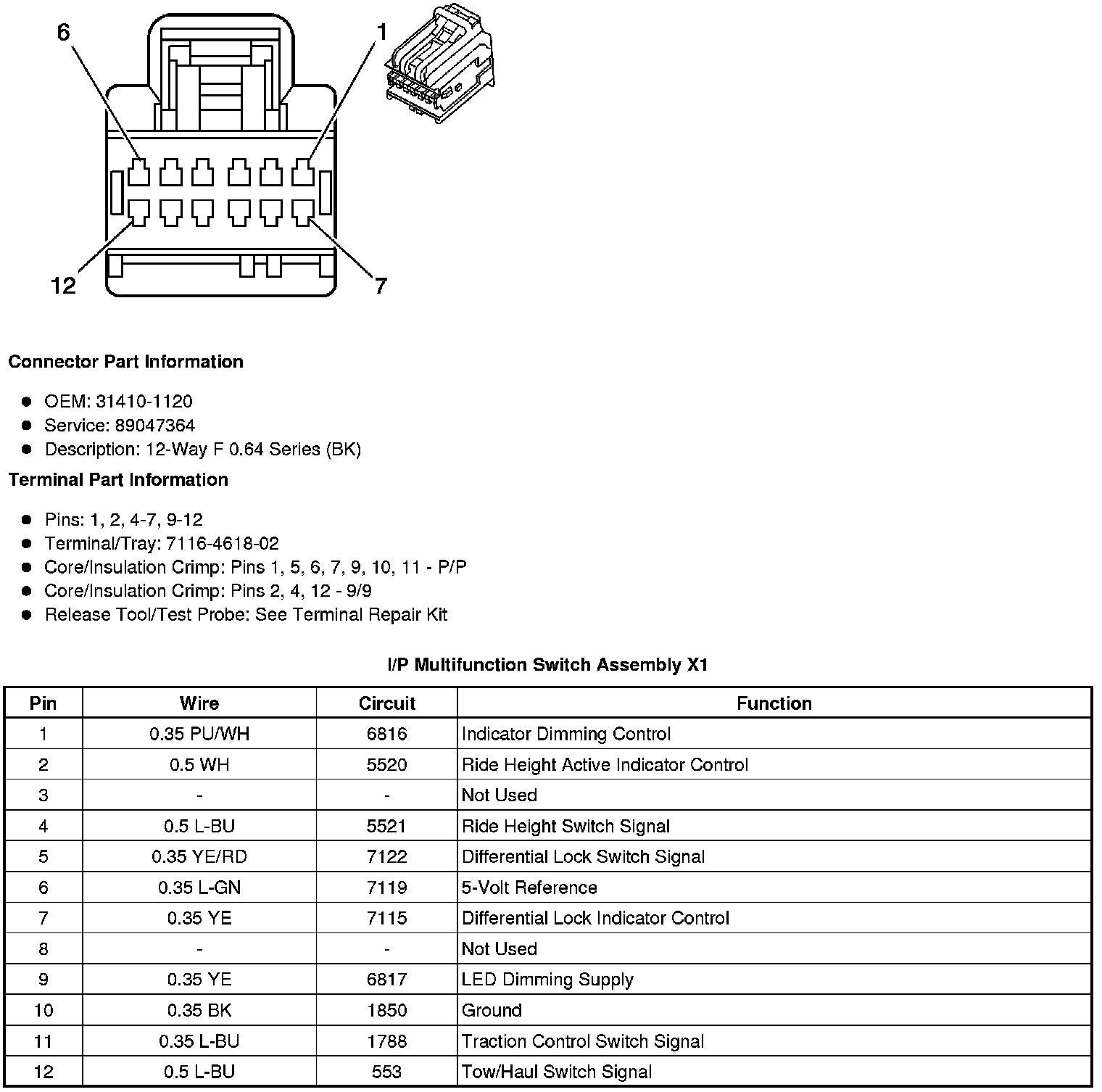

I/P Multifunction Switch Assembly X1
