Engine Harness - Left

Harness Routing Views

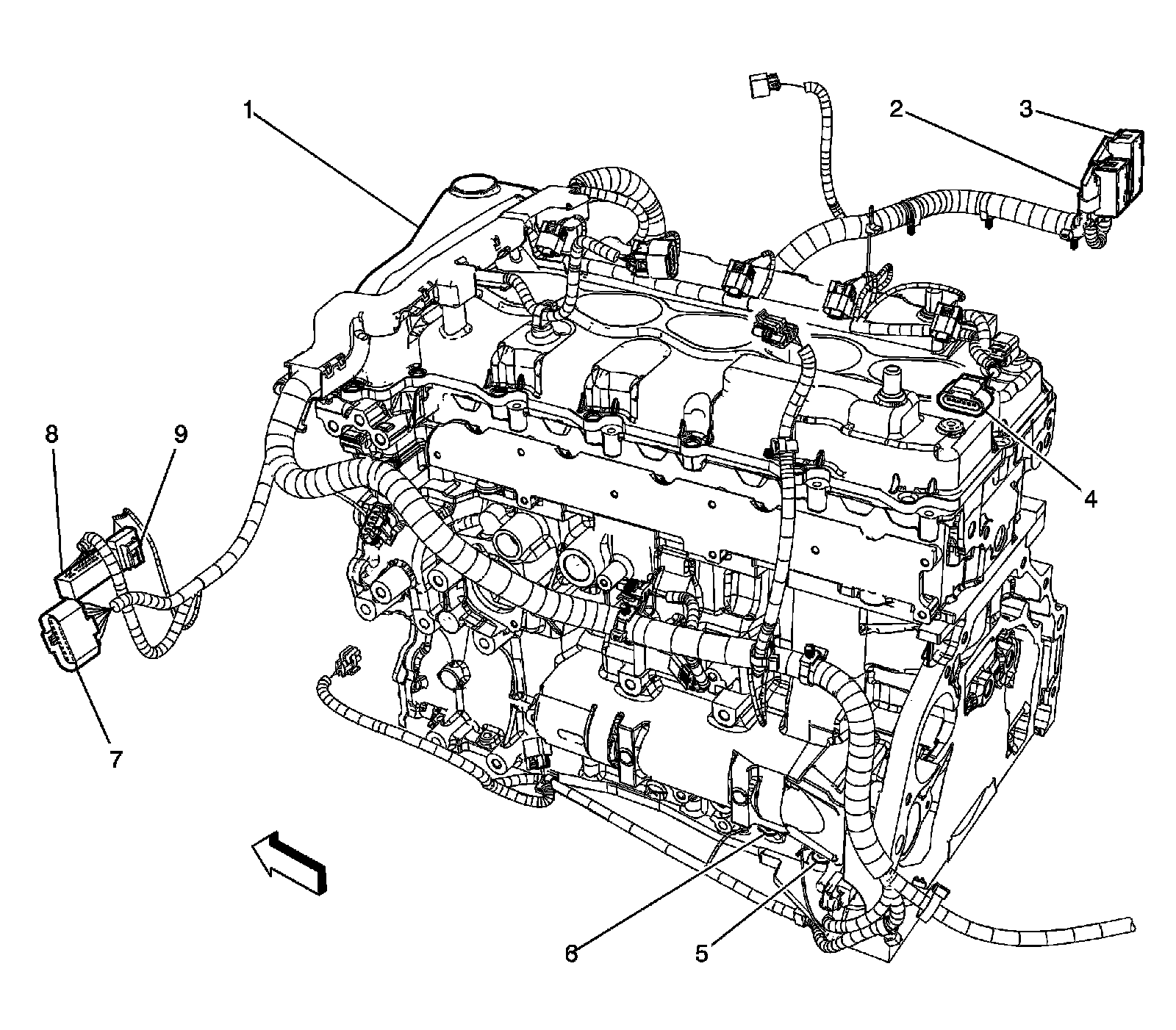

Engine Harness - Left




1 - Valve Cover
2 - Powertrain Control Module (PCM) C3
3 - Powertrain Control Module (PCM) C2
4 - C101 Engine Harness to Fuel Injector Harness
5 - G102
6 - G103
7 - C125 Engine Harness to Body Harness
8 - Fuse Block-Underhood C3
9 - Fuse Block-Underhood C4
