Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Yaw Rate Sensor

Yaw Rate Sensor

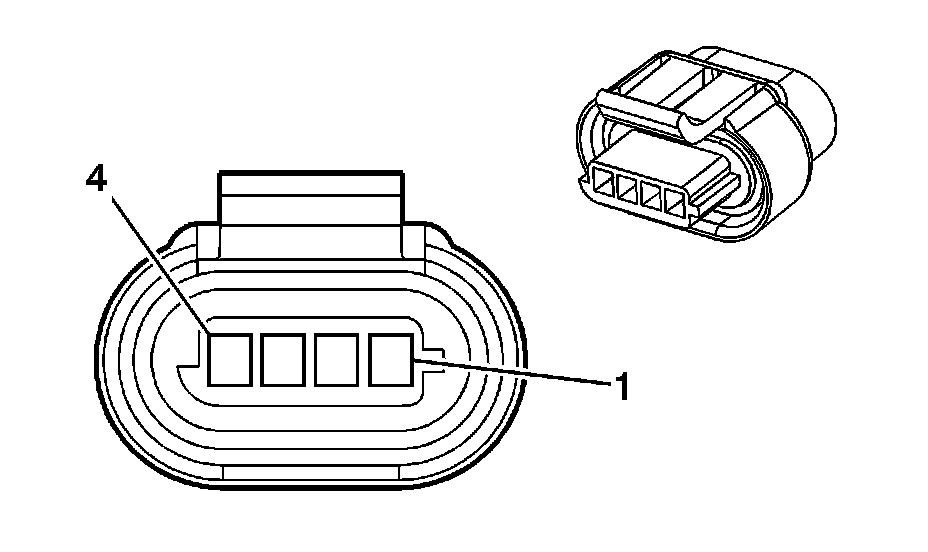

Yaw Rate/Lateral and Longitudinal Accelerometer Sensor (JL4)

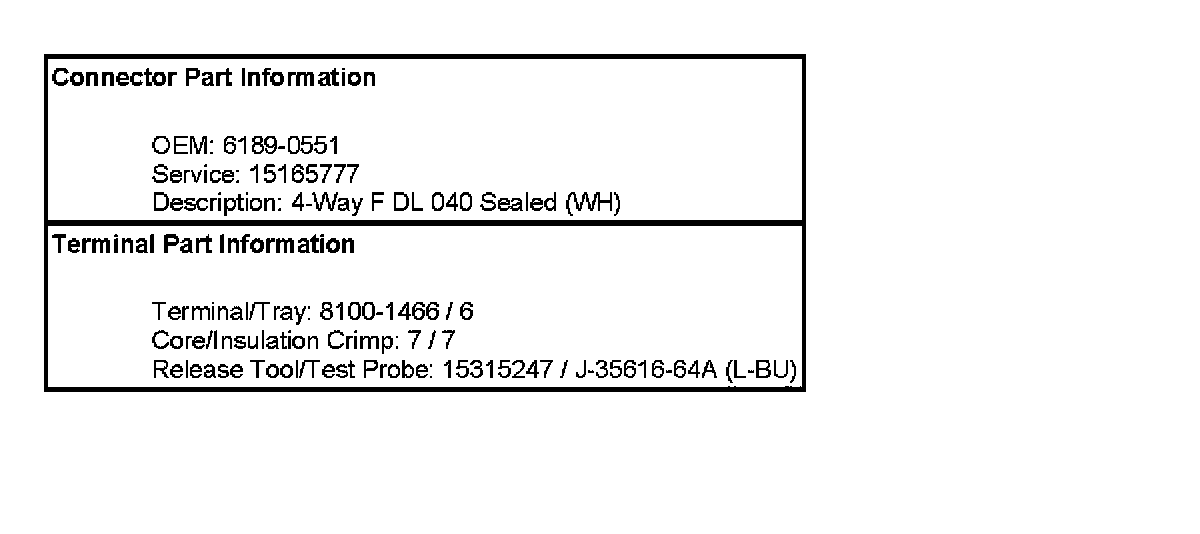

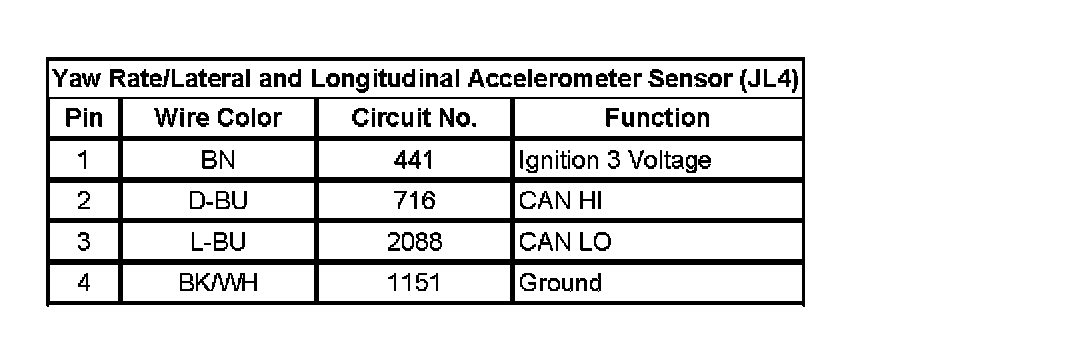

Yaw Rate/Lateral And Longitudinal Accelerometer Sensor (JL4):
