Power Window Switch



Window Systems Connector End Views

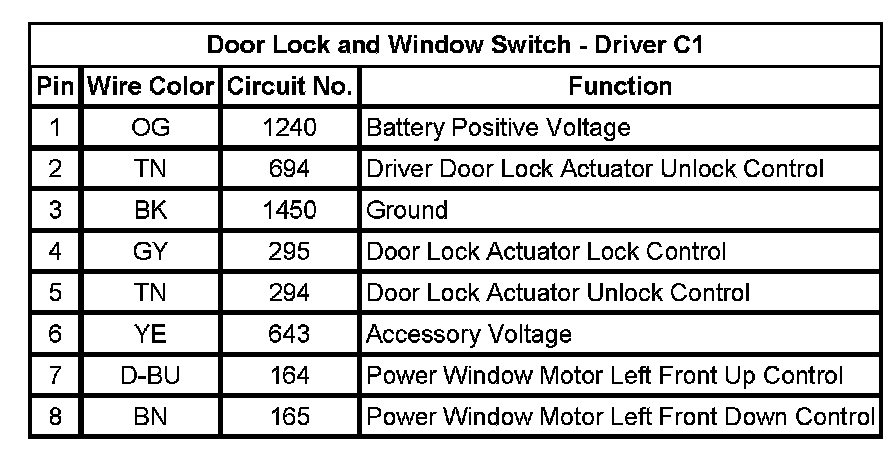

Door Lock and Window Switch - Driver C1

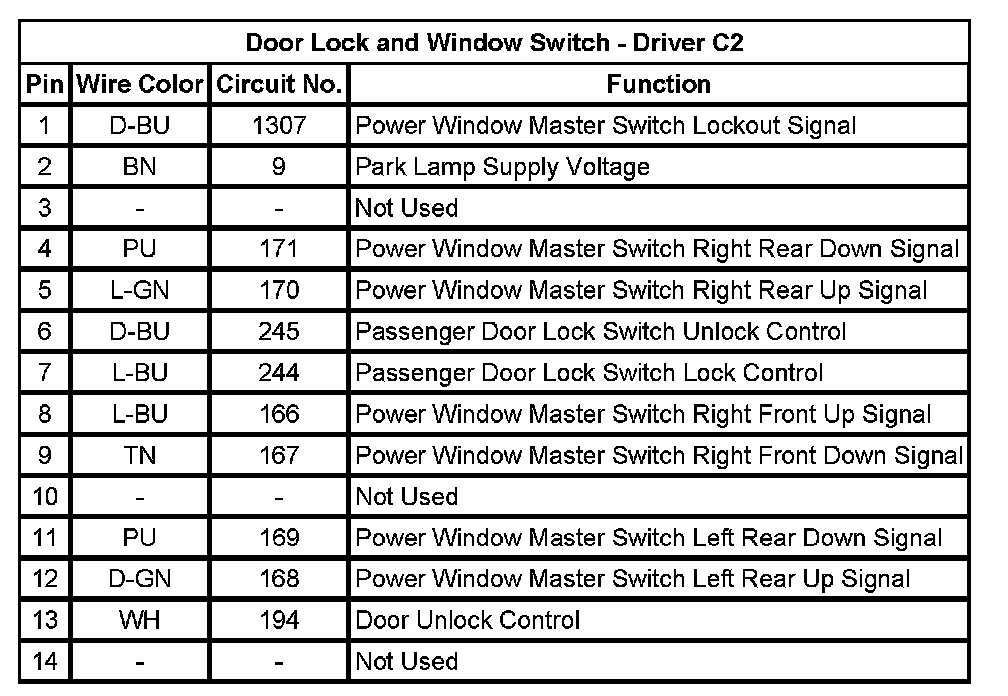

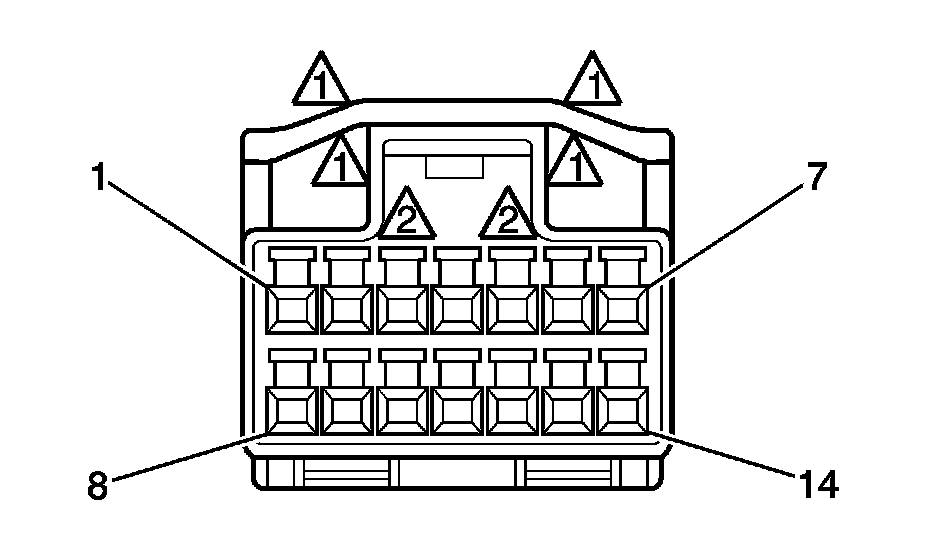

Door Lock and Window Switch - Driver C2

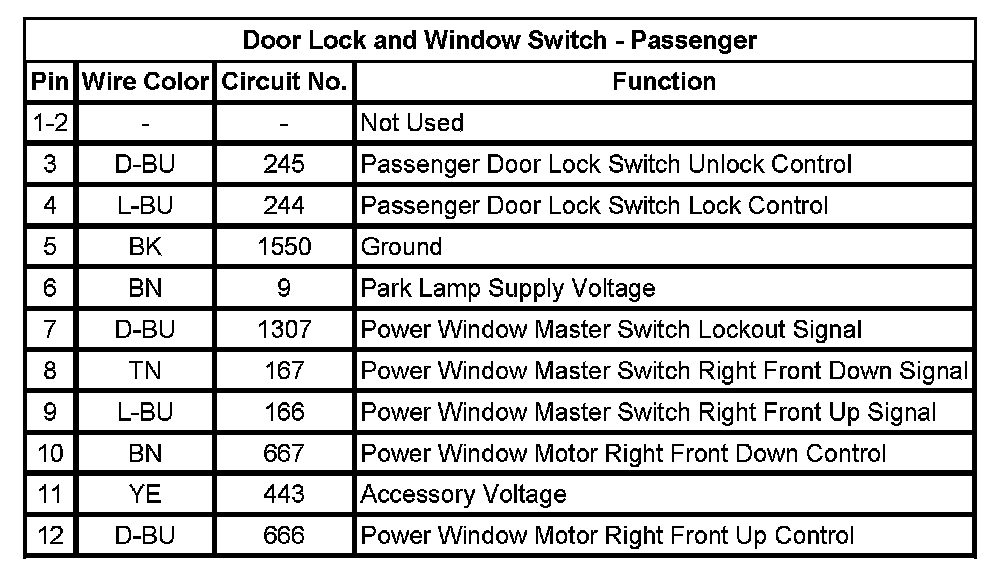

Door Lock and Window Switch - Passenger

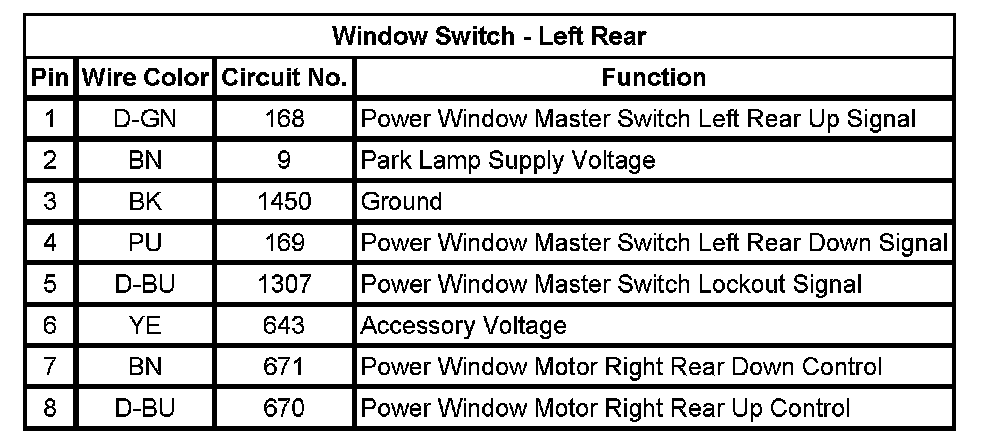

Window Switch - Left Rear

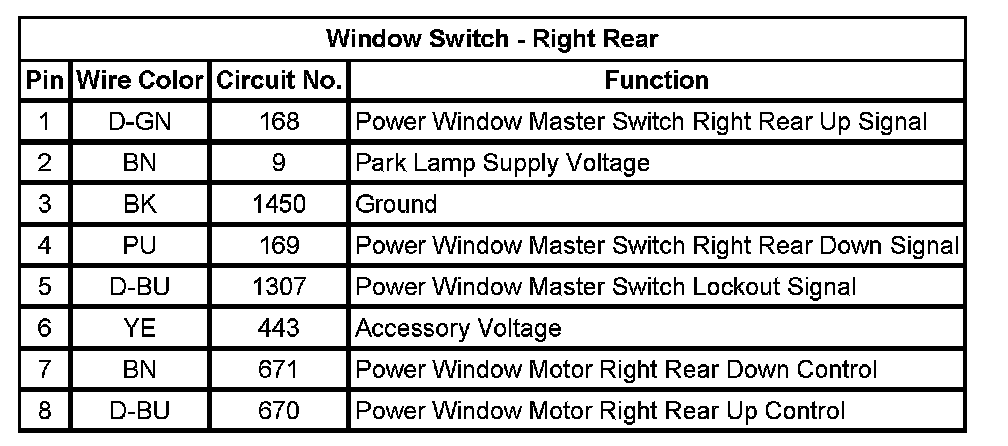

Window Switch - Right Rear
