Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signals >> System Diagram

System Diagram

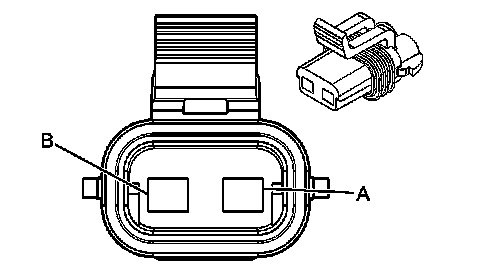

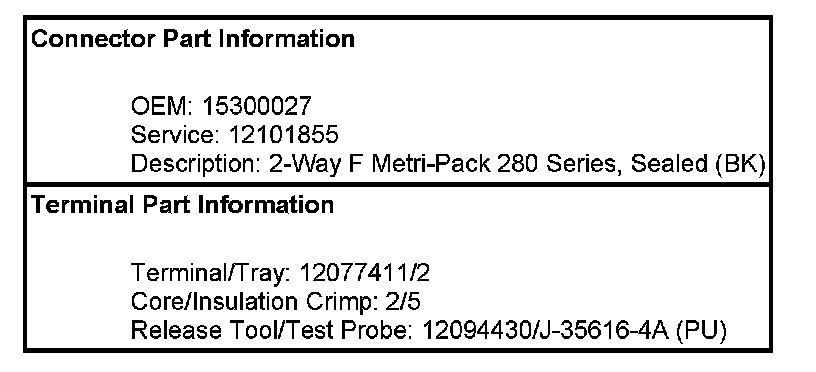

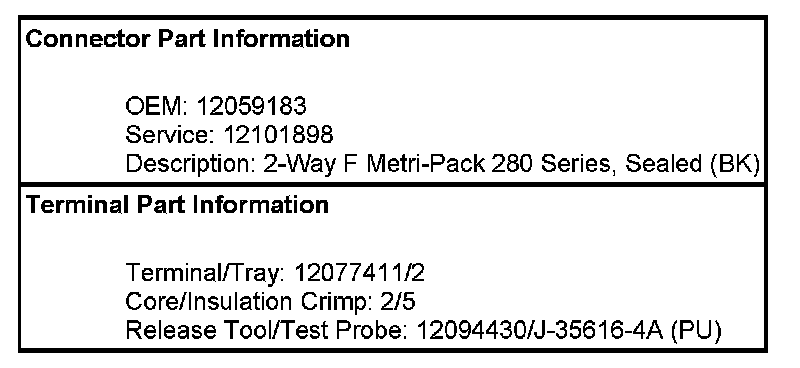

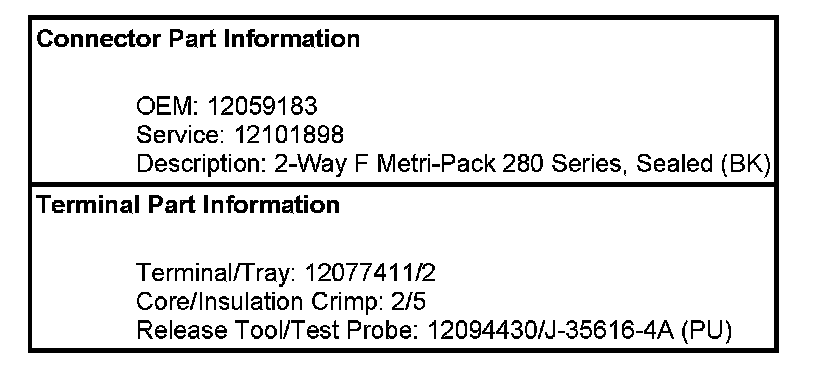

Lighting Systems Connector End Views

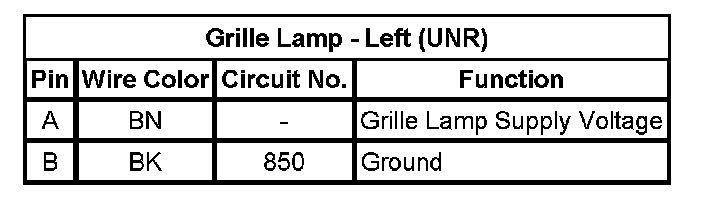

Grille Lamp - Left (UNR)

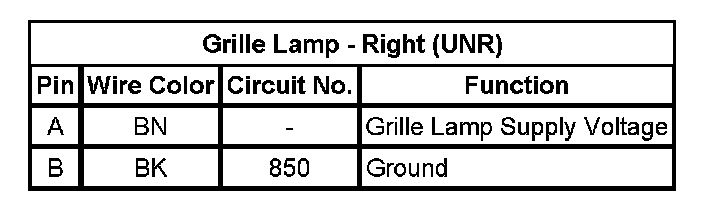

Grille Lamp - Right (UNR)

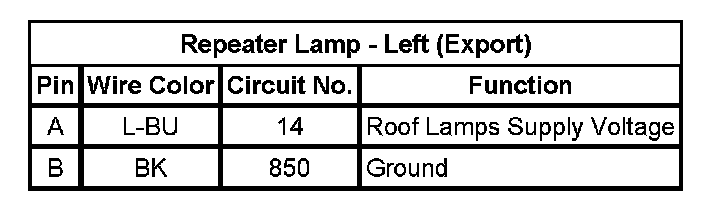

Repeater Lamp - Left (Export)

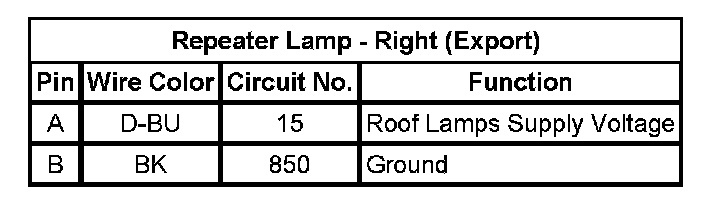

Repeater Lamp - Right (Export)
