Hummer
>>
2007
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case Actuator
Transfer Case Actuator
Transfer Case Encoder Motor

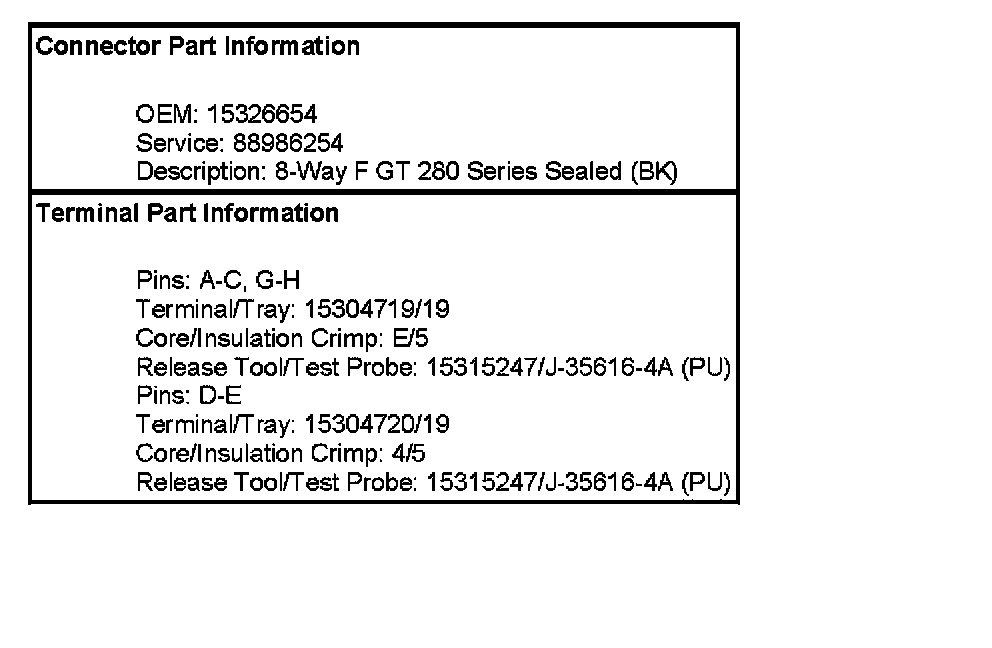

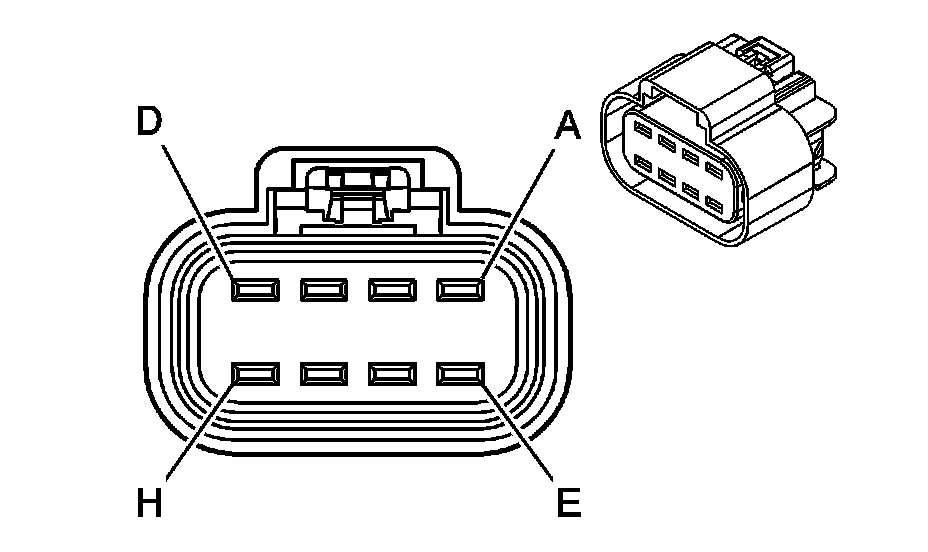

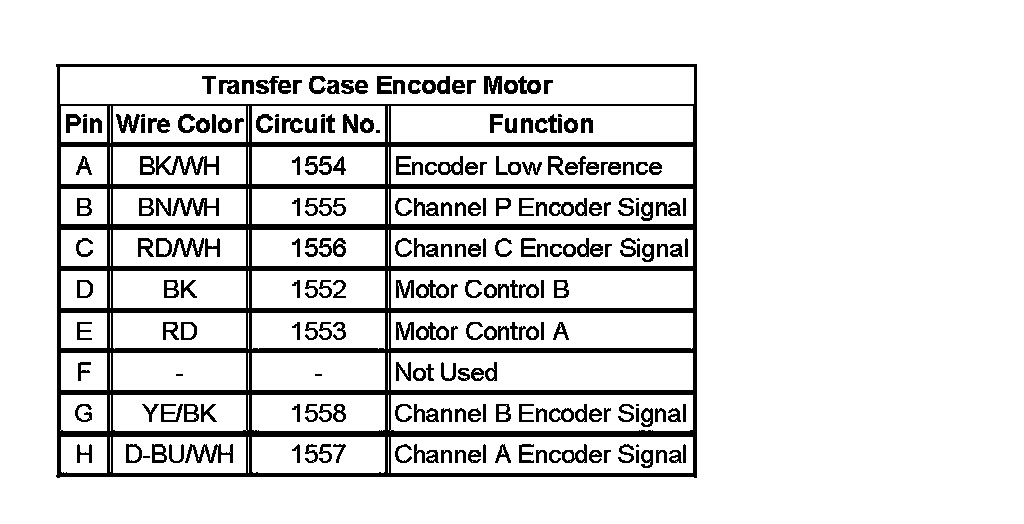

Transfer Case Encoder Motor:
