Steering Angle Sensor, Traction Control
Steering Angle Sensor, Traction Control
Steering Wheel Position Sensor (JL4)

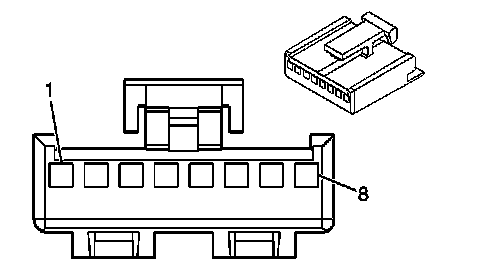

Steering Wheel Speed/Position Sensor:

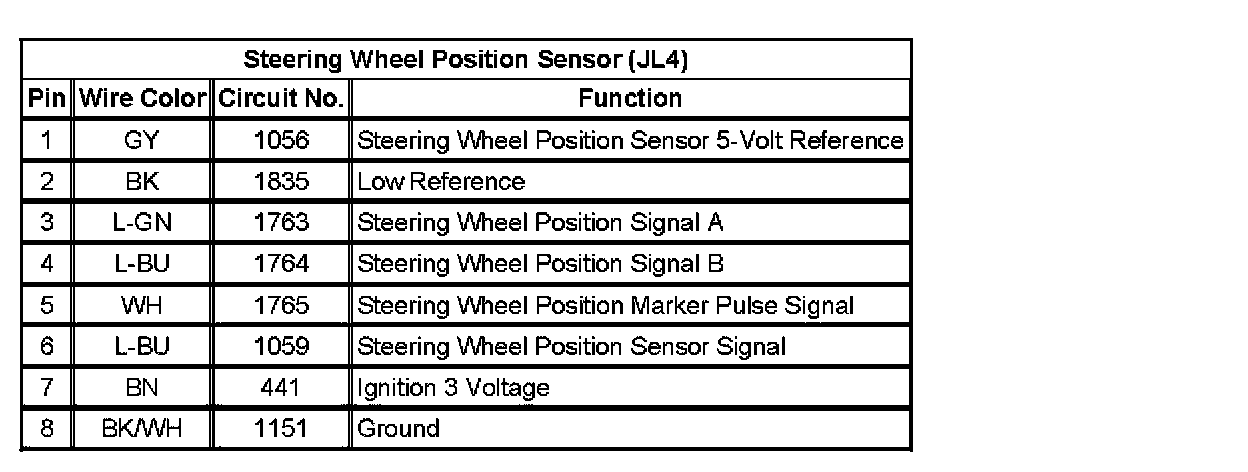

Steering Wheel Position Sensor (JL4):
