Hummer
>>
2007
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Interlock, A/T
Shift Interlock, A/T

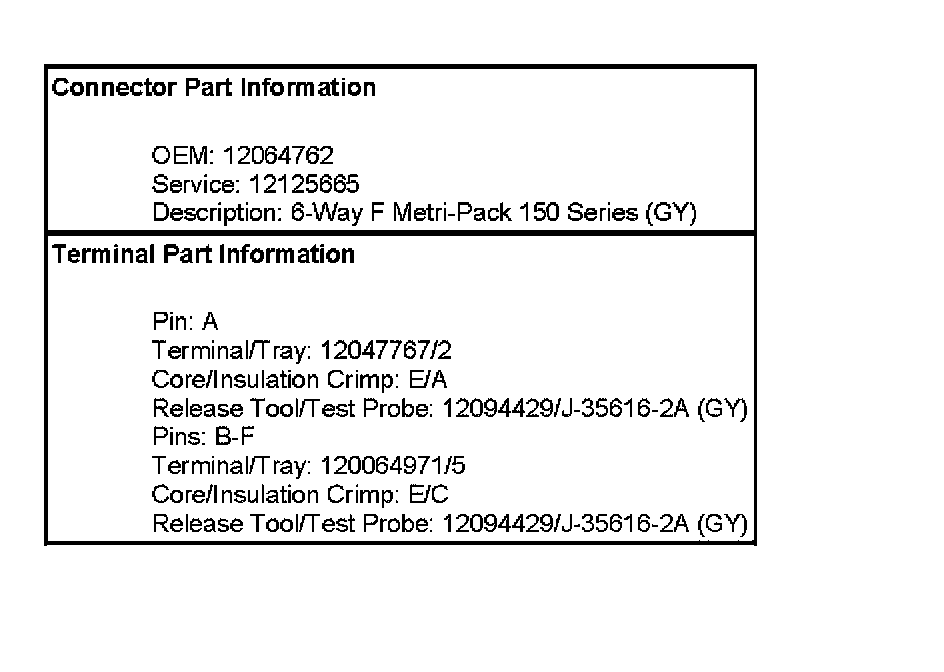

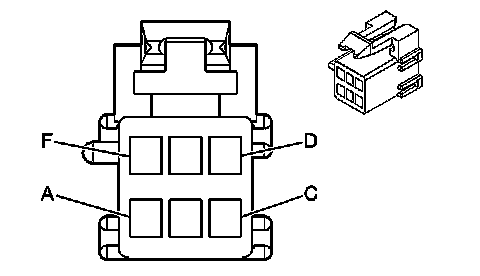

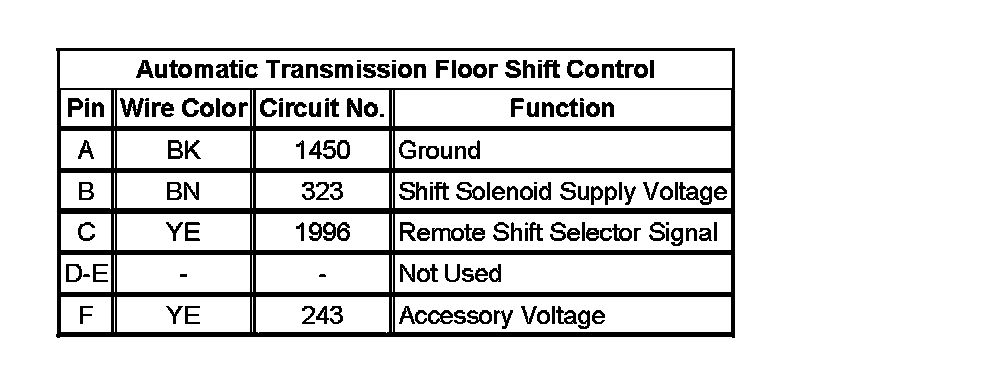

Automatic Transmission Floor Shift Control
Automatic Transmission Floor Shift Control:
