Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fluid Pressure Sensor/Switch, A/T

Fluid Pressure Sensor/Switch, A/T

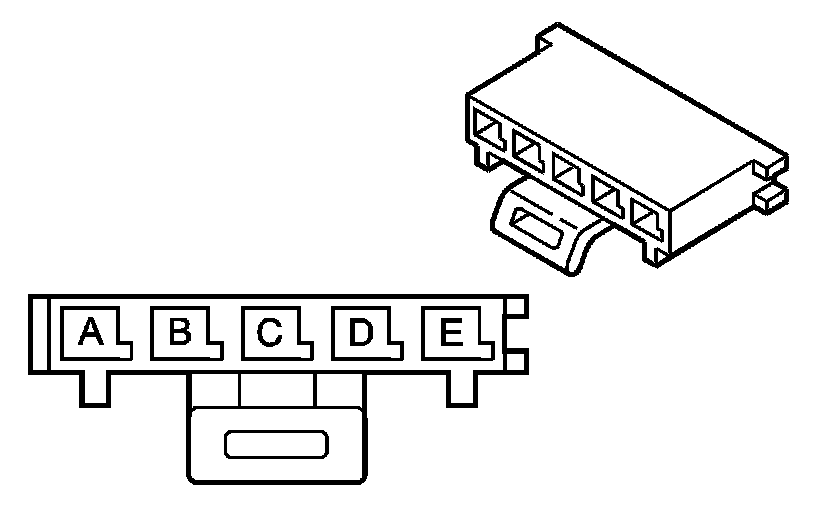

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side

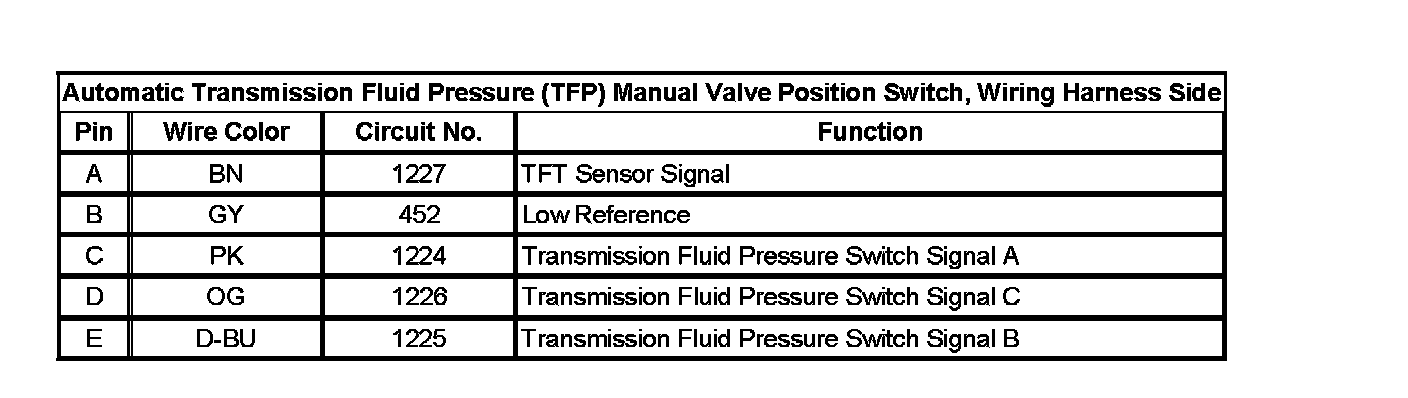

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side:
