Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Electronic Brake Control Module (EBCM) C2

Electronic Brake Control Module (EBCM) C2



Electronic Brake Control Module (EBCM) C2

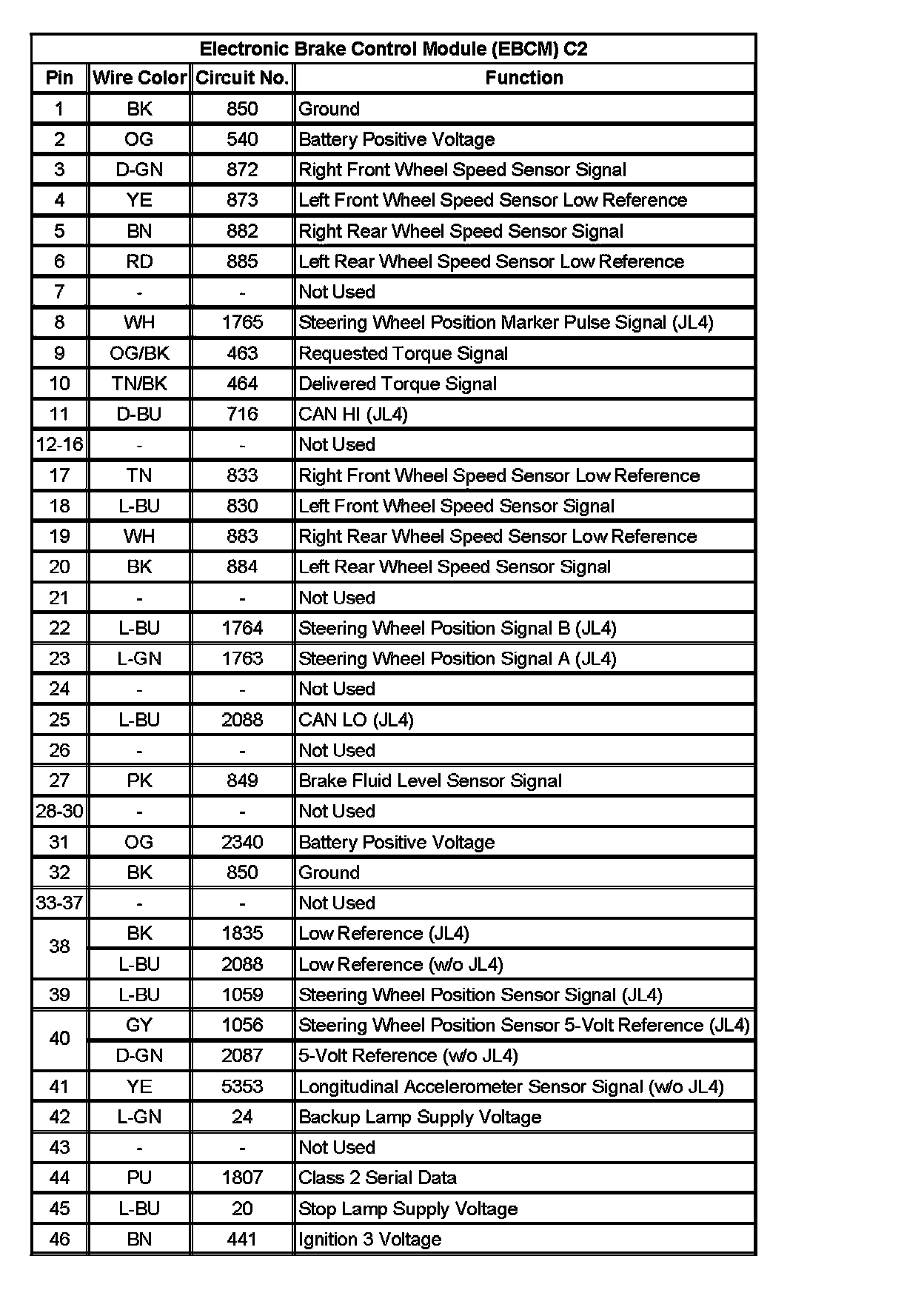

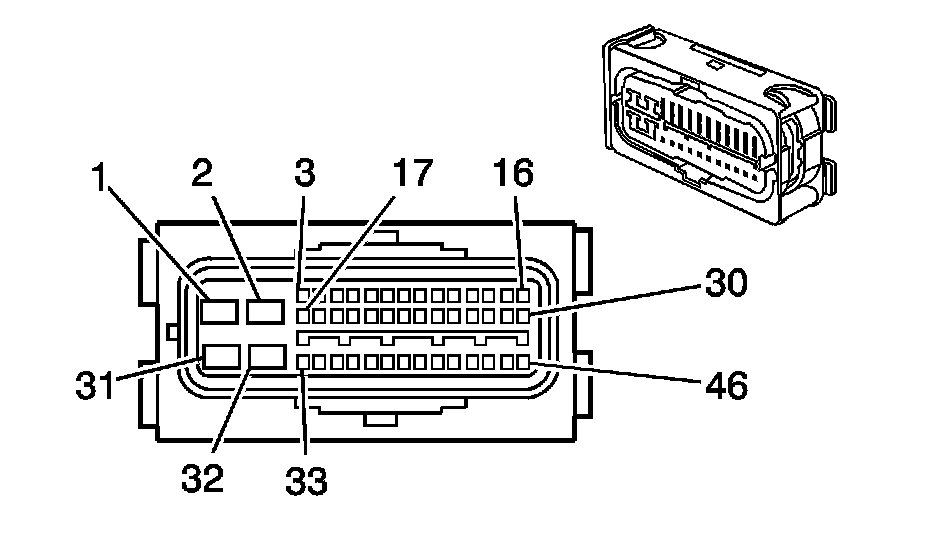

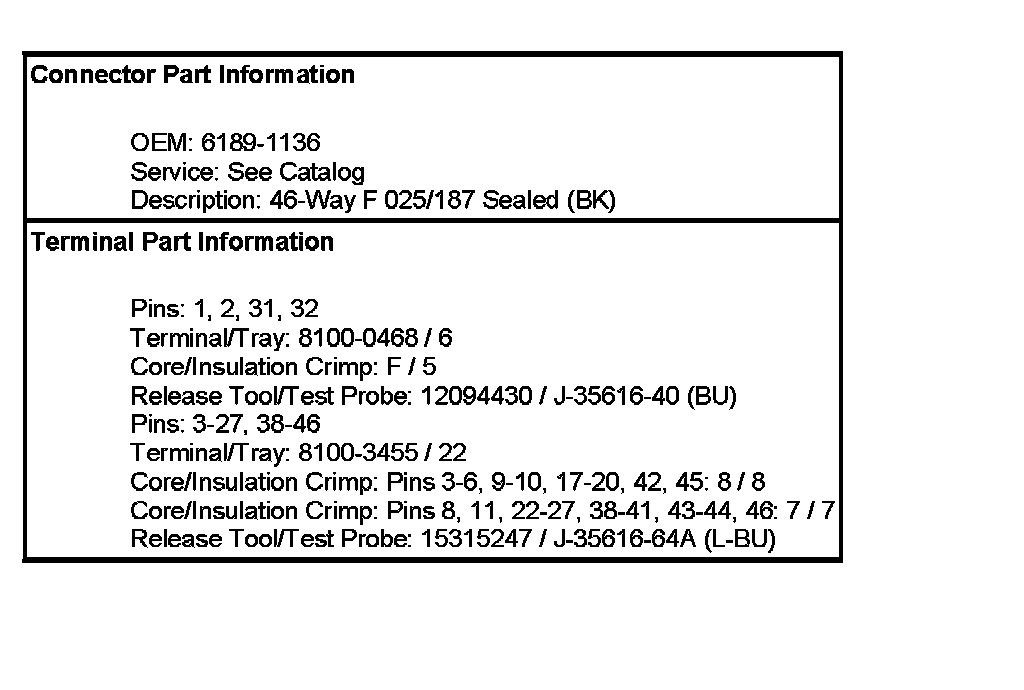

Electronic Brake Control Module (EBCM) C2:
