Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case >> Transfer Case Shift Control Module C3

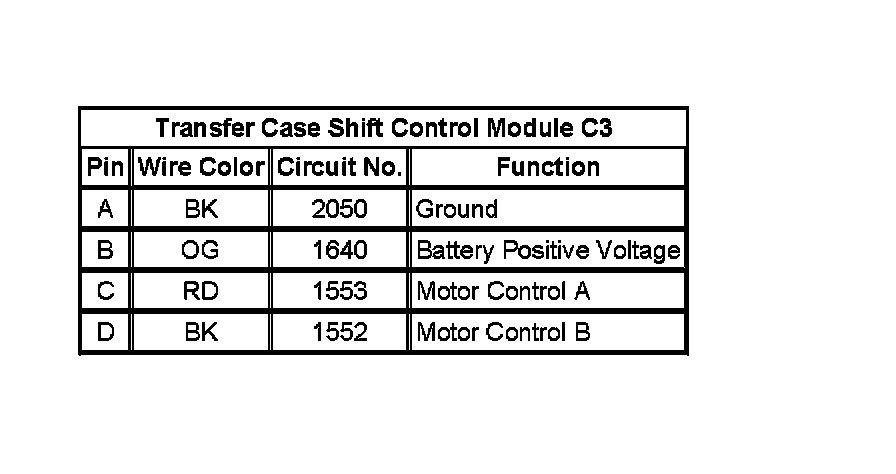

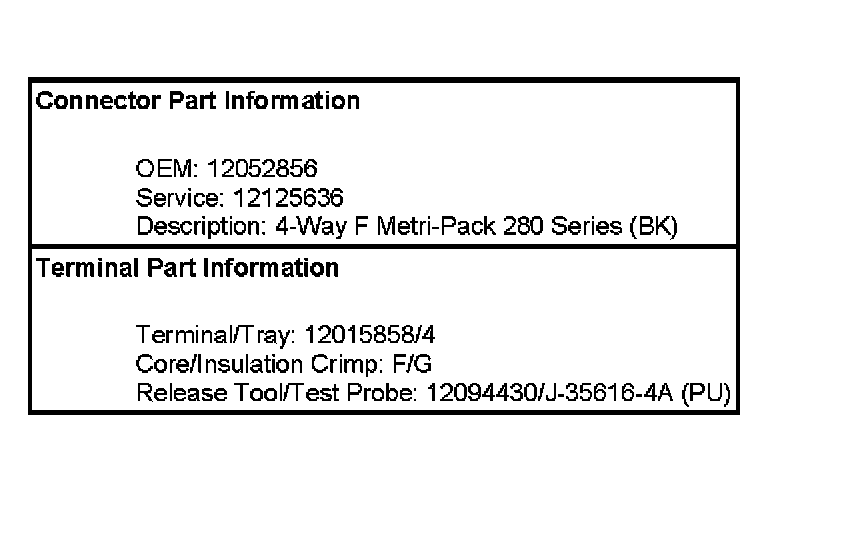

Transfer Case Shift Control Module C3



Transfer Case Shift Control Module C3

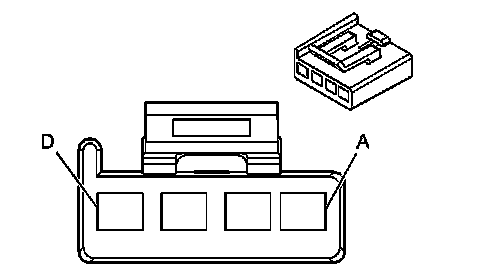

Transfer Case Shift Control Module - C3:







Transfer Case Shift Control Module C3:
