Hummer
>>
2007
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>
Transfer Case Shift Control Module C2
Transfer Case Shift Control Module C2
Transfer Case Shift Control Module C2

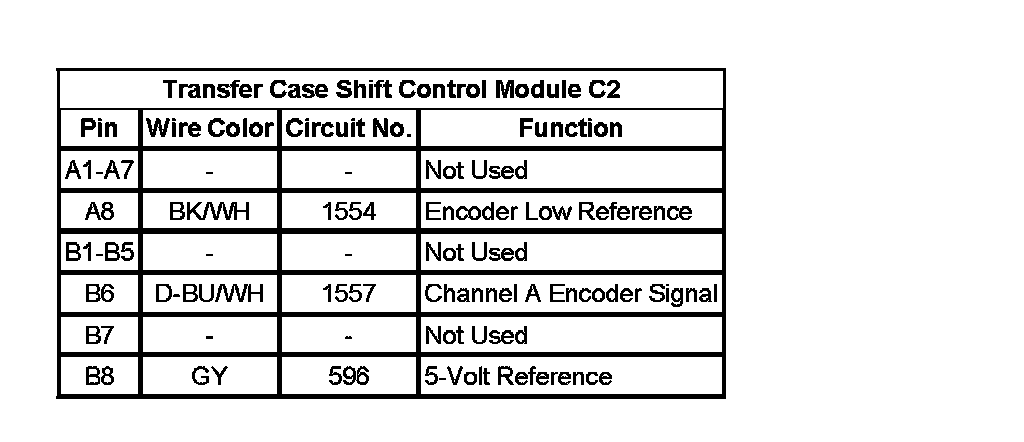

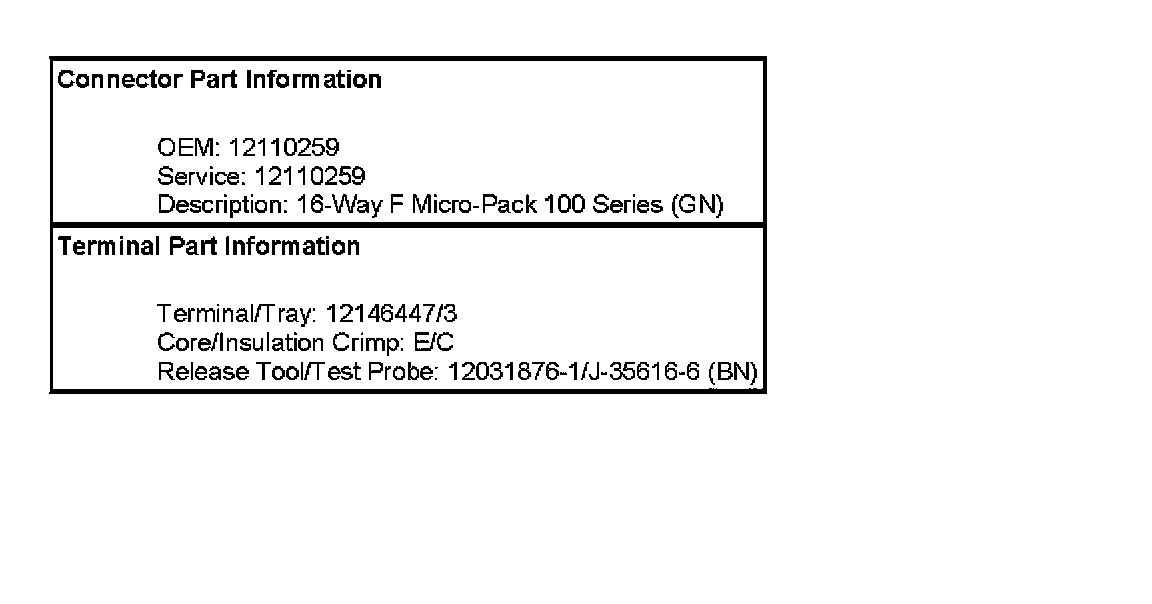

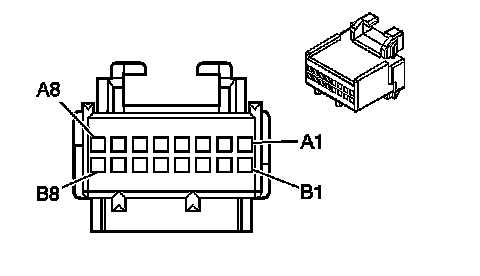

Transfer Case Shift Control Module C2:
