Transfer Case Shift Control Module C1



Transfer Case Shift Control Module C1

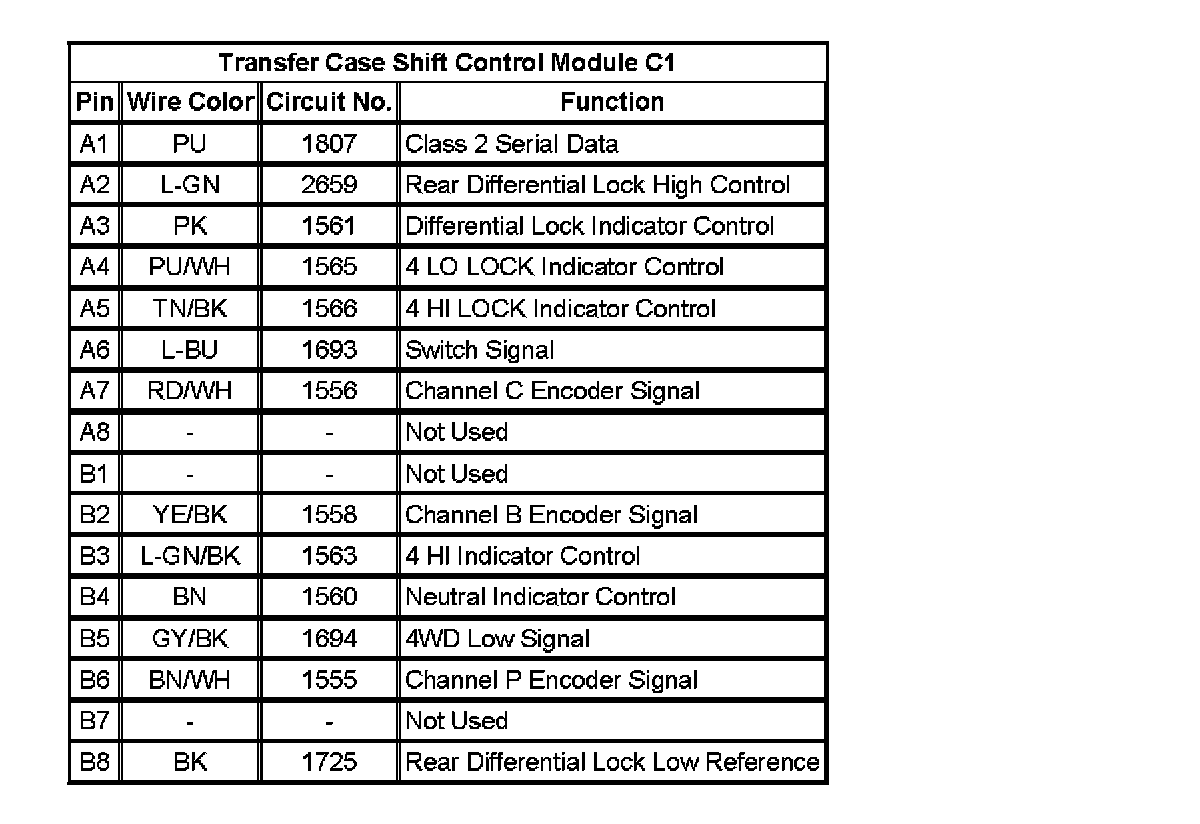

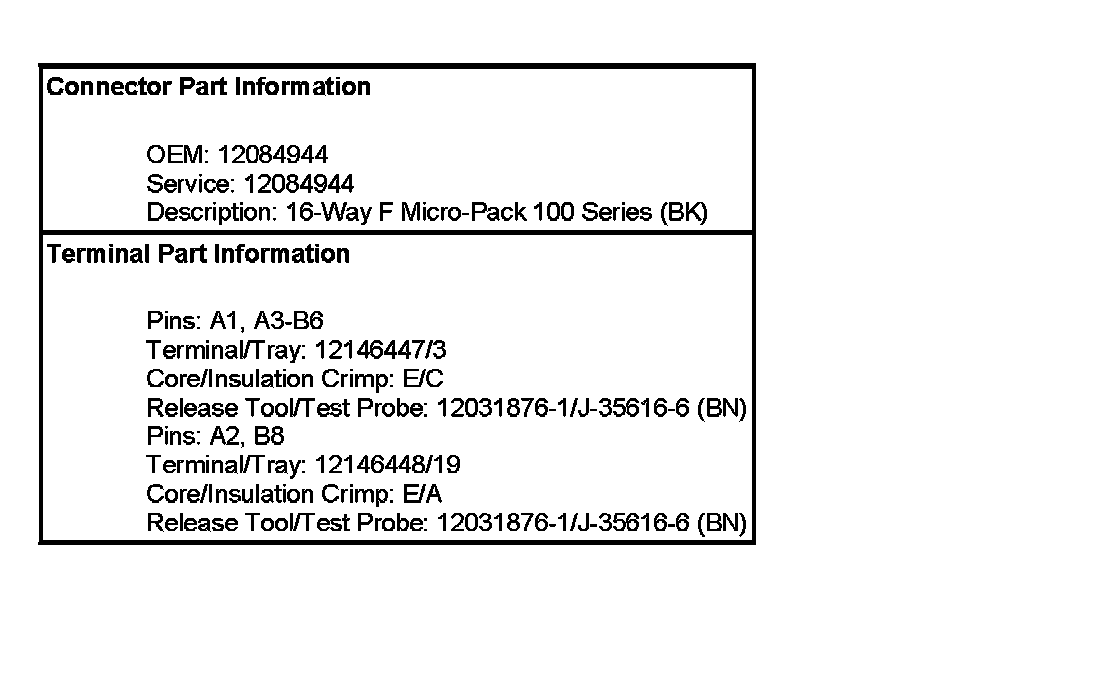

Transfer Case Shift Control Module - C1:

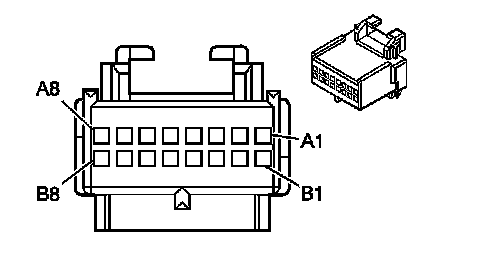

Transfer Case Shift Control Module C1:
