Camshaft Position Sensor

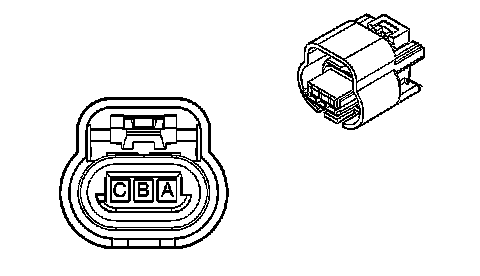

Engine Controls Connector End Views

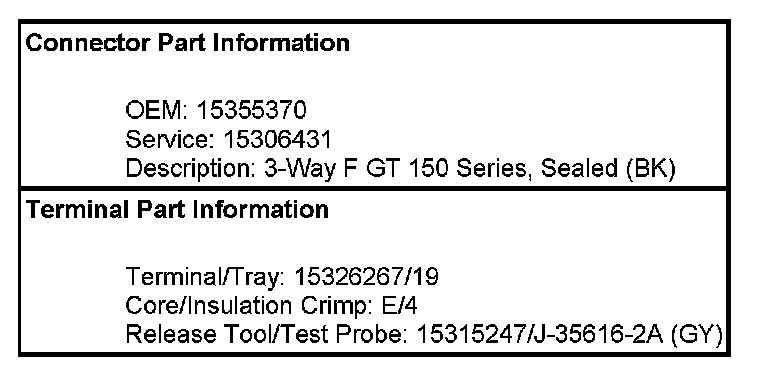

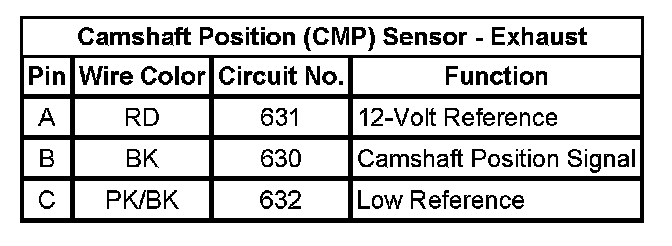

Camshaft Position (CMP) Sensor - Exhaust

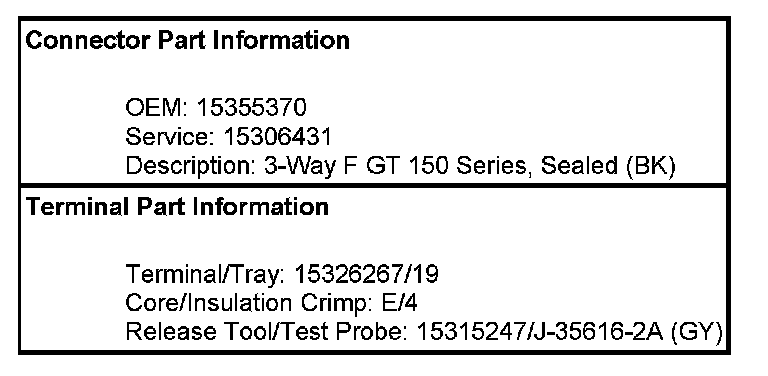

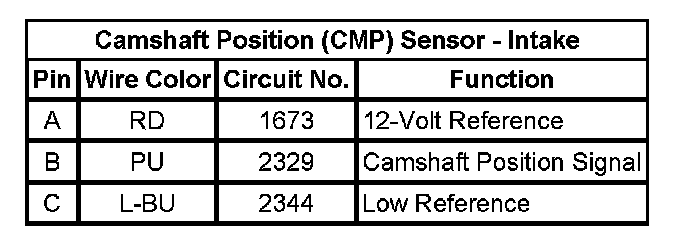

Camshaft Position (CMP) Sensor - Intake
