Air Flow Meter/Sensor

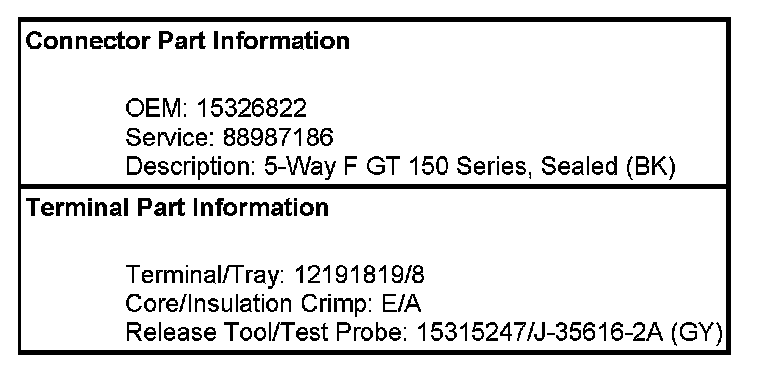

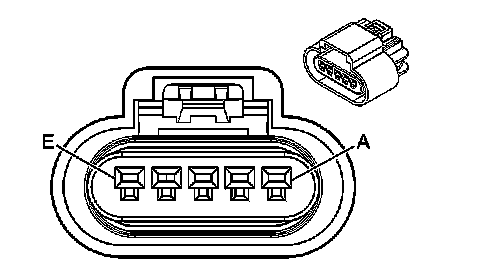

Engine Controls Connector End Views

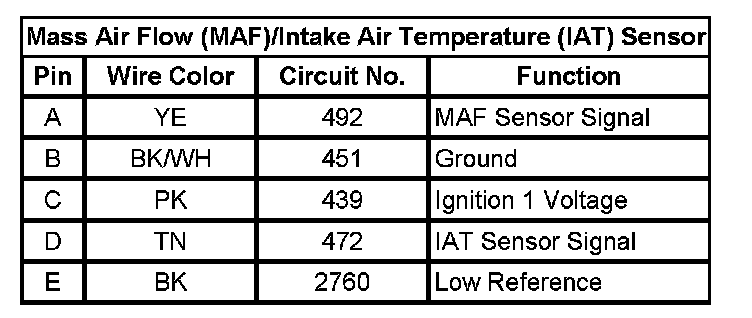

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
